Skymaster ARF F
Skymaster ARF F-18E Instructions Manual

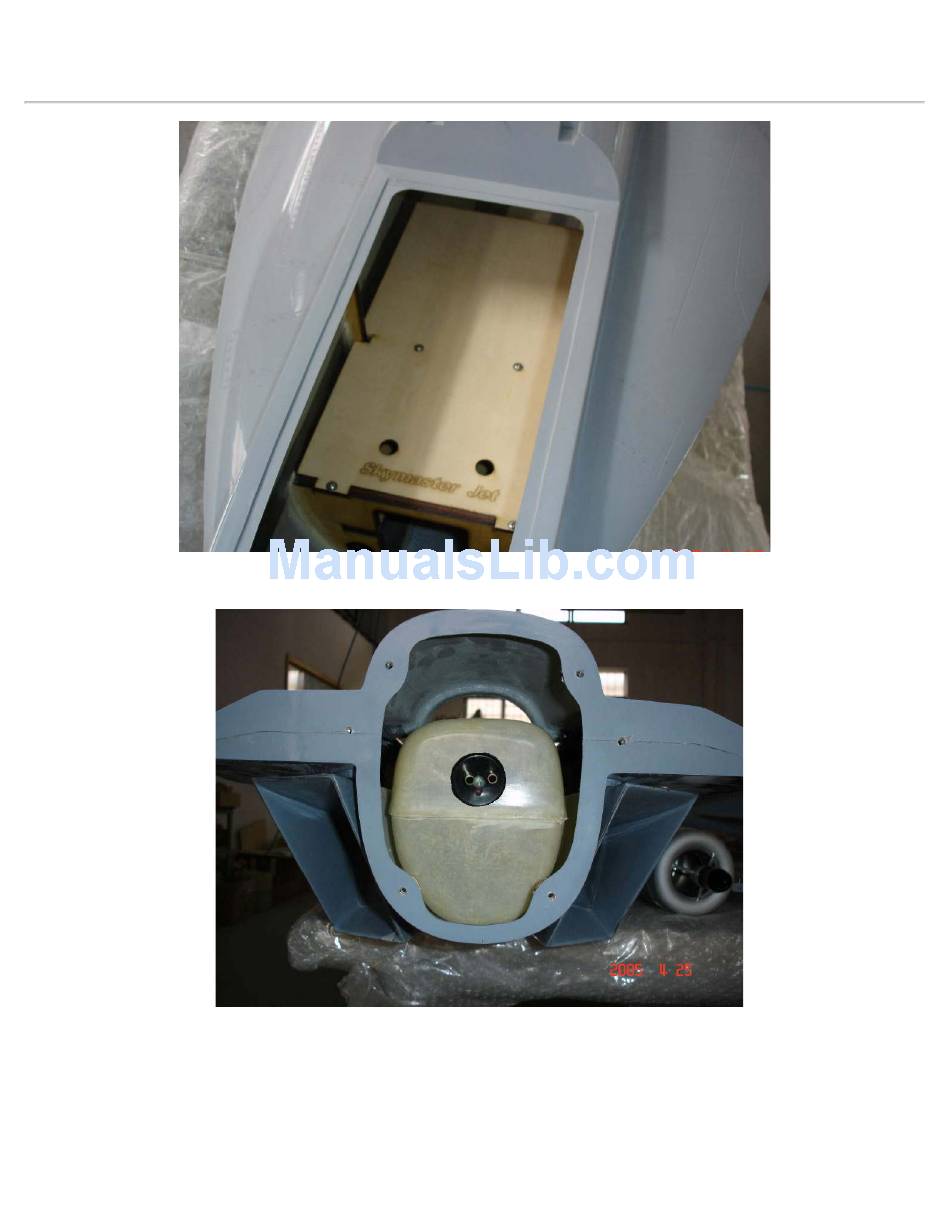

first: Take out the front servos mount,
install front fuel tank before installing nose cone
http://www.skymasterjet.com/arf18e.htm[7/14/2014 4:17:18 PM]

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARF F-18E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Skymaster ARF F-18E

  • Page 1 Skymaster ARF F Skymaster ARF F-18E Instructions Manual first: Take out the front servos mount, install front fuel tank before installing nose cone http://www.skymasterjet.com/arf18e.htm[7/14/2014 4:17:18 PM]...
  • Page 2 Skymaster ARF F connect nose cone to fuselage by 6 screw Take out the 6 screws and Bottom Cover and install the Rudder Fin setup the two screws for both rudder fins When you place the rudder fin in the fuselage, please make sure you use thread lock or a spring washer to set the screw in tightly.
  • Page 3 Skymaster ARF F install two servos for the Elevators We suggest use of the Futaba # 9204. (#9151) or JR # 8425 (#8511 or 8611) servos for the Elevators http://www.skymasterjet.com/arf18e.htm[7/14/2014 4:17:18 PM]...
  • Page 4 Skymaster ARF F  elevator shafts and servo arms must be installed first (make sure that there is a minimal lateral movement) and after which the servos mounts can be installed (included in the kit). connect both push-pull rods for elevator servos control...
  • Page 5 Skymaster ARF F set-up elevator function for up / down movement for each to between 40 mm ~ 45 mm http://www.skymasterjet.com/arf18e.htm[7/14/2014 4:17:18 PM]...
  • Page 6 Skymaster ARF F Glue the 6 Hinges for Ailerons with Flaps Note: Please make sure the servo is secured to the mount. The servo mount base should have enough surface area to hold it. If you only glue the servo mount directly to the wing surface without additional support may cause the whole thing to rip off in extreme conditions.
  • Page 7 Skymaster ARF F install the aileron servos, We suggest use of the JR # 3421servos for the ailerons The new designed Flaps system very simple for set up your wings and no any Rods on out side http://www.skymasterjet.com/arf18e.htm[7/14/2014 4:17:18 PM]...
  • Page 8 Skymaster ARF F If you do not want to use the new Flaps system, you will need to cut the holes for install the Flaps servos that Rods will be on out side. http://www.skymasterjet.com/arf18e.htm[7/14/2014 4:17:18 PM]...
  • Page 9 Skymaster ARF F first: Take out the cross spar for install both Fuel Tanks make the by-pass holes to fasten the dual wall tail pipe The tail flange has two brackets. Mark and drill holes in the brackets so they line-up with the holes in the right / left by-pass holes.
  • Page 10 Skymaster ARF F setup the front servo and make two piano wires control to the nose gear http://www.skymasterjet.com/arf18e.htm[7/14/2014 4:17:18 PM]...
  • Page 11 Skymaster ARF F install the retracts control servo with break control servo, install two (2) valves for jet engine with the fuel pump http://www.skymasterjet.com/arf18e.htm[7/14/2014 4:17:18 PM]...
  • Page 12 Skymaster ARF F set-up ailerons function for up / down movement for each to between 12 mm ~ 16 mm set-up elevator function for up / down movement for each to between 40 mm ~ 45 mm http://www.skymasterjet.com/arf18e.htm[7/14/2014 4:17:18 PM]...
  • Page 13 Skymaster ARF F set-up Flaps function for down movement 20mm~ 25mm for Talk off http://www.skymasterjet.com/arf18e.htm[7/14/2014 4:17:18 PM]...
  • Page 14 Skymaster ARF F set-up Flaps function for down movement 55-60mm for Landing install two batteries into nose cone for CG balance We suggest the C/G 140~160 mm measured from the leading edge, The most forward point of the wing (without Fuel and Gear Down)
