KTI Networks KGS-0800-4HP User Manual

8-Port GbE Switch with 4 PoE+ PSE Ports
User's Manual
Doc.161003B
1. Product Overview
The switch is an 8-port 10/100/1000Mbps unmanaged Ethernet switch with 4 PoE+ PSE
ports. It is designed to enhance network performance in a compact form factor. The switch
can also be rack-mounted with help of rack mounting brackets provided with the switch.
The switch comes with 8 10/100/1000Mbps ports, offering solutions for accelerating
bandwidth needs for small Ethernet workgroups. The switch uses store and forward
packet-switching technology, which offers reliable data transfer and supports automatic
MDI/MDI-X detection & auto-crossover on all ports which eliminates the need for cross over
cables or dedicated uplink ports. Any port can simply connect a server or a switch, using
the standard straight-through twisted-pair cable. The switch also supports 4 PoE+ ports that
can be used to power up PoE enabled devices. This switch is ideal for network connectivity
for the SOHO/SME environment.
2. Product Features
● 8 RJ-45 Ports to support 10BaseT, 100BaseTX and 1000BaseT connectivity
● Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3af/at standards
● Supports IEEE802.3 auto-negotiation protocol
● Supports IEEE802.3x flow control for full duplex
● Supports auto MDI/MDI-X crossover
● Supports wire speed packet filtering and forwarding rate
● Supports store-and-forward switching architecture
● Link/ACT LED for each port & PoE LED for PoE ports
3. System Requirements
The following system requirements are recommended:
● Network card for each PC or Server
● Network cables Cat.5 for 1000Mbps

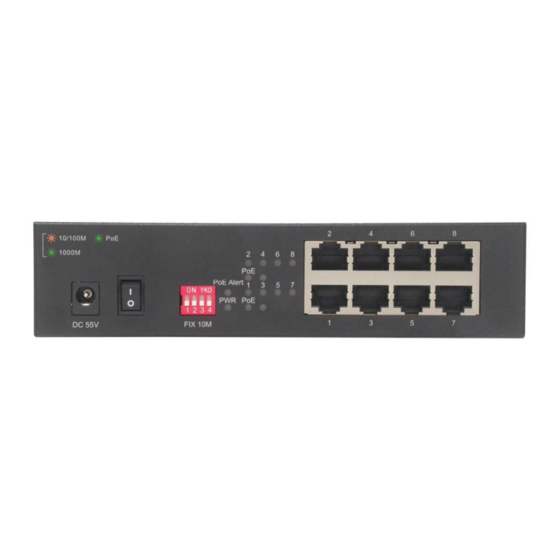

4. Front View
The DIP Switch configuration for supporting 10Mbps transmission with PoE up to 180
meters. Please note, after turning ON the DIP switch you have to reboot the switch.
