5-Port GbE Switch with 1 GbE SFP
User's Guide
1. Features
● Provides four tri-speed copper ports and one 1000M SFP
● All copper ports support auto-negotiation and auto-MDI/MDI-X detection
● Supports 802.3x flow control for full-duplex and backpressure for half-duplex
● Supports IEEE802.3az Energy Efficient Ethernet (EEE)
● Supports jumbo frame length of 9216 bytes at full wire speed forwarding
● Supports link-up cable length power saving and link-down power saving
2. LED Indicator
Power
‧Green (ON): Power is on
‧Green (OFF): Power is off
LAN Port 1~4
‧Green (ON): indicate the port is operating at 1000Mbps
‧Green (Blink): indicate the activity is occurring
‧Orange (ON): indicate the port is operating at 10/100Mbps
‧Orange (Blink): indicate the activity is occurring
SFP
‧Green (ON): indicate the port is operating
‧Green (Blink): indicate the activity is occurring

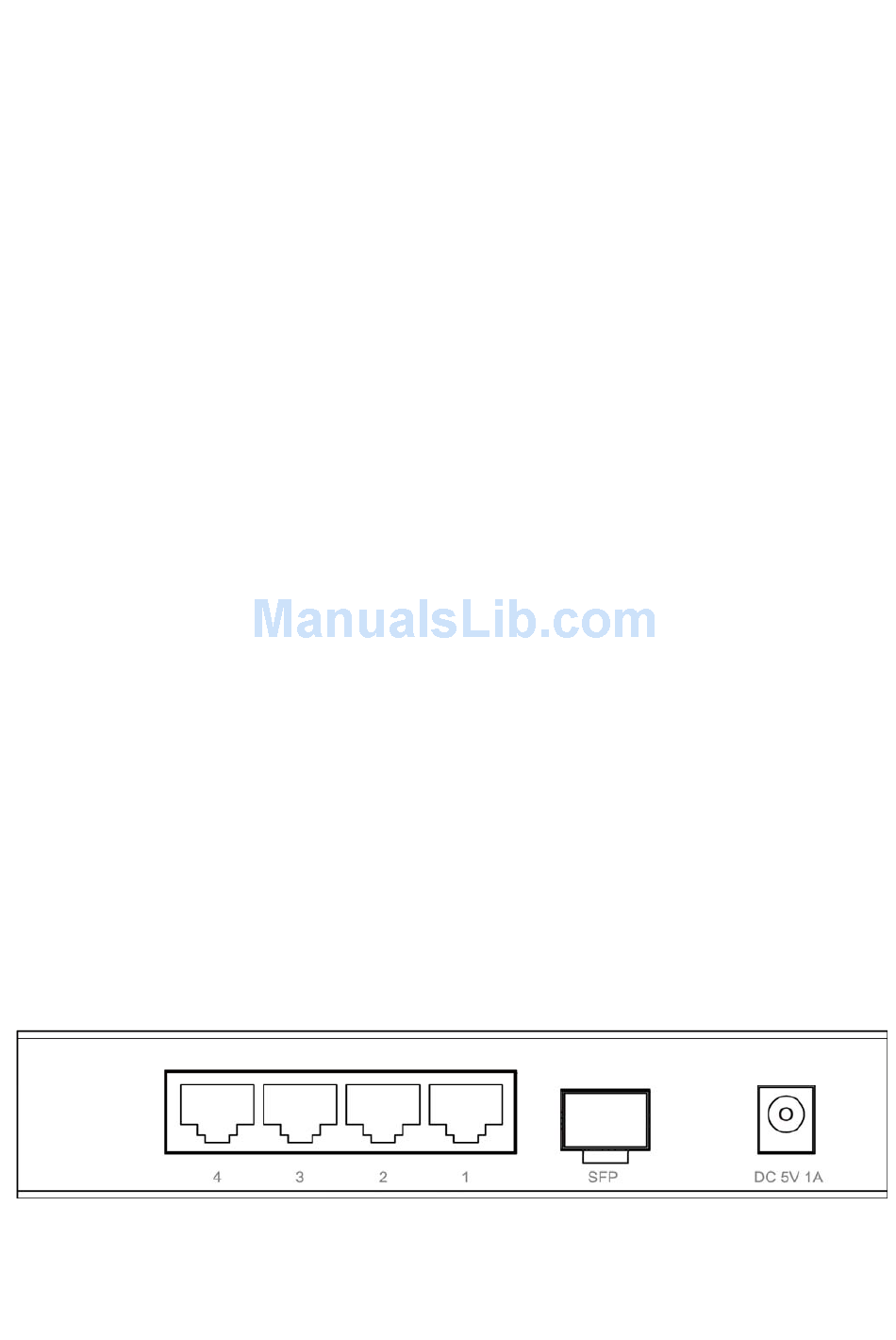

3. Back Panel
1
Advertisement
Related Manuals for KTI Networks KGS-0500
Summary of Contents for KTI Networks KGS-0500
-
Page 1: Led Indicator
5-Port GbE Switch with 1 GbE SFP User’s Guide 1. Features ● Provides four tri-speed copper ports and one 1000M SFP ● All copper ports support auto-negotiation and auto-MDI/MDI-X detection ● Supports 802.3x flow control for full-duplex and backpressure for half-duplex ●... -
Page 2: Technical Specifications
4. Application 5. Technical Specifications Hardware IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX Standard IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x Flow Control Network Ports 4 10/100/1000Mbps Gigabit copper ports: Shielded RJ-45, auto-negotiation, auto-MDI/MDI-X support 1 1000Mbps Gigabit fiber SFP port: SFP supports standard SFP fiber transceiver installation 10/100/1000Mbps Copper: Cat.
