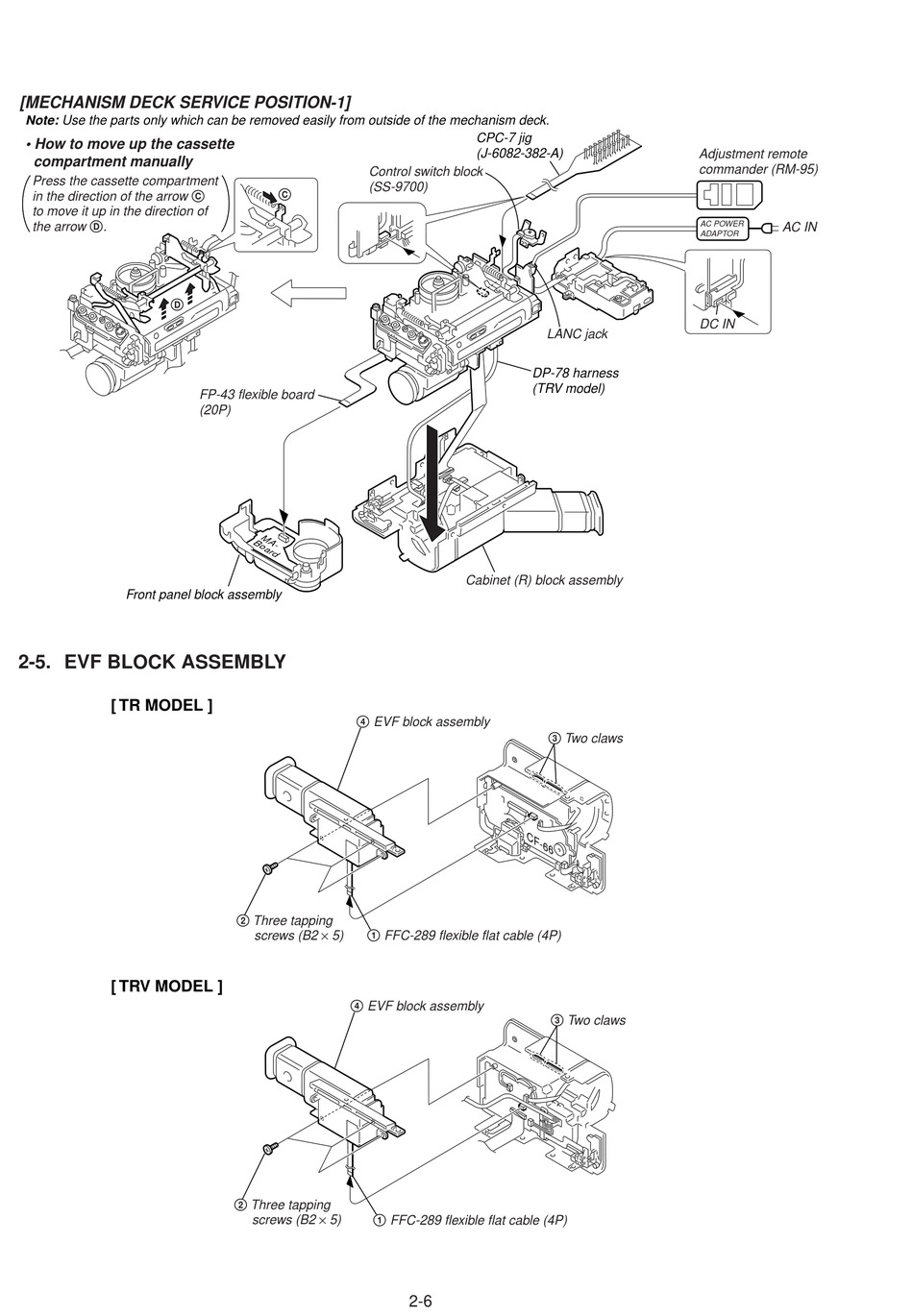

[MECHANISM DECK SERVICE POSITION-1]

Note: Use the parts only which can be removed easily from outside of the mechanism deck.
• How to move up the cassette
compartment manually
Press the cassette compartment
in the direction of the arrow C
to move it up in the direction of
the arrow D .
D
Front panel block assembly

2-5. EVF BLOCK ASSEMBLY

[ TR MODEL ]
[ TRV MODEL ]
Control switch block
(SS-9700)
C
FP-43 flexible board
(20P)
4 EVF block assembly
2 Three tapping
screws (B2 × 5)
1 FFC-289 flexible flat cable (4P)
4 EVF block assembly
2 Three tapping
screws (B2 × 5)
CPC-7 jig
(J-6082-382-A)
DP-78 harness
(TRV model)
Cabinet (R) block assembly
1 FFC-289 flexible flat cable (4P)
2-6
Adjustment remote
commander (RM-95)
AC POWER
ADAPTOR
DC IN
LANC jack
3 Two claws
3 Two claws
AC IN
