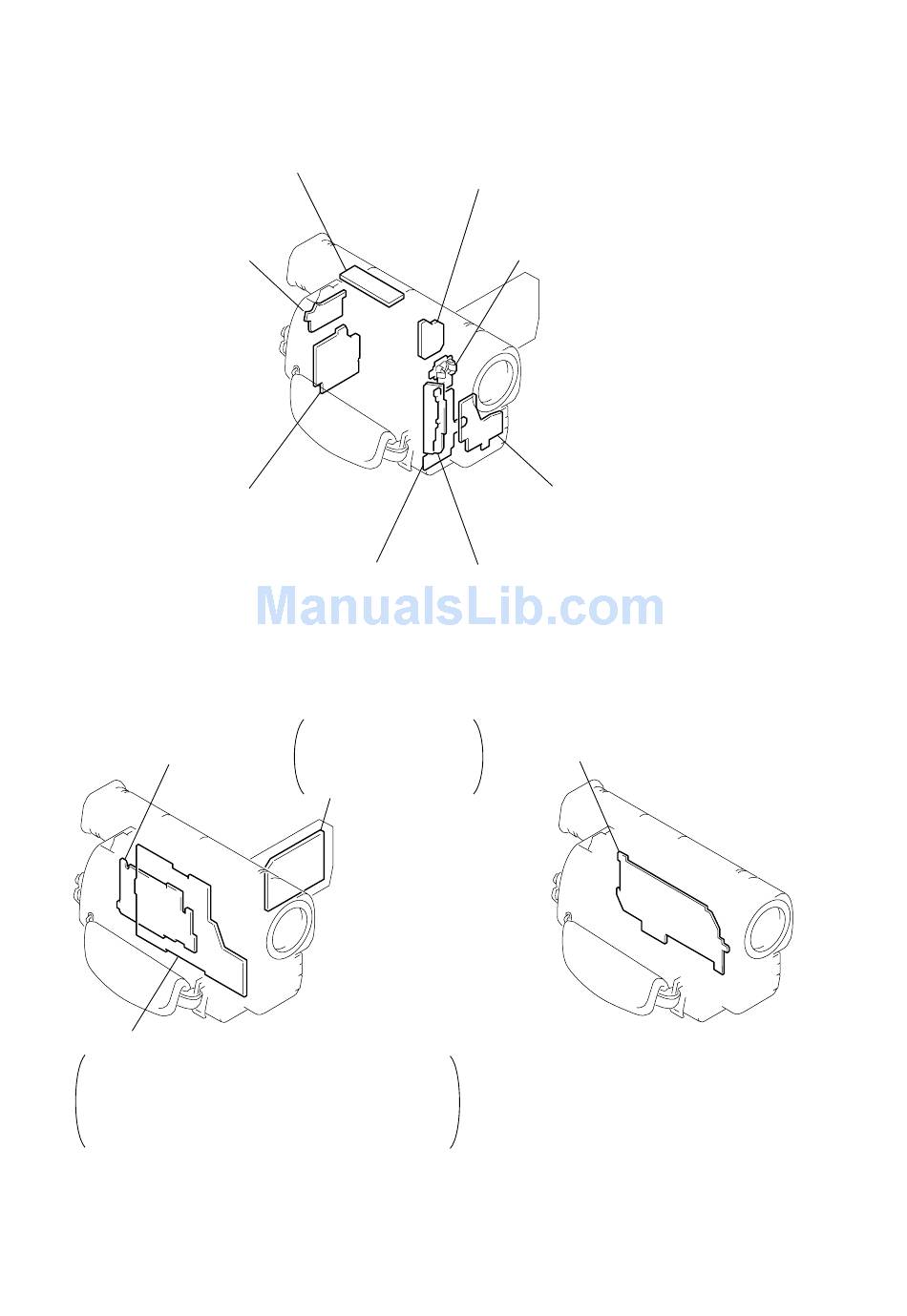

2-14.CIRCUIT BOARDS LOCATION

EJ-29 (TR model)
EJ-30 (TRV model)
(LANC CONNECTOR)
CF-67 (TRV model)
(USER CONTROL)
VC-234
CAMERA PROCESSOR, Y/C PROCESSOR,
MEMORY, FOCUS/ZOOM MOTOR DRIVE,
REC/PB HEAD AMP, LINE IN/OUT,
IR TRANSMITTER, EVR D/A, MODE CONTROL,
SERVO, HI CONTROL, AUDIO, DC IN
VF-129 (B/W EVF)
DD-134
(DC/DC CONVERTER)
SE-100 (TR steady shot model)
SE-101 (TRV model)
(STEADY SHOT)
PD-117 (TRV model)
RGB LCD DRIVER,
TIMING GENERATOR,
CG LCD DRIVER,
BACK LIGHT
CD-239 (TR model)
CD-240 (TRV model)
(CCD IMAGER)
VL-28 (TR video light model)
VL-29 (TRV video light model)
(VIDEO LIGHT)
MA-374 (TR model)
MA-375 (TRV model)
(MIC AMP, LASER LINK)
PJ-99 (TR model)
PJ-100 (TRV model)
(AV IN/OUT)
CF-66 (TR model)
(USER CONTROL)
2-14
