CCD-TR317E/TR417E/TR427E/TR617E/TR717E/TR918E/
TRV37E/TRV47E/TRV48E/TRV57E/TRV67E/TRV87E

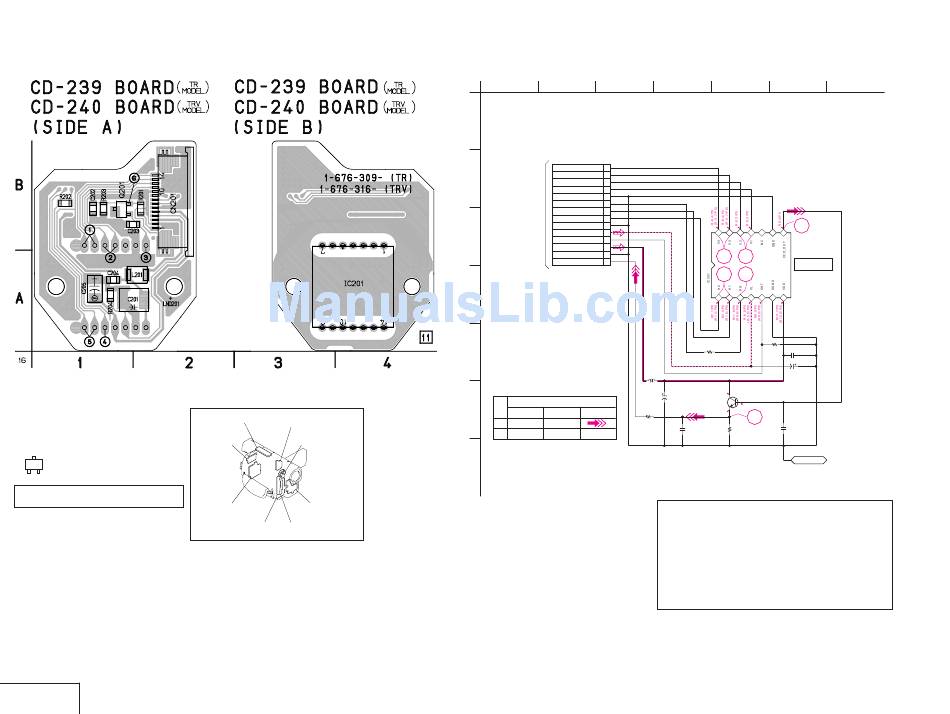

CD-239/240 (CCD IMAGER) PRINTED WIRING BOARD
— Ref. No. CD-239/240 Board; 2,000 Series —
For printed wiring board
• Refer to page 4-91 for location.
• Chip parts
Transistor
C
B E
There are few cases that the part printed on this
diagram isn't mounted in this model.
CCD IMAGER
CD-239/240
CD-239 (TR model)
VF-129 (B/W EVF)
CD-240 (TRV model)
(CCD IMAGER)
EJ-29 (TR model) VL-28 (TR video light model)
EJ-30 (TRV model) VL-29 (TRV video light model)
(LANC CONNECTOR) (VIDEO LIGHT)
MA-374 (TR model)
DD-134
MA-375 (TRV model)
(DC/DC CONVERTER)
(MIC AMP, LASER LINK)
SE-100 (TR steady shot model) PJ-99 (TR model)
SE-101 (TRV model) PJ-100 (TRV model)
(STEADY SHOT) (AV IN/OUT)
4-7
For Schematic Diagram
• Refer to page 4-87 for waveforms.
2 3
1
NO MARK:REC/PB MODE
CD-239 BOARD (TR MODEL)
( ) :REC/PB MODE (1/4(A) CCD MODEL)
CD-240 BOARD
R :REC MODE
(TRV MODEL)
A
P :PB MODE
CCD IMAGER
-REF.NO.:2000 SERIES-
XX MARK:NO MOUNT
CN201 14P
V4 14
V3 13
B
V2 12
V1 11
GND 10
RG 9
TO
VC-234 BOARD
H1 8
CN501
(SEE PAGE H2 7
4-9)
GND 6
CAM_-7.0V/-5.0V 5
C
VSHT 4
CAM_15V/12V 3
GND 2
CCD OUT 1
D
E
L201
SIGNAL PATH
100uH
2520
VIDEO SIGNAL
F
CHROMA Y Y/CHROMA
R201
REC
10
PB
TR MODEL : CCD-TR317E/TR417E/TR427E/TR617E/TR717E/TR918E
TRV MODEL : CCD-TRV37E/TRV47E/TRV48E/TRV57E/TRV67E/TRV87E
G
1/6 CCD MODEL : CCD-TR317E/TR417E/TR427E/TRV37E/TRV47E/TRV48E
1/4(A) CCD MODEL : CCD-TR617E/TR717E/TRV57E/TRV67E/TRV87E
1/4(B) CCD MODEL : CCD-TR918E
SUPER NIGHT SHOT MODEL : CCD-TR918E/TRV87E
16
4 5 6
IC201
ICX097AKA-43 : 1/6 CCD MODEL
ICX233AK-43 : 1/4(A) CCD MODEL(EXCEPT TRV87E)
MN37242FH-SY : SUPER NIGHT SHOT MODEL(TR918E)
ICX2310AK-43 : SUPER NIGHT SHOT MODEL(TRV87E)
3
1 2 3 4 5 6 7
1 2
IC201
5 4
CCD IMAGER
14 13 12 11 10 9 8
C204
R204
0.1u F
XX
R202
100
C205
4.7u
10V
A
TA
Q201
R14.7/P0
C201
2SC4178-F13F14-T1
4.7u
BUFFER
20V
B
R9.4/P0
TA
R8.7/P0
6
C202 C203
R203
XX 10k XX
LND201
Precautions Upon Replacing CCD imager
• The CD-239/240 board mounted as a repair part is not equipped
with a CCD imager.
When replacing this board, remove the CCD imager from the
old one and mount it onto the new one.
• If the CCD imager has been replaced, carry out all the
adjustments for the camera section.
• As the CCD imager may be damaged by static electricity from
its structure, handle it carefully like for the MOS IC.
In addition, ensure that the receiver is not covered with dusts
nor exposed to strong light.
4-8
7
