3. IR Audio Deviation Adjustment (VC-234 board)
Mode
VTR recording
Signal
Audio signal :
400Hz, –7.5dBs : L or R of AUDIO
Video signal :
No signal : VIDEO terminal
Measurement Point
AUDIO L terminal and AUDIO R
terminal of IR receiver jig
(Terminated at 47kΩ)
Measuring Instrument
Audio level meter
Adjustment Page
F
Adjustment Address
7F
Specified Value
Signal level: –7.5 ± 2.0 dBs
Level difference of L and R: Below 2dB
Connection of Equipment
Connect the measuring device as shown in the following figure,
and adjust.
Adjusting method:
1)
Select page: 0, address: 01, and set data: 01.
2)
Connect the audio level meter to the AUDIO L terminal of the
IR receiver jig.
3)
Select page: F, address: 7F, change the data and set the 400Hz
audio signal level to the specified value.
4)
Press the PAUSE button of the adjustment remote commander.
5)
Connect the audio level meter to the AUDIO R terminal of the
IR receiver jig.
6)
Check that the 400Hz audio signal level is within the specified
value. If outside, repeat from step 2).
7)
Select page: 0, address: 01, and set data: 00.
Audio oscillator
Attenuator
terminal
Ω
600
Ω
Ω
600
(270
(1-249-410-11) + 330
Main unit
Video
L
Audio
R
Ω
(1-249-411-11))

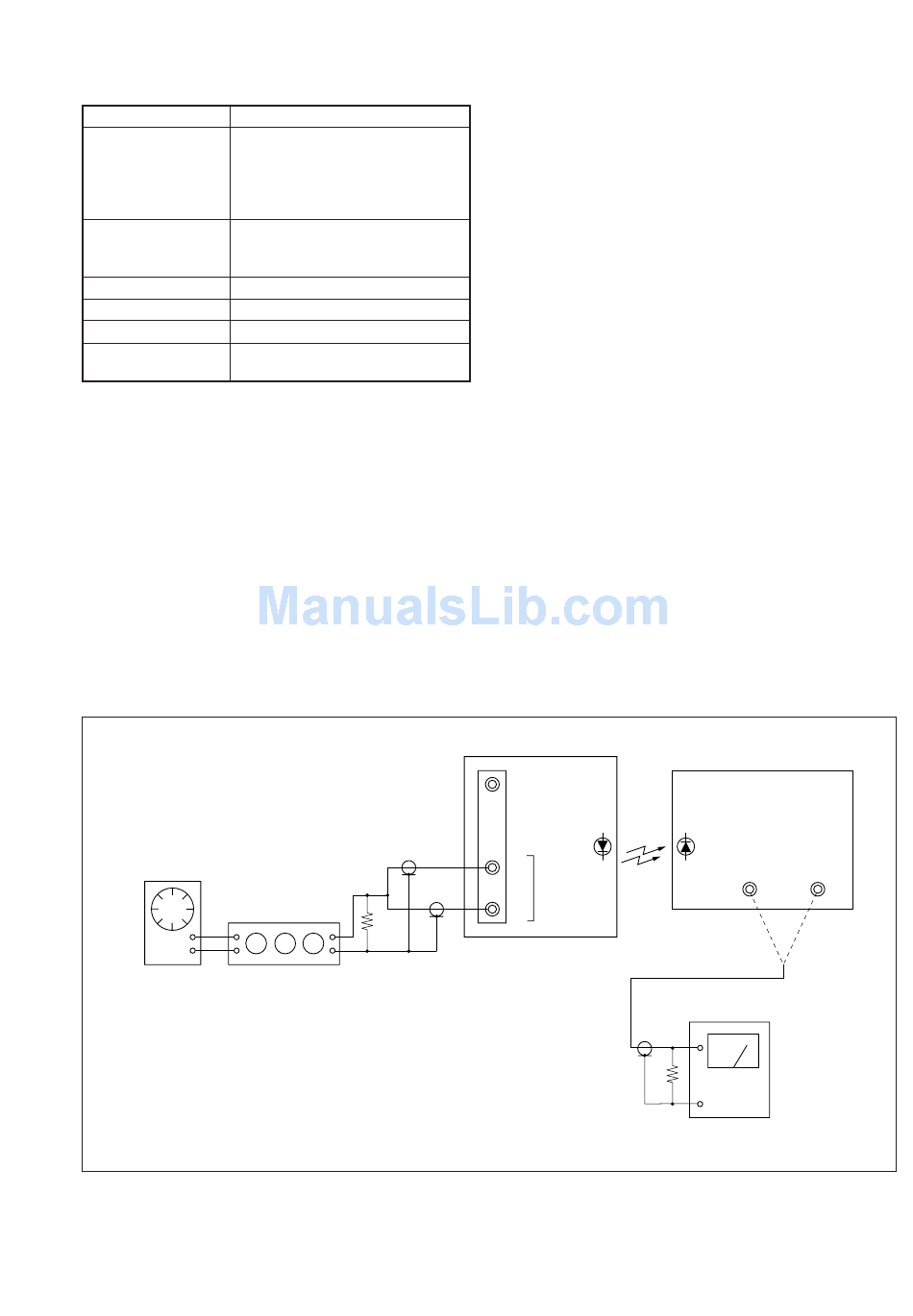

Fig. 5-3-17.
5-47
IR receiver jig
AUDIO OUT
L
R
Audio level meter
Ω
47k
Ω
47k
(1-249-437-11)
