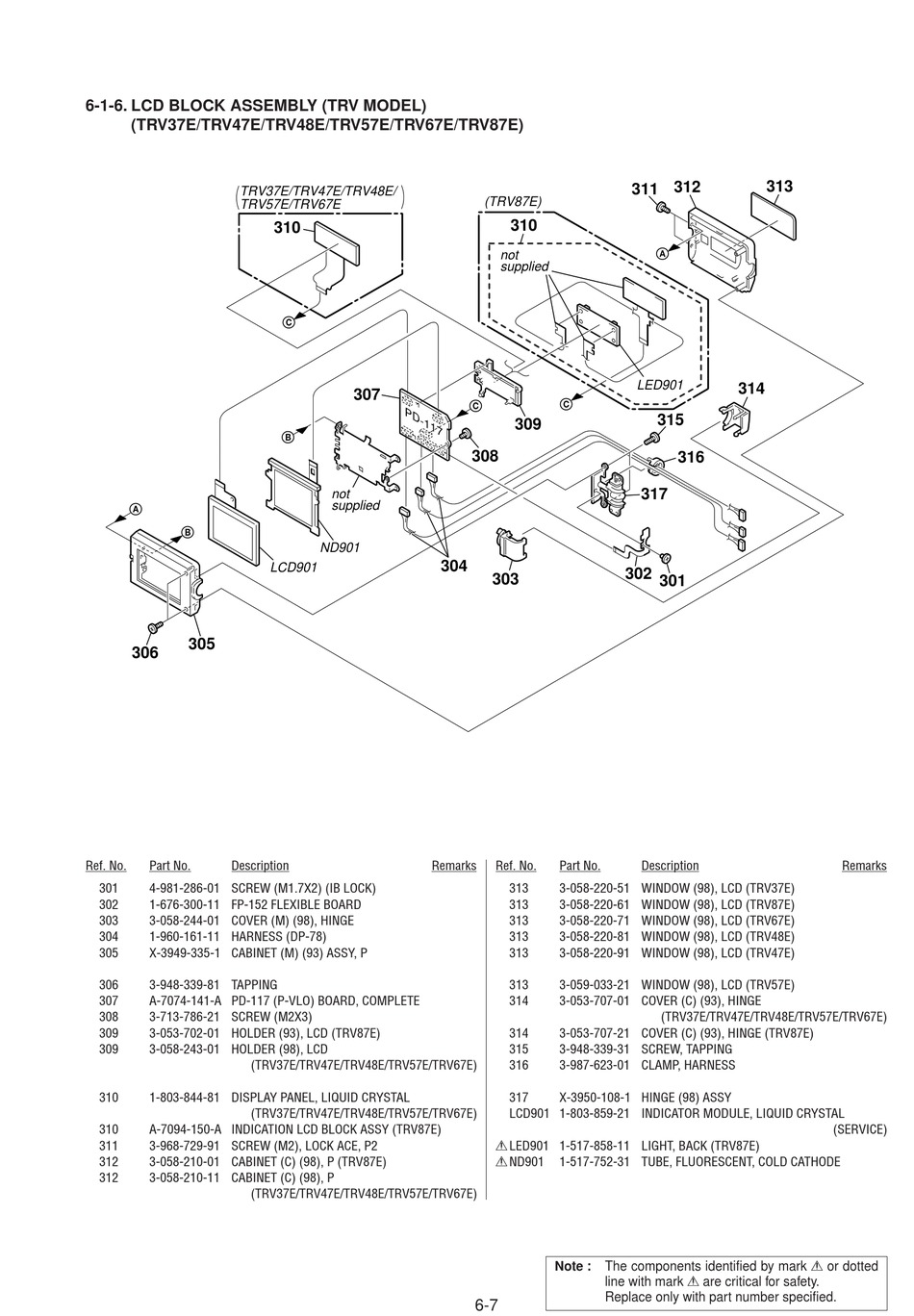

6-1-6. LCD BLOCK ASSEMBLY (TRV MODEL)
(TRV37E/TRV47E/TRV48E/TRV57E/TRV67E/TRV87E)
TRV37E/TRV47E/TRV48E/
TRV57E/TRV67E
A
B
305
306
Ref. No. Part No. Description
301 4-981-286-01 SCREW (M1.7X2) (IB LOCK)
302 1-676-300-11 FP-152 FLEXIBLE BOARD
303 3-058-244-01 COVER (M) (98), HINGE
304 1-960-161-11 HARNESS (DP-78)
305 X-3949-335-1 CABINET (M) (93) ASSY, P
306 3-948-339-81 TAPPING
307 A-7074-141-A PD-117 (P-VLO) BOARD, COMPLETE
308 3-713-786-21 SCREW (M2X3)
309 3-053-702-01 HOLDER (93), LCD (TRV87E)
309 3-058-243-01 HOLDER (98), LCD
(TRV37E/TRV47E/TRV48E/TRV57E/TRV67E)
310 1-803-844-81 DISPLAY PANEL, LIQUID CRYSTAL
(TRV37E/TRV47E/TRV48E/TRV57E/TRV67E)
310 A-7094-150-A INDICATION LCD BLOCK ASSY (TRV87E)
311 3-968-729-91 SCREW (M2), LOCK ACE, P2
312 3-058-210-01 CABINET (C) (98), P (TRV87E)
312 3-058-210-11 CABINET (C) (98), P
(TRV37E/TRV47E/TRV48E/TRV57E/TRV67E)
310
C
307
P D
- 1
1 7
B
not
supplied
ND901
304
LCD901
Remarks
311 312

(TRV87E)

310
not
supplied
LED901
C
C
309
308
317
302
303
Ref. No. Part No. Description
313 3-058-220-51 WINDOW (98), LCD (TRV37E)
313 3-058-220-61 WINDOW (98), LCD (TRV87E)
313 3-058-220-71 WINDOW (98), LCD (TRV67E)
313 3-058-220-81 WINDOW (98), LCD (TRV48E)
313 3-058-220-91 WINDOW (98), LCD (TRV47E)
313 3-059-033-21 WINDOW (98), LCD (TRV57E)
314 3-053-707-01 COVER (C) (93), HINGE
314 3-053-707-21 COVER (C) (93), HINGE (TRV87E)
315 3-948-339-31 SCREW, TAPPING
316 3-987-623-01 CLAMP, HARNESS
317 X-3950-108-1 HINGE (98) ASSY
LCD901 1-803-859-21 INDICATOR MODULE, LIQUID CRYSTAL
0 LED901 1-517-858-11 LIGHT, BACK (TRV87E)
0 ND901 1-517-752-31 TUBE, FLUORESCENT, COLD CATHODE
The components identified by mark 0 or dotted
Note :
line with mark 0 are critical for safety.
Replace only with part number specified.
6-7
313
A
314
315
316
301
(TRV37E/TRV47E/TRV48E/TRV57E/TRV67E)
Remarks
(SERVICE)
