CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716
CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/
SERVICE MANUAL
Ver 1.0 1999.01
B MECHANISM
Video camera recorder
System
Video recording system
2 Rotary heads
Helical scanning FM system
Audio recording system
Rotary heads, FM system
Video signal
NTSC color, EIA standards
Usable cassette
8mm video format cassette
CCD-TR315/TR416/TR416PK
CCD-TRV16/TRV16PK
: standard 8
CCD-TR516/TR516PK/TR716
CCD-TRV36/TRV36PK/TRV43/TRV46/
TRV46PK : Hi8
Recording / Playback time
(using 120 min. cassette)
SP mode: 2 hours
LP mode: 4 hours
Fastforward/rewind time
(using 120 min. cassette)
Approx. 5 min.
Image device
1/4 inch CCD (Charge Coupled Device)
CCD-TR315/TR416/TR416PK/TR516/
TR516PK
CCD-TRV16/TRV16PK/TRV36/
TRV36PK : Approx. 270,000 pixels
(Effective : approx 250,000 pixels)
MICROFILM
SPECIFICATIONS
CCD-TR716
CCD-TRV34/TRV46/TRV46PK :
Approx. 320,000 pixels
(Effective : approx 200,000 pixels)
Viewfinder
Electronic viewfinder
CCD-TR315/TRV series : Monochrome
CCD-TR416/TR416PK/TR516/
TR516PK/TR716 : Color
Lens
Combined power zoom lens
Filter diameter 1 7/16 in. (37 mm)
CCD-TR315/TR416:US,CND
CCD-TRV16/TRV16PK
: 18 x (Optical), 180 x (Digital)
CCD-TR416:BR/TR416PK
: 18 x (Optical), 220 x (Digital)
CCD-TR516/TR516PK/TR716
CCD-TRV36/TRV36PK/TRV43/TRV46/
TRV46PK
: 18 x (Optical), 330 x (Digital)
Focal distance
3/16 - 8 in. (4.1 - 37.8 mm)
When converted to a 35 mm still camera
CCD-TR315/TR416/TR416PK/TR516/
TR516PK
CCD-TRV16/TRV16PK/TRV36/
TRV36PK
: 1 9/16 - 28 in. (39.4 - 709 mm)
CCD-TR715
CCD-TRV43/TRV46/TRV46PK
: 1 7/8 - 33 1/2 in. (47.2 - 850 mm)
TRV46/TRV46PK
Photo : CCD-TR516

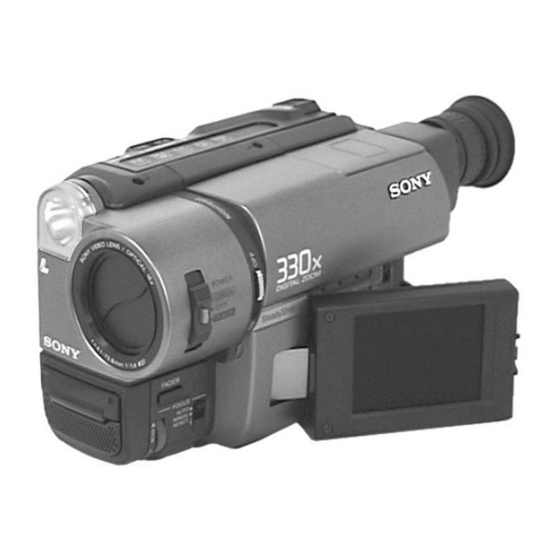

Photo : CCD-TRV46
For MECHANISM ADJUSTMENTS, refer to
the "8mm Video MECHANICAL ADJUSTMENT
MANUAL VII" (9-973-801-11).
Color temperature
Auto
Minimum illumination
0.4 lux at F 1.4
0 lux (in NightShot mode)*
Illumination range
0.4 lux to 100,000 lux
Recommended illumination
More than 100 lux
* Object invisible for the dark can be
shot with infrared lighting.
hVIDEO CAMERA RECORDER
HVIDEO CAMERA RECORDER
CCD-TRV36/TRV36PK/TRV43/TRV46/TRV46PK
RMT-708
US Model
Canadian Model
CCD-TR416/TR516/TR716
CCD-TRV16/TRV36/TRV43/TRV46
E Model
CCD-TR315/TR416PK/TR516PK
CCD-TRV16/TRV16PK/TRV36PK/
TRV46/TRV46PK
Hong Kong Model
CCD-TRV16/TRV46
Taiwan Model
CCD-TRV16
Brazilian Model
CCD-TR315/TR416
CCD-TRV16
NTSC
LCD screen (TRV series only)
2.5 inches measured diagonally
2 x 1 1/2 in.(50.3 x 37.4 mm)
On-screen display
TN LCD/TFT active matrix method
Total dot number
61,380 (279 x 220)
— Continued on next page —
CCD-TR315/TR416/TR416PK
CCD-TRV16/TRV16PK
CCD-TR516/TR516PK/TR716

Advertisement

Table of Contents
loading

Related Manuals for Sony CCD-TR315

Summary of Contents for Sony CCD-TR315

  • Page 1 Helical scanning FM system On-screen display Electronic viewfinder Illumination range TN LCD/TFT active matrix method Audio recording system CCD-TR315/TRV series : Monochrome 0.4 lux to 100,000 lux Rotary heads, FM system Total dot number CCD-TR416/TR416PK/TR516/ Recommended illumination 61,380 (279 x 220)

  • Page 2: Ccd Imager

    CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK 4-2. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS CD-210/211 (CCD IMAGER) PRINTED WIRING BOARD – Ref No. CD-210 BOARD: 4,000 series, CD-211 BOARD: 9,000 series – THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.)
  • Page 3 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK • For schematic diagrams. • Refer to page 4–11 for Printed Wiring Board. VC-215 BOARD (1/10) CAMERA REC 2.3Vp-p NTSC : 28.636 MHz IC501 CAMERA REC 2.3Vp-p NTSC : 14.32 MHz IC501 11 12 CAMERA REC...
  • Page 4 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK • For schematic diagrams. • Refer to page 4–11 for Printed Wiring Board. 4-19 4-20 4-21 4-22 CAMERA (2) VC-215 (2/10)
  • Page 5 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK • For schematic diagrams. VC-215 BOARD (3/10) • Refer to page 4–11 for Printed Wiring Board. CAMERA REC CAMERA REC 0.34Vp-p 3Vp-p IC202 IC202 CAMERA REC CAMERA REC 0.84Vp-p 3.1Vp-p 3.58 MHz IC202 IC202 CAMERA REC CAMERA REC 0.5Vp-p...
  • Page 6 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK • For schematic diagrams. • Refer to page 4–11 for Printed Wiring Board. VC-215 BOARD (4/10) CAMERA REC 0.46Vp-p IC151 0.32Vp-p IC151 IC151 (2.1Vp-p) IC151 (1.6Vp-p) 4-29 4-30 4-27 4-28 IN/OUT VC-215 (4/10)
  • Page 7 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK • For schematic diagrams. VC-215 BOARD (5/10) • Refer to page 4–11 for Printed Wiring Board. CAMERA REC CAMERA REC 0.3Vp-p 7Vp-p 4.12 MHz IC001 Q001 CAMERA REC 0.3Vp-p IC001 TRIG : IC001 0.4Vp-p IC001 0.4Vp-p IC001 0.4Vp-p...

  • Page 8: Servo/System Control

    CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK • For schematic diagrams. • Refer to page 4–11 for Printed Wiring Board. VC-215 BOARD (6/10) CAMERA REC 1.7Vp-p 20 MHz IC402 3Vp-p IC402 3Vp-p IC402 3Vp-p 13usec IC402 3Vp-p 13usec IC402 3Vp-p 13usec IC402 3Vp-p 1.2msec IC402 3Vp-p 2.8msec...
  • Page 9 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK • For schematic diagrams. • Refer to page 4–11 for Printed Wiring Board. VC-215 BOARD (7/10) CAMERA REC 1.2Vp-p 5.6msec IC451 3Vp-p IC451 3Vp-p 2.8msec IC451 4-38 4-39 4-40 SERVO VC-215 (7/10)
  • Page 10 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK • For schematic diagrams. • Refer to page 4–11 for Printed Wiring Board. VC-215 BOARD (8/10) CAMERA REC 2.9Vp-p IC301 0.4Vp-p IC301 CAMERA REC 0.36Vp-p IC301 CAMERA REC 0.26Vp-p 3.58 MHz IC301 4-41 4-42 4-43 4-44...
  • Page 11 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK VL-21/22 (VIDEO LIGHT (VIDEO LIGHT MODEL)) • For schematic diagrams. PRINTED WIRING BOARD – Ref No. VL-21 BOARD: 1,000 series – • Refer to page 4–11 for Printed Wiring Board. VC-215 BOARD (9/10) VL-21/22 BOARD (SIDE B) VL-21/22 BOARD (SIDE A) 0.25Vp-p...

  • Page 12: Mode Control

    CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK • For schematic diagrams. • Refer to page 4–11 for Printed Wiring Board. VC-215 BOARD (10/10) 1.5Vp-p 20 MHz IC604 2.6Vp-p (VIDEO LIGHT MODEL) 32 kHz VL-21/22 BOARD IC604 CN151 (SEE PAGE 4–45) 4-51 4-49 4-50 MODE CONTROL...
  • Page 13 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK SE-80/81 (STEADY SHOT (STEADY SHOT MODEL)) PRINTED WIRING BOARD – Ref No. SE-80 BOARD: 4,000 series, SE-81 BOARD: 9,000 series – SE-80 SE-81BOARD SE-80/81 BOARD (SIDE B) SE-80/81 BOARD (SIDE A) C451 C452 C453 C454 C455 C456 C457...
  • Page 14 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK PJ-90/91 (AV OUT) PRINTED WIRING BOARD – Ref No. PJ-90 BOARD: 4,000 series, PJ-91 BOARD: 9,000 series – PJ-90/91 BOARD (SIDE B) PJ-90/91 BOARD C101 C102 C103 C104 C105 C106 C107 C108 C109 C110 C111 CN101 D101 D102...
  • Page 15 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK 4-61 4-62 4-63 4-64 MIC, LASER LINK MA-345/346...
  • Page 16 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK NO MARK CAMERA REC MODE 4-69 4-70 4-71 CONTROL CF-60 (TR Series)
  • Page 17 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK CONTROL 4-72 4-73 4-74 CF-61 (TRV Series)
  • Page 18 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK PD-107 (RGB DECODER, LCD DRIVE, BACK LIGHT, LCD (TRV Series)) PRINTED WIRING BOARD – Ref No. PD-107 BOARD: 10,000 series – PD-107 BOARD C5501 B-10 FB5502 R5608 C-10 R5695 R5696 D-10 C5502 B-10 FB5503 R5610 B-10 PD-107 BOARD (SIDE B)

  • Page 19: Rgb Decoder

    CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK PD-107 BOARD (1/4) CAMERA REC 0.44Vp-p IC5502 0.2Vp-p IC5502 0.2Vp-p IC5502 0.7Vp-p IC5502 4.7Vp-p IC5502 4.2Vp-p IC5502 4.2Vp-p IC5502 4.2Vp-p IC5502 4-83 4-84 4-85 RGB DECODER PD-107 (1/4) (TRV Series)

  • Page 20: Lcd Drive

    CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK • For schematic diagrams. • Refer to page 4–79 for Printed Wiring Board. PD-107 BOARD (2/4) CAMERA REC 4.7Vp-p IC5601 4.7Vp-p 20msec IC5601 4.7Vp-p IC5601 4.1Vp-p IC5601 4.7Vp-p 20msec IC5601 4.7Vp-p IC5601 4-86 4-87 4-88 LCD DRIVE PD-107 (2/4) (TRV Sereis)

  • Page 21: Back Light, Lcd

    CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK • For schematic diagrams. • For schematic diagrams. • Refer to page 4–79 for Printed Wiring Board. • Refer to page 4–79 for Printed Wiring Board. PD-107 BOARD (4/4) CAMERA REC 2.9Vp-p 24.17 kHz IC5801 4-89 4-90 4-91...

  • Page 22: Board (Side B)

    CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK VF-99 (B/W EVF) PRINTED WIRING BOARD – Ref No. VF-99 BOARD: 10,000 series – VF-99 BOARD (SIDE B) VF-99 BOARD (SIDE A) VF-99 BOARD (TYPE 2/TYPE 3) (TYPE 2) C901 R919 C902 R920 C903 R921 C904 R922 C905...
  • Page 23 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK VF-119 (COLOR EVF (COLOR EVF MODEL)) PRINTED WIRING BOARD VF-119 BOARD – Ref No. VF-119 BOARD: 10,000 series – CAMERA REC VF-119 BOARD (SIDE B) VF-119 BOARD (SIDE A) 3Vp-p IC5401 7.2Vp-p IC5401 7.5Vp-p IC5401 7.6Vp-p IC5401 3Vp-p...
  • Page 24 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK VF-120 BOARD CAMERA REC 2.4Vp-p IC5301 12Vp-p IC5301 4-99 4-100 4-101 4-102 COLOR EVF, BACK LIGHT VF-120 (COLOR EVF MODEL), LB-54...
  • Page 25 CCD-TR315/TR416/TR416PK/TR516/TR516PK/TR716 CCD-TRV16/TRV16PK/TRV36/TRV36PK/TRV43/TRV46/TRV46PK DD-117 BOARD CAMERA REC 0.76Vp-p 507 kHz IC801 0.76Vp-p 506 kHz IC801 4-109 4-110 4-111 4-112E POWER DD-117...
