ETC source four Assembly Instructions Manual page 2

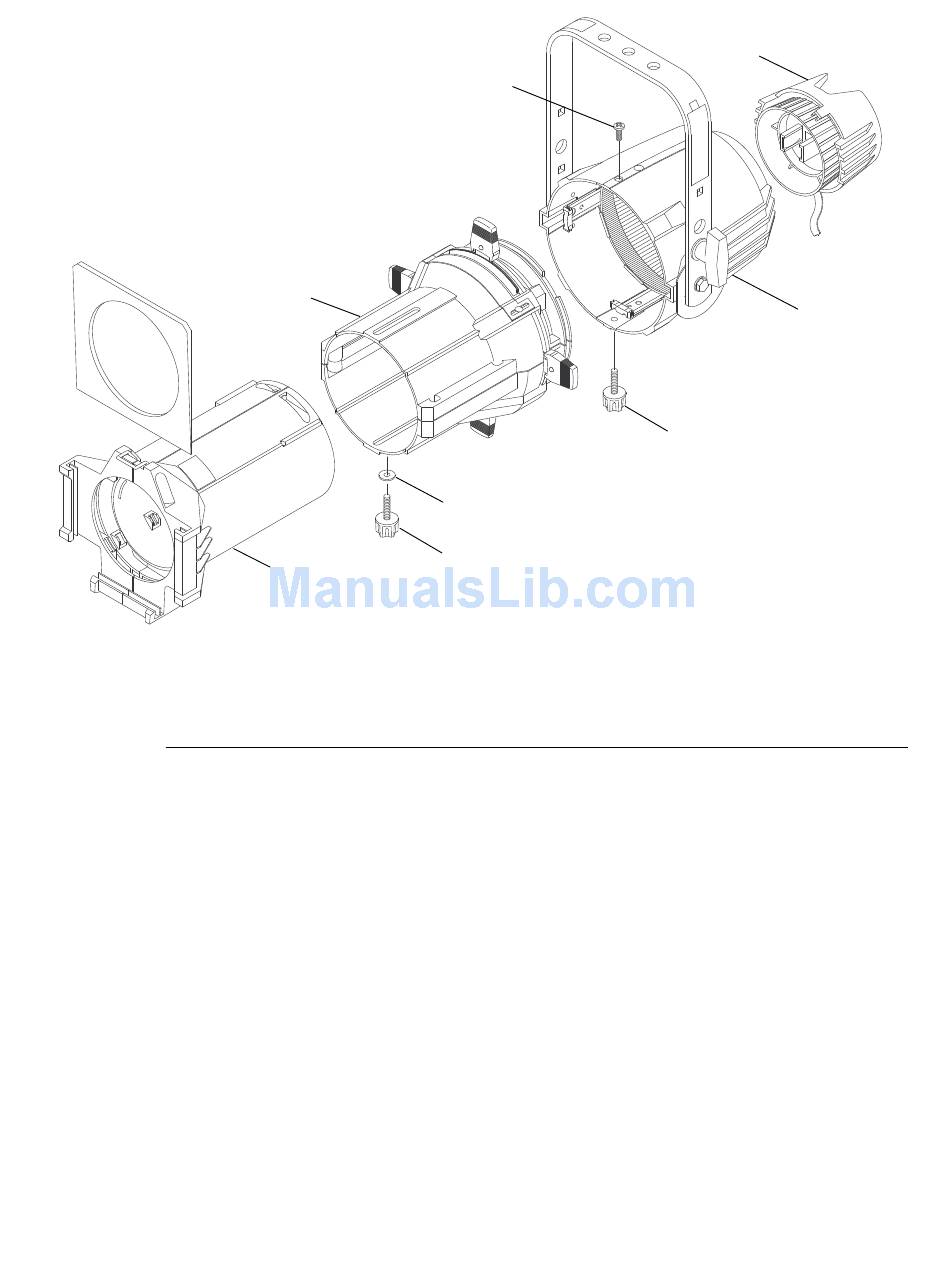

Final assembly
Reference
Number
1
2
2A
3
4
5
6
7
8
9
10
11
Optional equipment
12
3
4
5
6
7
8
9
Part Description
Number
7060A2008 Lamp socket assembly
7060A2011 Reflector housing assembly, single clutch
7060A2020 Reflector housing assembly, double clutch
7060A2012 Front barrel assembly
7060A2000-K 5° lens tube, with knob
7060A2001-K 10° lens tube, with knob
7060A2002-K 19° lens tube (6 x 16), with knob
7060A2003-K 26° lens tube (6 x 12), with knob
7060A2004-K 36° lens tube (6 x 9), with knob
7060A2005-K 50° lens tube (4.5 x 6), with knob
7060A4008-01 Knob set with male insert
HW5143 Washer, flat fiber
HW5197 Screw, 1/4-20 x 5/8, black zinc
12
11
10
(2 required)
2
1
2
2A
10
Quantity
Required
1
1
1
1
1
1
1
1
1
1
2
1
1
2/96
