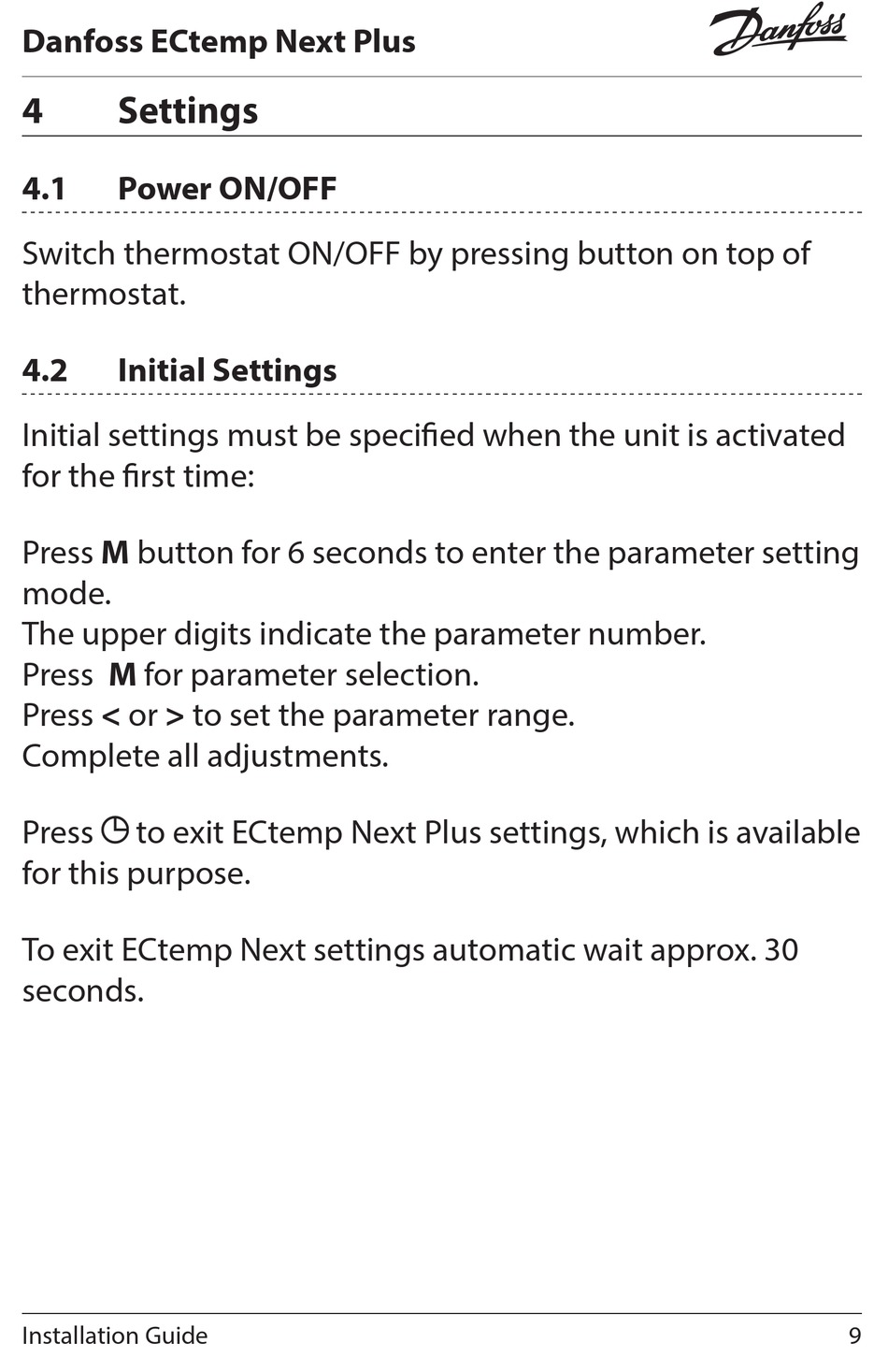

Danfoss ECtemp Next Plus
4
Settings
4�1
Power ON/OFF
Switch thermostat ON/OFF by pressing button on top of
thermostat.
4�2
Initial Settings
Initial settings must be specified when the unit is activated
for the first time:
Press M button for 6 seconds to enter the parameter setting
mode.
The upper digits indicate the parameter number.
Press M for parameter selection.
Press < or > to set the parameter range.
Complete all adjustments.
Press
to exit ECtemp Next Plus settings, which is available
for this purpose.
To exit ECtemp Next settings automatic wait approx. 30
seconds.
Installation Guide
9
