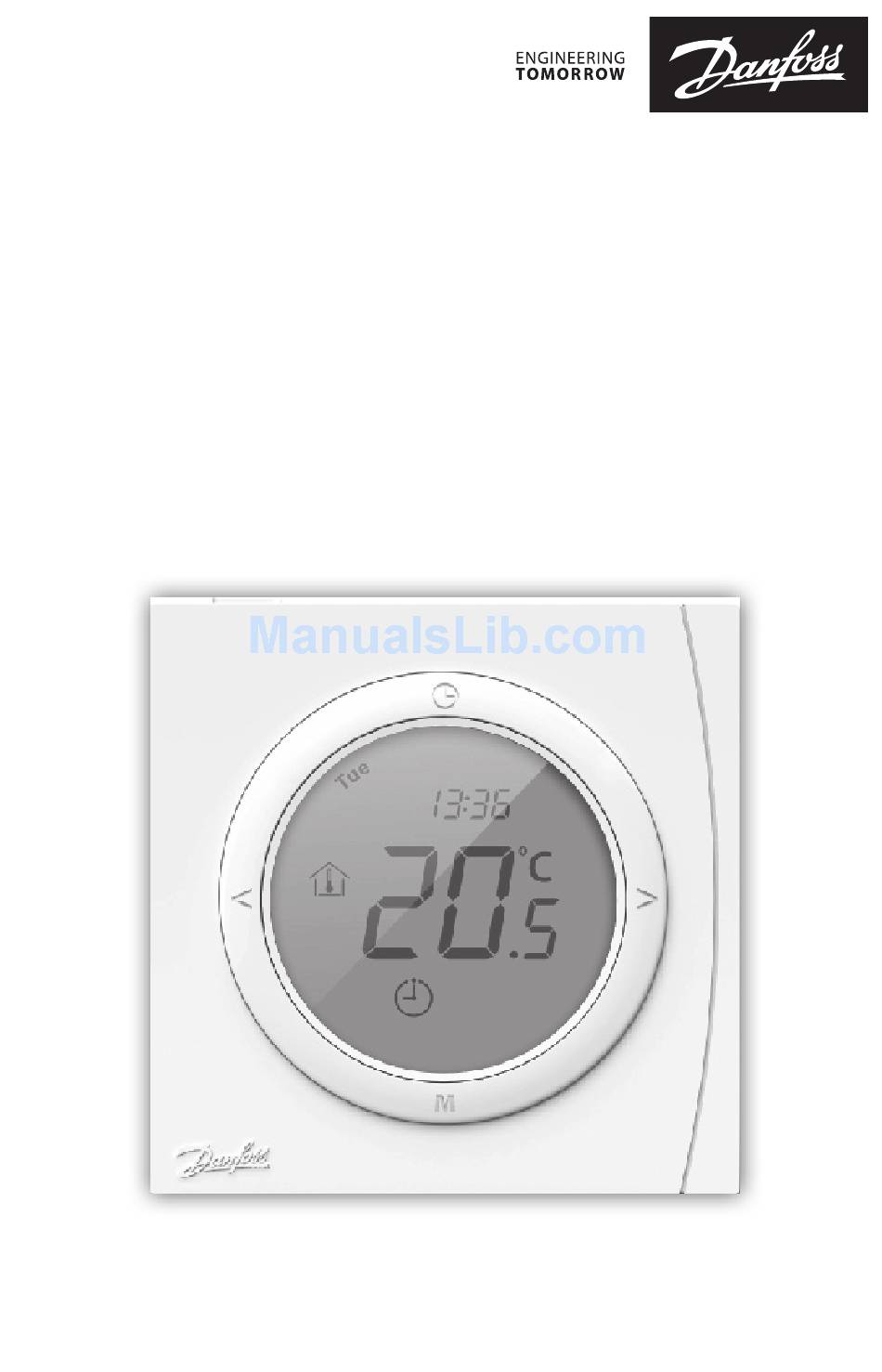

- Page 1 Installation Guide Danfoss ECtemp Next Plus Electronic Intelligent Timer Thermostat electricheating.danfoss.com...
-
Page 2: Table Of Contents
Danfoss ECtemp Next Plus Table of Contents Introduction � � � � � � � � � � � � � � � � � � � � � 2 Technical Specifications ... 3 Safety Instructions . -
Page 3: Introduction
Danfoss ECtemp Next Plus Introduction The Danfoss ECtemp Next Plus is an electronic program- mable timer thermostat used for controlling electrical floor heating elements. The thermostat is designed for fixed installation only and can be used for both direct heating of the entire room and for comfort heating of the floor. - Page 4 Danfoss ECtemp Next Plus Ambient temperature -10°C to +60°C Frost protection temperature 5°C to +9°C (default 5°C) Temperature range Room temperature: 5-35°C. Floor temperature: Max. 35°C is default. Sensor failure monitoring The thermostat has a built-in monitoring circuit, which will...
-
Page 5: Safety Instructions
Danfoss ECtemp Next Plus Standard “Automatic electrical controls for household and similar use”: • EN/IEC 60730-1 (general) • EN/IEC 60730-2-9 (thermostat) 1�2 Safety Instructions Make sure the mains supply to the thermostat is turned off before installation. Important: When the thermostat is used to control a floor... -
Page 6: Mounting Instructions
Danfoss ECtemp Next Plus Mounting Instructions Please observe the following placement guidelines: Place the thermostat at a suitable height on the wall (typically 80-170cm.). The thermostat should not be placed in wet rooms. Place it in an adjacent room and use floor sensor only. - Page 7 Danfoss ECtemp Next Plus • Place the floor sensor in a conduit in an appropriate place where it is not exposed to sunlight or draft from door openings. • Equally distant and >2cm from two heating cables. • The conduit should be flush with the floor surface - countersink the conduit if necessary.
-
Page 8: Symbols
Danfoss ECtemp Next Plus Symbols The following symbols appears in the display: Symbols Function description Symbols Function description Room temperature Away mode Floor temperature Child safety lock Temperature indication Power ON/OFF Timer and program Set temperature operation Mode change/check floor temp./child... -
Page 9: Settings
Press M for parameter selection. Press < or > to set the parameter range. Complete all adjustments. Press to exit ECtemp Next Plus settings, which is available for this purpose. To exit ECtemp Next settings automatic wait approx. 30 seconds. -
Page 10: Advanced Programmable Timer
Danfoss ECtemp Next Plus The digits indicate the set value as follows: No� Parameter settings Settings range Default Working mode 01: Manual 02: Advanced Program- mable Timer Temperature control 01: Room and floor temp; mode 02: Only floor temp.; 03: Only room temp.* Maximum floor 20-30˚C (only for 01 in... - Page 11 Danfoss ECtemp Next Plus temperature, and an energy-saving lower setback tempera- ture if standard room comfort temperature is not required. The function consists of 2 programs: P1 with 4 events in 5 days P2 with 4 events in 2 days (Sat.
-
Page 12: Temperature Setting
Danfoss ECtemp Next Plus When releasing the < or >, the display returns to showing the actual temperature. This temperature change is only temporary and will be maintained only until the next programmed setting! A default program provides timer control if the customer... - Page 13 Danfoss ECtemp Next Plus It would also be possible to use only one temperature sensor. However, this option is not recommendable as this cause an increased risk of overheating of the floor. Extending maximum floor temperature and Setting into room only mode – See point 4.9 and 4.10.
-
Page 14: Timer Setting
Danfoss ECtemp Next Plus 4�5 Timer Setting To adjust time and week day - press Use < or > to adjust hours, again to shift to minutes and use < or > for adjust- Press ing3 again to shift to weekdays and use < or > for select-... -
Page 15: Present Floor Temperature
Danfoss ECtemp Next Plus 4�8 Present Floor Temperature Press M and hold – Press < within 6 sec also start to flash and current floor temperature is be- ing displayed. Press any other button to exit or wait for automatic exit after 6 sec. -
Page 16: Limitation To 45°C
Danfoss ECtemp Next Plus Adjust Maximum Floor temperature according to need up to 45°C Power ON Press M button for 6 seconds Select P03 (Table in 4.2): raise floor temperature limitation higher than 35°C by using the > 4�11 Table for 4�9 Change to Room control only and 4�10 Extending Maximum Floor temperature... -
Page 17: Error Codes
Danfoss ECtemp Next Plus Minimum 5-35˚C(Active in Room Temp. Temperature Control 5˚C Limitation Mode 02) Setting range 01: Max. 35˚C, 02: extension for Max. 45˚C P06, P07, P08 Only room 01: Enable, 02: temperature Disable control Error Codes Room sensor failure... -
Page 18: Disposal Instruction
Danfoss ECtemp Next Plus Disposal Instruction Installation Guide... - Page 19 Danfoss ECtemp Next Plus Installation Guide...
- Page 20 Danfoss ECtemp Next Plus Installation Guide...
- Page 21 Danfoss ECtemp Next Plus Installation Guide...
- Page 22 Danfoss ECtemp Next Plus Installation Guide...
- Page 23 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed.
