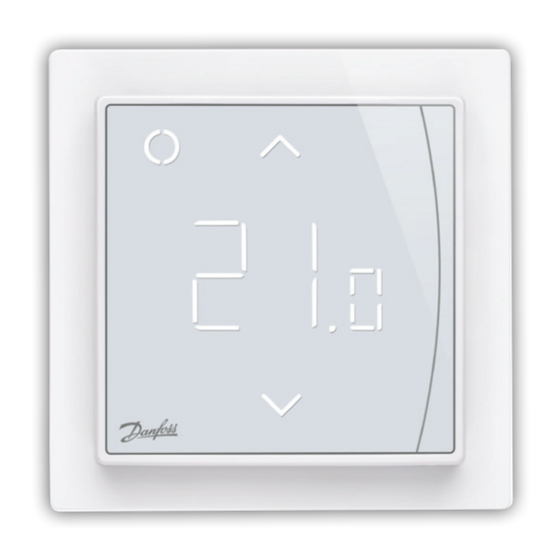

Intelligent electronic timer thermostat with wi-fi connectivity and app control
Hide thumbs Also See for ECtemp Smart:

Advertisement

Quick Links

Installation Guide
Danfoss ECtemp™ Smart
Intelligent Electronic Timer Thermostat
with Wi-Fi connectivity and App control
heating.danfoss.com/new-solutions/ectemp-smart

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECtemp Smart and is the answer not in the manual?

Questions and answers

Summary of Contents for Danfoss ECtemp Smart

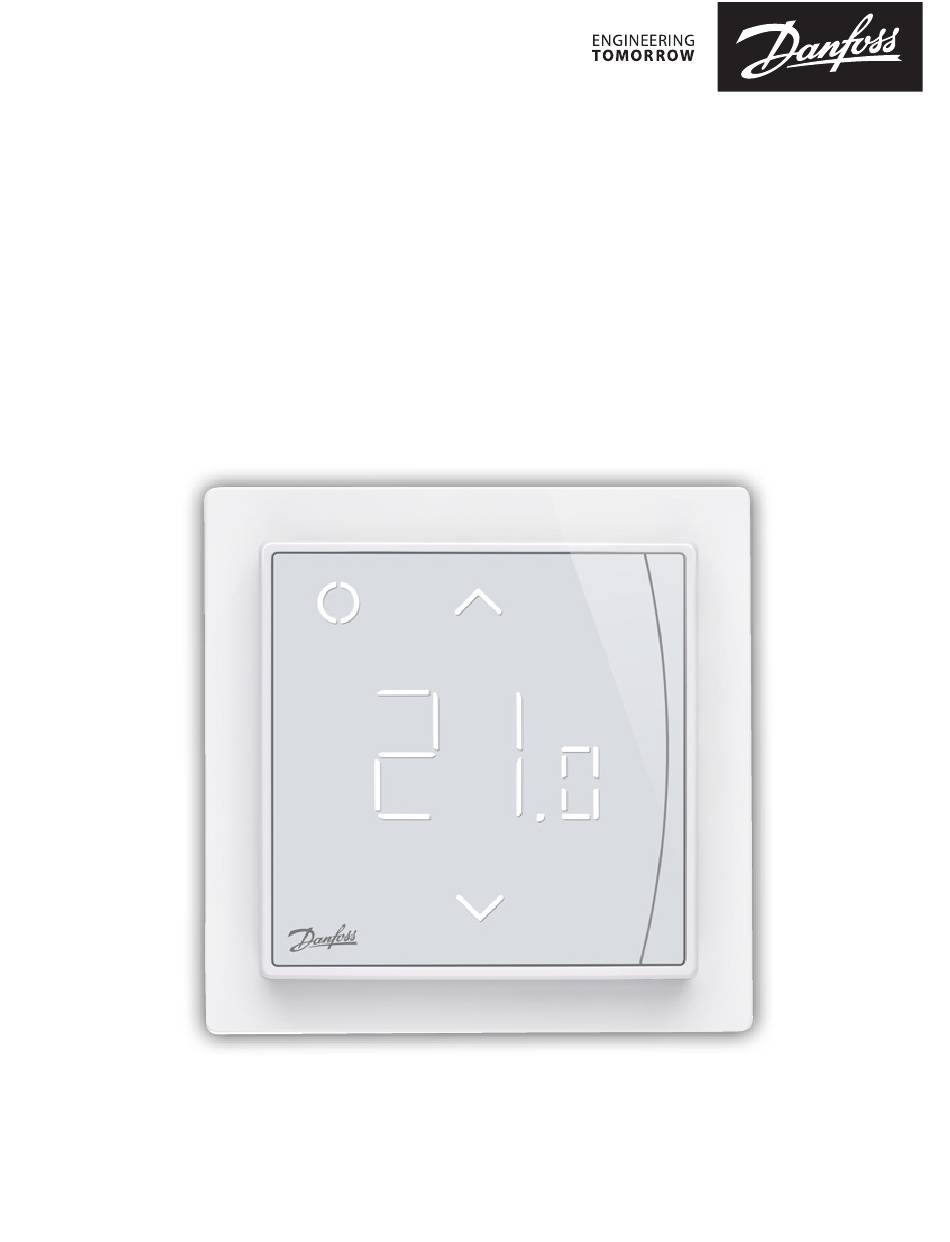

  • Page 1 Installation Guide Danfoss ECtemp™ Smart Intelligent Electronic Timer Thermostat with Wi-Fi connectivity and App control heating.danfoss.com/new-solutions/ectemp-smart...
  • Page 2: Table Of Contents

    Danfoss ECtemp™ Smart Table of Contents Introduction ....2 Technical Speci cations ... . 4 Safety Instructions .
  • Page 3 Danfoss ECtemp™ Smart • A touchscreen display with light. • An easy-to-follow menu-driven programming and operation. • An installation wizard with room/ oor type-speci c setup (requires an app). • Support for multiple frame systems. • Compatible with several 3rd party NTC sensors.
  • Page 4: Technical Speci Cations

    Danfoss ECtemp™ Smart More information on this product can also be found at: http://heating.danfoss.com/new-solutions/ectemp-smart Technical Speci cations Operation voltage 220-240 V~, 50/60 Hz Standby power consumption Max. 0,40 W Relay: Resistive load Max. 16 A / 3680 W @ 230 V Inductive load Max.
  • Page 5 Danfoss ECtemp™ Smart Ambient temperature 0 ° to +30 °C Frost protection 5 °C to +9 °C (default 5 °C) temperature Temperature range Room temperature: 5-35 °C. Floor temperature: 5-45 °C. Max. oor: 20-35 °C (if unrecov- erable seal is broken then up to 45 °C).
  • Page 6: Safety Instructions

    Danfoss ECtemp™ Smart Dimensions 85 x 85 x 20-24 mm (in-wall depth: 22 mm) Weight 127 g Electrical safety and Electro-Magnetic Compatibility for this product is covered by the compliance with the EN/IEC Standard “Automatic electrical controls for household and similar use”:...
  • Page 7 Danfoss ECtemp™ Smart Please also note the following: • The installation of the thermostat must be done by an authorized and quali ed installer according to local regulations. • The thermostat must be connected to a power supply via an all-pole disconnection switch.
  • Page 8: Mounting Instructions

    Danfoss ECtemp™ Smart Mounting Instructions Please observe the following placement guidelines: Place the thermostat at a suitable height on the wall (typically 80-170 cm.). The thermostat should not be placed in wet rooms. Thermostat must be placed outside zone 2. Place it in an adjacent room and use oor sensor only.
  • Page 9 Danfoss ECtemp™ Smart Note: A oor sensor is recommended in all oor heating applications and mandatory to thin mats under wooden oors to reduce the risk of overheating the oor. • Place the oor sensor in a protecting plastic conduit...
  • Page 10 Danfoss ECtemp™ Smart Follow the steps below to mount the thermostat: Unpack thermostat Connect the thermostat according to the connection diagram. The screen of the heating cable must be connected to Mains the earth conductor of the Maximum 220-240V~ Load 16 (1) A...
  • Page 11 Danfoss ECtemp™ Smart the female header, in not to bending the connectors. Press carefully until the frame is xed against the rubber gasket. When mounting and reassembling the thermostat. Important: Do NOT press in the center of the display screen.
  • Page 12: Display Symbols

    Danfoss ECtemp™ Smart Display Symbols Top part main functionalities are to support user interface through display and hold all the controller logic. Display main functionalities are to show the current status of the Thermostat and recognize the user actions from the buttons.
  • Page 13 Danfoss ECtemp™ Smart Type Description Button/Symbol Control button Button/Symbol Arrow Up button Button/Symbol Arrow Down button Symbol 3 digit 7 segment numbers with comma separator Symbol indications Indication Mode/State Description Blue - blinking Access Point Thermostat ready for set-up Mode...
  • Page 14 Danfoss ECtemp™ Smart Green – Active Mode Thermostat waiting for con r- blinking & Access mation of action Point Mode Arrows – Active Mode Safety lock is on blinking rapidly when touched Interaction directly on thermostat Function Button Description Turn thermo- 1.
  • Page 15 Danfoss ECtemp™ Smart Frost protec- Touch and hold Deactivate frost protec- tion Control (1) for tion 1 sec. Safety lock Touch and hold Activate/Deactivate Up (2) + Down (3) safety lock for 3 sec. Factory restore Touch and hold Activates factory restore...
  • Page 16 Danfoss ECtemp™ Smart Error Description Solu- Need restart type tion Floor Connection Contact The thermostat Sensor to sensor is service requires a restart lost to operate again. discon- nected Sensor Contact The thermostat Floor Sensor short- service requires a restart...
  • Page 17 Danfoss ECtemp™ Smart Communication Error Codes Communication Description error Wrong SSID or STA trying to connect to the AP password No IP address STA - connection acquired, no IP yet, waiting for con guration data. No internet con- STA connected and has an IP from nection DHCP server.
  • Page 18: Con Guring

    Power on the thermostat, and it will show “-“ in the display. Then it is ready to be con gured using your iPhone and Android device. Open the Danfoss Smart™ App and follow the instructions and set-up ow in the App. Danfoss ECtemp™ Smart indication The Danfoss ECtemp™...
  • Page 19: Settings

    Danfoss ECtemp™ Smart Settings IMPORTANT DURING SET-UP Select whether only a oor sensor or a combination of room and oor sensor should be used. A “room only” option is also avail- able, but requires that you have to break the small plastic seal on the back of the display module, e.g.
  • Page 20 Danfoss ECtemp™ Smart IMPORTANT: When the thermostat is used to control a oor heating element in connection with a wooden oor or similar material, always use a oor sensor and never set the maximum oor temperature to more than 35°C.
  • Page 21 Danfoss ECtemp™ Smart Thermal Examples of Details Approximate resistance ooring kg/m setting for 25°C K/ W] oor temperature 0,05 8 mm HDF based > 800 28°C laminate 0,10 14 mm beech 650 – 800 31°C parquet 0,13 22 mm solid oak >...
  • Page 22: Warranty

    • thermostats: ECtemp Smart. Should you, against all expectations, experience a problem with your Danfoss product, you will nd that Danfoss o ers Danfoss warranty valid from the date of purchase on the fol- lowing conditions: During the warranty period Danfoss shall...
  • Page 23 The Danfoss warranty shall not extend to products which have not been paid in full. Danfoss will, at all times, provide a rapid and e ective response to all com- plaints and inquiries from our customers.
  • Page 24 Danfoss ECtemp™ Smart Installation Guide...
  • Page 25: Radio Equipment Directive

    Danfoss ECtemp™ Smart Radio Equipment Directive SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, Danfoss A/S declares that the radio equipment type ECtemp™ Smart is in compliance with Directive 2014/53/EU The full text of the EU declaration of conformity is available at the following internet address: https://assets.danfoss.com/approvals/latest/238288/...
  • Page 26: Disposal Instruction

     Danfoss ECtemp™ Smart Disposal Instruction This symbol on the product indicates that it may not be disposed of as household waste. It must be handed over to the applicable take-back scheme for the recycling of electrical and electronic equipment.
  • Page 27 Danfoss ECtemp™ Smart Installation Guide...
  • Page 28 Danfoss ECtemp™ Smart Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark 08096305 & AN210086473616en-020203 Produced by Danfoss © 11/2023...
