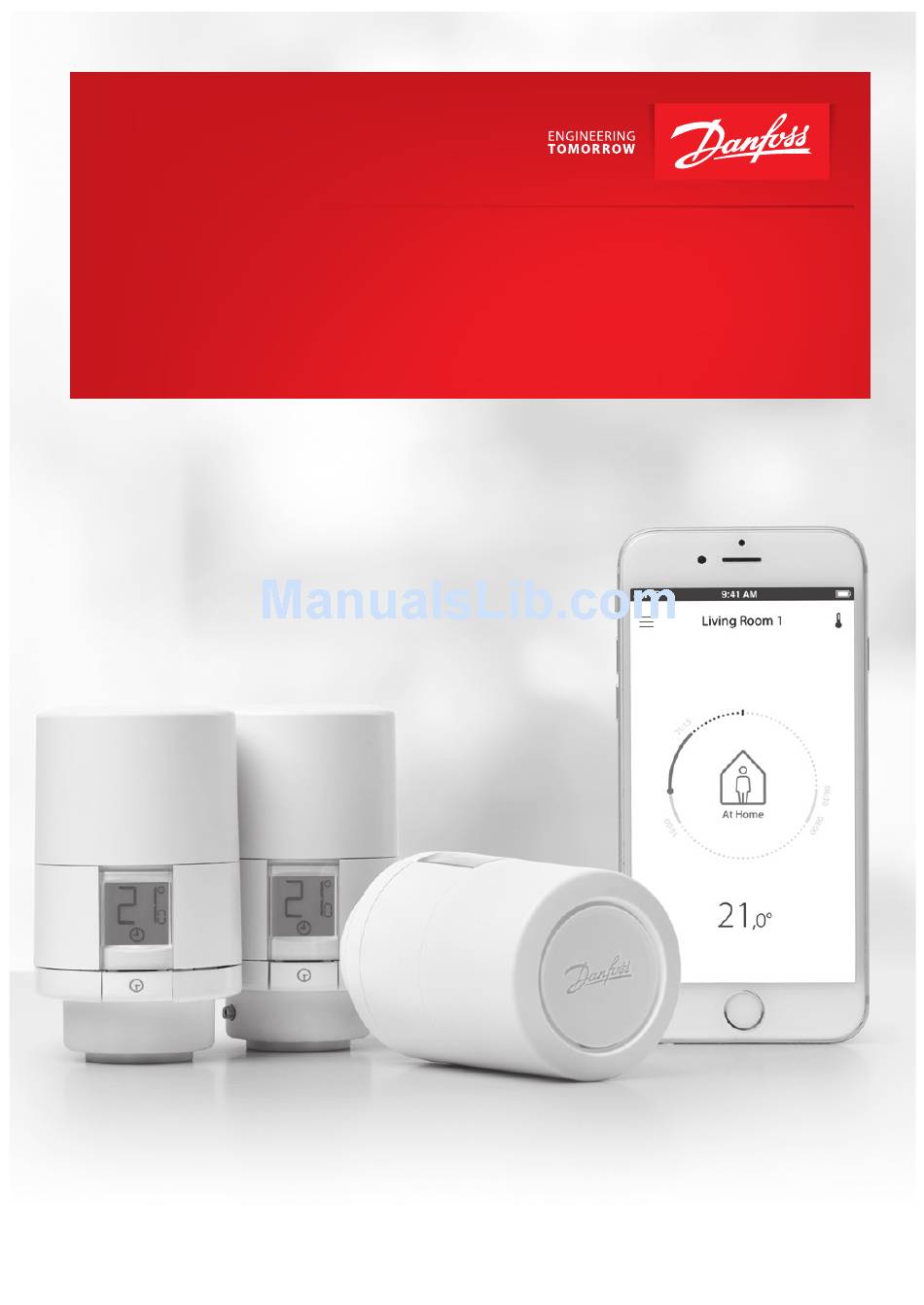

- Page 1 Instruction Manual Danfoss Eco™ Electronic radiator thermostat www.danfoss.com...
-
Page 2: Table Of Contents
Resetting Danfoss Eco™ to default settings ........ - Page 3 Setting options via the Danfoss Eco™ App........
-
Page 4: Installation
SE - Adapters included RA, M30 & M28 MMA 014G1111 RU - Adapters Included RA, M30, RTD, M28 Herz & Giacomini 014G1112 CH - Adapters included RA, M30, RAVL & RAV | © Danfoss | Heating Segment | 2017.04 VILTH102... -
Page 5: In The Package
Installation Guide Danfoss Eco™ Electronic radiator thermostat 1.2 In the package Danfoss Eco™ are supplied with the adapters as listed above. In addition each pack contains: Danfoss Eco™ Quick Guide Requires 2x AA batteries Allen Key Ad ap te r... - Page 6 For Danfoss RAVL valves For Danfoss 014G0253 RTD valves For M28 valves: - MMA 014G0255 - Herz 014G0256 - Orkli 014G0257 - COMAP 014G0258 For Caleffi 013G5849 valves For Giacomini 013G5849 valves | © Danfoss | Heating Segment | 2017.04 VILTH102...
-
Page 7: Installing The Right Adapter
1.4 Installing the right adapter The Danfoss Eco™ pack contains an adapter guide to help you find the correct adapter for your valve. If you need additional help in finding the correct adapter follow the QR code on the guide and follow the video instruction. -
Page 8: Inserting The Batteries
The low battery symbol is displayed approx. one month before the batteries run out. Before the batteries run out Danfoss Eco™ will leave the valve in Frost Protection position to protect the heating system from dam- age. Estimated battery life time is up to 2 years. -
Page 9: Mounting The Danfoss Eco
Danfoss Eco™ Electronic radiator thermostat 1.6 Mounting the Danfoss Eco™ Screw the Danfoss Eco™ onto the mounted adapter until a click sound appears. Once the ther- mostat is tightened properly, then adjust the display to your preferred display orientation. A large M is flashing in the display to indicate that Installation Mode is activated. Press and hold the button for 3 seconds. -
Page 10: Paring Danfoss Eco
During the first night of operation Danfoss Eco™ will shut off the radiator heat and then open again to detect the exact opening point of the valve. This will allow Danfoss Eco™ to control the heat as efficiently as possible. If necessary, the procedure is repeated once a night for up to a week. -
Page 11: Removing Danfoss Eco
Press firmly on the tab and unscrew the thermostat from the adapter. 1.11 Resetting Danfoss Eco™ to default settings Press and hold , Keep holding while Remove the cover and take out one battery. -
Page 12: Technical Specifications
Weight (incl. batteries) 198 g (with RA adapter) 20 (not to be used in hazardous installations or in places IP class where it will be exposed to water) Approvals, markings etc. Intertek | © Danfoss | Heating Segment | 2017.04 VILTH102... -
Page 13: Display Screen
If battery level is critical the red ring will flash. 3.2 Red illuminating ring The red ring will be constantly on when you are connected to the Danfoss Eco™ App. It also flashes to indicate when the batteries are critically low on power. -
Page 14: Display Rotation
3.3 Display rotation Danfoss Eco™ can be mounted in a horizontal or veritcal position, depending on your radiator valve. You can set the display rotation to either ‘horizontal’ or ‘vertical’ within the Danfoss Eco™ App under Advanced Settings. 3.4 Manual mode Danfoss Eco™... -
Page 15: Time
The device will take the correct time from your smart phone. There is no need to set the time. Danfoss Eco™ uses a 24 hour time display. Note. If the batteries have been removed from the Danfoss Eco™ you will need to connect to the Danfoss Eco™ App to correct the time once the batteries are replaced. -
Page 16: Create Your Own Schedule
A Vacation programme keeps the setback temperature for a period, defined by you. Use a Vacation programme to save energy, when you are away from home. Vacation programme is set within the Danfoss Eco™ App. Vacation mode can Planned Vacations Schecule your Vaca- The Danfoss Eco™... -
Page 17: Overrule A Vacation
When Danfoss Eco™ is turned down to Min level manually, a notification banner is shown, and center icon switches to ‘Pause’ . To exit Pause click the centre icon on the Danfoss Eco™ App and return to the scheduled or manual setpoint. VILTH102... -
Page 18: Open Window Setting
The heat is turned off for up to 30 minutes, before Danfoss Eco™ returns to its original settings. When Open-window has been activated, the function is quarantined for 45 minutes. -
Page 19: Setting Options Via The Danfoss Eco™ App
Installation Guide Danfoss Eco™ Electronic radiator thermostat 5. Settings & Installation modes 5.1 Setting options via the Danfoss Eco™ App Command Options List of the installed Danfoss Option to change the name of the Danfoss Eco™ thermostats (by name) Eco™ or to un-pair an existing Danfoss Thermostats Eco™. -
Page 20: Software Updates
‘Demo’ on the Danfoss Eco™ App screen. 5.2 Software Updates Danfoss Eco™ thermostat can be updated via the Danfoss Eco™ App The Danfoss Eco™ App will inform when a new software is available. | © Danfoss | Heating Segment | 2017.04 VILTH102... -
Page 21: Data Security
Danfoss Eco™ Electronic radiator thermostat 5.3 Data Security The data security for of the Danfoss Eco™ thermostat and Danfoss Eco™ App, that is paired to your smartphone is guaranteed. The system is tested annually by independent specialists. Data encryption: The wireless connection to your Danfoss Eco™ thermostat is protected against threats from unknown devices with latest encryption technology, and first time pairing with the thermostat can only be done by physically pressing the button on the thermostat. - Page 22 Installation Guide Danfoss Eco™ Electronic radiator thermostat Danfoss A/S Haarupvaenget 11 DK-8600 Silkeborg Denmark Phone: +45 7488 8000 Fax: +45 7488 8100 www.danfoss.com | © Danfoss | Heating Segment | 2017.04 VILTH102...
