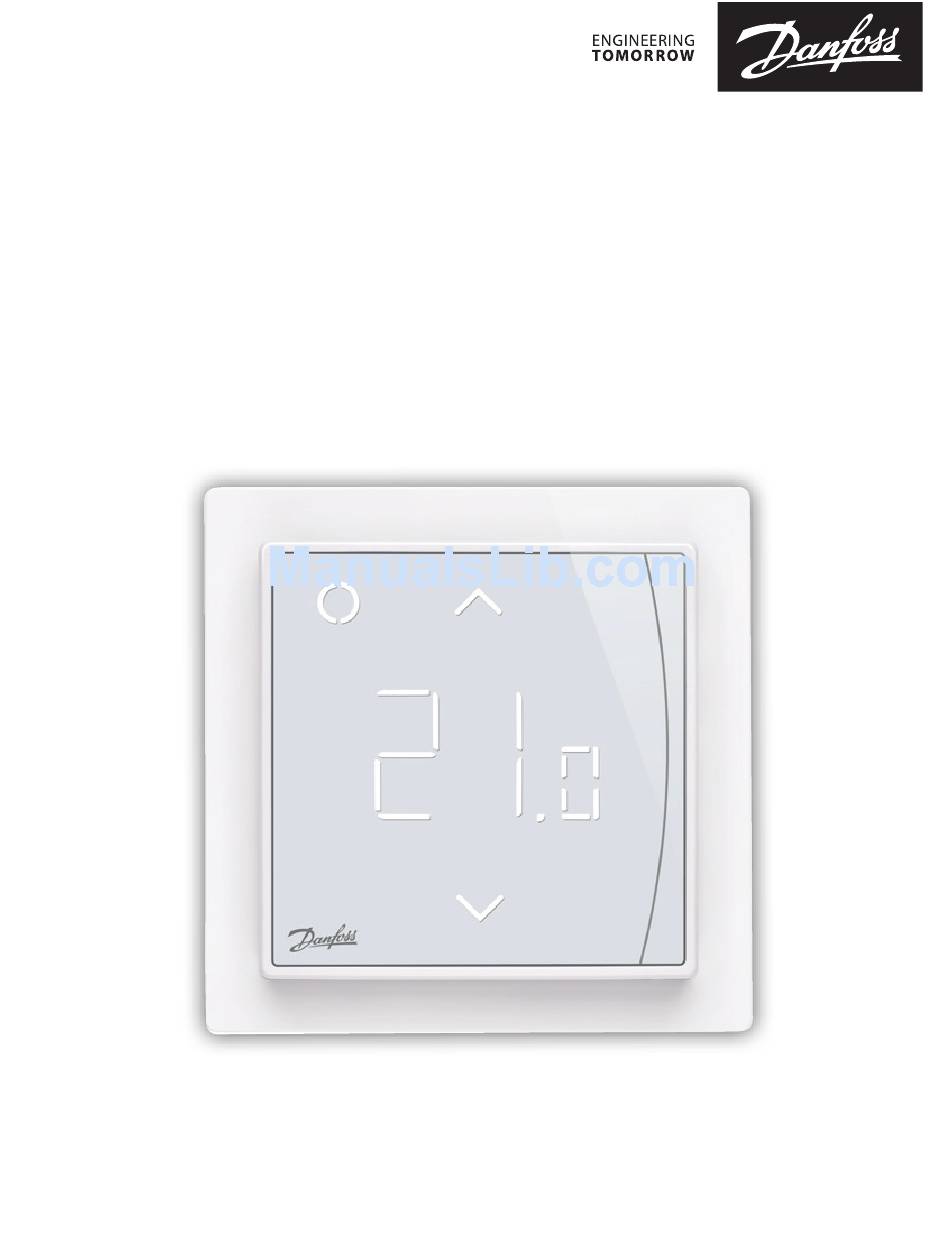

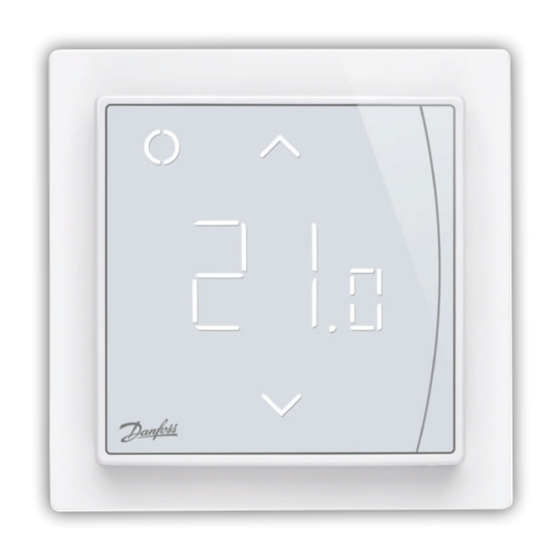

- Page 1 Installation Guide Danfoss ECtemp™ Smart Intelligent Electronic Timer Thermostat with Wi-Fi connectivity and App control heating.danfoss.com/new-solutions/ectemp-smart...
-
Page 2: Table Of Contents
Danfoss ECtemp™ Smart Table of Contents Introduction � � � � � � � � � � � � � � � � � � � 2 Technical Specifications � � � � � � � � � � � � 4 Safety Instructions �... - Page 3 Danfoss ECtemp™ Smart • A touchscreen display with light. • An easy-to-follow menu-driven programming and operation. • An installation wizard with room/floor type-specific setup (requires an app). • Support for multiple frame systems. • Compatible with several 3rd party NTC sensors.
-
Page 4: Technical Specifications
Danfoss ECtemp™ Smart More information on this product can also be found at: http://heating�danfoss�com/new-solutions/ectemp-smart Technical Specifications Operation voltage 220-240 V~, 50/60 Hz Standby power consumption Max. 0,40 W Relay: Resistive load Max. 16 A / 3680 W @ 230 V Inductive load Max. - Page 5 Danfoss ECtemp™ Smart Frost protection 5 °C to +9 °C (default 5 °C) temperature Temperature range Room temperature: 5-35 °C. Floor temperature: 5-45 °C. Max. floor: 20-35 °C (if unrecov- erable seal is broken then up to 45 °C). Min. floor: 10-35 °C, only with combination of room and floor sensor.
-
Page 6: Safety Instructions
Danfoss ECtemp™ Smart Protection class Class II - Dimensions 85 x 85 x 20-24 mm (in-wall depth: 22 mm) Weight 127 g Electrical safety and Electro-Magnetic Compatibility for this product is covered by the compliance with the EN/IEC Standard “Automatic electrical controls for household and similar use”:... - Page 7 Danfoss ECtemp™ Smart Please also note the following: • The installation of the thermostat must be done by an authorized and qualified installer according to local regulations. • The thermostat must be connected to a power supply via an all-pole disconnection switch.
-
Page 8: Mounting Instructions
Danfoss ECtemp™ Smart Mounting Instructions Please observe the following placement guidelines: Place the thermostat at a suitable height on the wall (typically 80-170 cm.). The thermostat should not be placed in wet rooms. Thermostat must be placed outside zone 2. Place it in an adjacent room and use floor sensor only. - Page 9 Danfoss ECtemp™ Smart Note: A floor sensor is recommended in all floor heating applications and mandatory to thin mats under wooden floors to reduce the risk of overheating the floor. • Place the floor sensor in a protecting plastic conduit...
- Page 10 Danfoss ECtemp™ Smart Follow the steps below to mount the thermostat: Unpack thermostat Connect the thermostat according to the connection diagram. The screen of the heating cable must be connected to Mains the earth conductor of the Maximum 220-240V~ Load 16 (1) A...
- Page 11 Danfoss ECtemp™ Smart the female header, in not to bending the connectors. Press carefully until the frame is fixed against the rubber gasket. When mounting and reassembling the thermostat. Important: Do NOT press in the center of the display screen.
-
Page 12: Display Symbols
Danfoss ECtemp™ Smart Display Symbols Top part main functionalities are to support user interface through display and hold all the controller logic. Display main functionalities are to show the current status of the Thermostat and recognize the user actions from the buttons. - Page 13 Danfoss ECtemp™ Smart Nr� Type Description Button/Symbol Control button Button/Symbol Arrow Up button Button/Symbol Arrow Down button Symbol 3 digit 7 segment numbers with comma separator Symbol indications Indication Mode/State Description Blue - blinking Access Point Thermostat ready for set-up...
- Page 14 Danfoss ECtemp™ Smart Green – Active Mode Thermostat waiting for confir- blinking & Access mation of action Point Mode Arrows – Active Mode Safety lock is on blinking rapidly when touched Interaction directly on thermostat Function Button Description Turn thermo- 1.
- Page 15 Danfoss ECtemp™ Smart Frost protec- Touch and hold Deactivate frost protec- tion Control (1) for tion 1 sec. Safety lock Touch and hold Activate/Deactivate Up (2) + Down (3) safety lock for 3 sec. Factory restore Touch and hold Activates factory restore...
- Page 16 Danfoss ECtemp™ Smart Error Nr� Description Solu- Need restart type tion Floor Connection Contact The thermostat Sensor to sensor is service requires a restart discon- lost to operate again. nected Floor Sensor Contact The thermostat Sensor short- service requires a restart...
- Page 17 Danfoss ECtemp™ Smart Communication Error Codes Communication Nr� Description error Wrong SSID or STA trying to connect to the AP password No IP address STA - connection acquired, no IP yet, waiting for configuration data. No internet con- STA connected and has an IP from nection DHCP server.
-
Page 18: Configuring
Power on the thermostat, and it will show “-“ in the display. Then it is ready to be configured using your iPhone and Android device. Open the Danfoss Smart™ App and follow the instructions and set-up flow in the App. Danfoss ECtemp™ Smart indication The Danfoss ECtemp™... -
Page 19: Settings
Danfoss ECtemp™ Smart Settings IMPORTANT DURING SET-UP Select whether only a floor sensor or a combination of room and floor sensor should be used. A “room only” option is also avail- able, but requires that you have to break the small plastic seal on the back of the display module, e.g. - Page 20 Danfoss ECtemp™ Smart IMPORTANT: When the thermostat is used to control a floor heating element in connection with a wooden floor or similar material, always use a floor sensor and never set the maximum floor temperature to more than 35°C.
- Page 21 Danfoss ECtemp™ Smart Thermal Examples of Details Approximate resistance flooring kg/m setting for 25°C K/ W] floor temperature 0,05 8 mm HDF based > 800 28°C laminate 0,10 14 mm beech 650 – 800 31°C parquet 0,13 22 mm solid oak >...
-
Page 22: Warranty
Warranty The products will, in the event of a fault that can be tracked back to a manufacturing defect in the Danfoss product, be repaired or replaced free of charge. To apply for this warranty the installation must be performed by an authorized installer and the warranty certificate has to be stamped, signed and provided. - Page 23 Danfoss ECtemp™ Smart Installation Guide...
- Page 24 E-mail: danfoss@danfoss.com danfoss.com Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies.
