Installation Guide

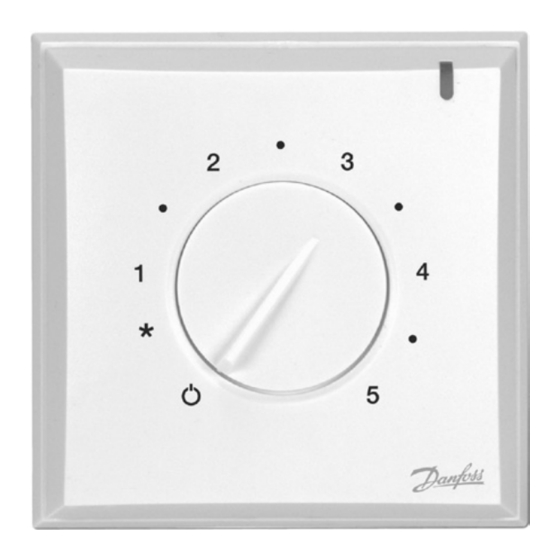

ECtemp 130
Electronic Thermostat
electricheating.danfoss.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ECtemp 130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Danfoss ECtemp 130

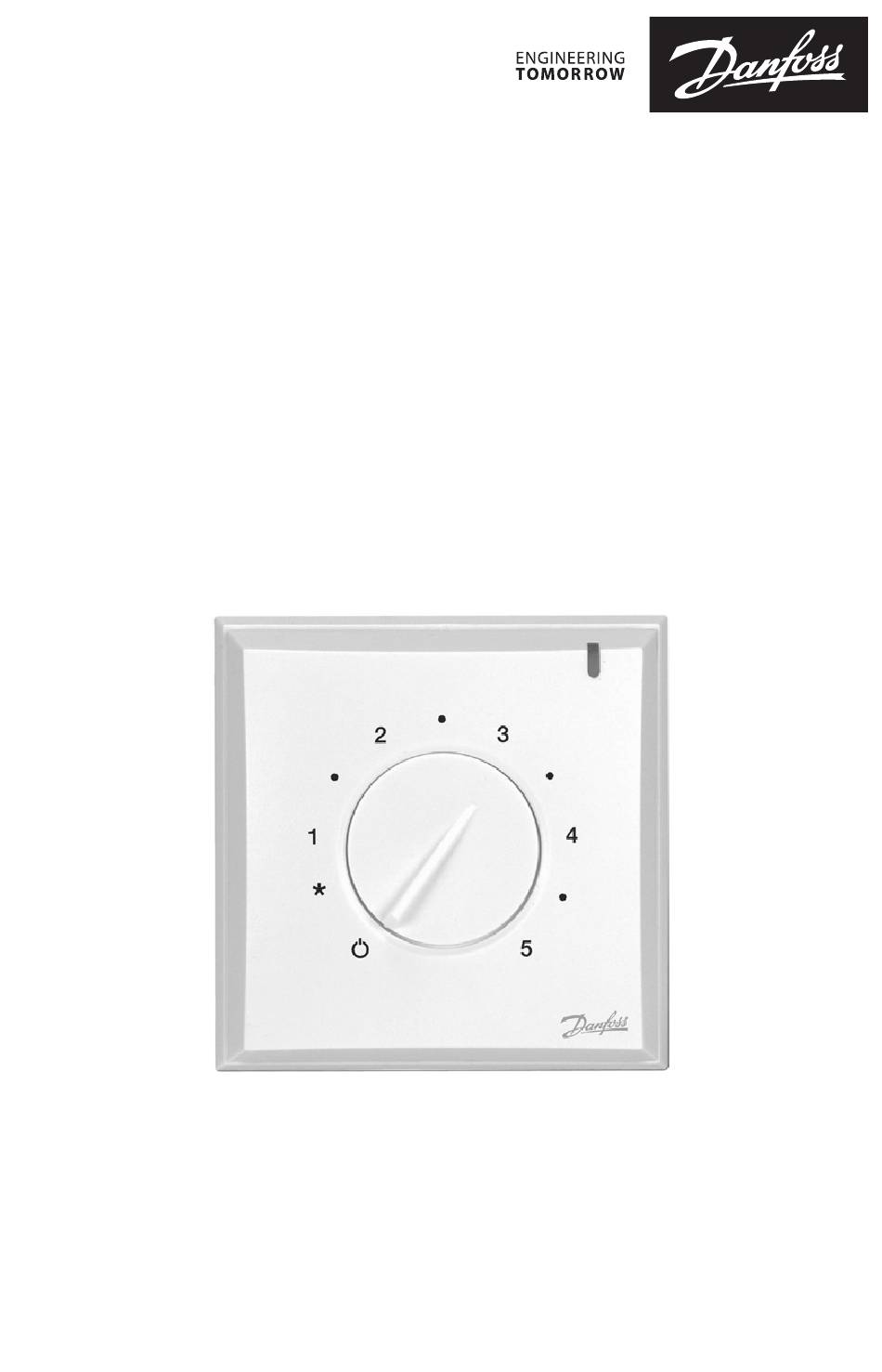

  • Page 1 Installation Guide ECtemp 130 Electronic Thermostat electricheating.danfoss.com...
  • Page 2 ECtemp 130 Installation Guide...
  • Page 3: Table Of Contents

    Disposal Instruction ....16 Introduction ECtemp 130 is an electronic thermostat to be installed di- rectly on the wall. It is provided with a floor sensor to measure and control the desired floor temperature.
  • Page 4: Technical Specifications

    ECtemp 130 Technical Specifications Operation voltage 220-240V~, 50Hz Power consumption Max 5W Relay: Resistive load Max 16A / 3680W @ 230V Inductive load cos φ= 0.3 max 1A Sensing units NTC 15 kOhm at 25°C Sensing values: 0 °C 42 kOhm 25 °C...
  • Page 5: Safety Instructions

    ECtemp 130 Dimensions 82 x 82 x 36 mm Weight 90 g The product complies with the EN/IEC Standard «Automatic electrical controls for household and similar use»: • EN/IEC 60730-1 (general) • EN/IEC 60730-2-9 (thermostat) Safety Instructions Make sure the mains supply to the thermostat is turned off before installation.
  • Page 6: Mounting Instructions

    ECtemp 130 • Always connect the thermostat to continuous power supply. • Do not expose the thermostat to moisture, water, dust, and excessive heat. Mounting Instructions Please observe the following placement guidelines: Place the thermostat at a suitable height on the wall (typically 80-170cm.).
  • Page 7 ECtemp 130 • Place the floor sensor in a conduit in an appropriate place where it is not exposed to sunlight or draft from door openings. • Equally distant and >2cm from two heat- ing cables. • The conduit should be flush with the floor surface - countersink the conduit if necessary.
  • Page 8 ECtemp 130 Follow the steps below to mount the thermostat: Open the thermostat: • Lift off the button using a small screwdriver. • Loosen the screw which holds the front. • Push down the release tab at the top of the thermostat using a flat object while slowly pulling off the front cover.
  • Page 9 ECtemp 130 Fasten the thermostat directly to the wall by driving the screws through the holes in each side of the thermostat. = Screw holes for fastening the thermostat. Connect the thermostat according to the connectiondiagram. LOAD LOAD Max.Load Mains...
  • Page 10: Settings

    ECtemp 130 Install the front cover and button in the reverse order of disassembly. Turn on the power supply. Settings Temperature Settings How to change the minimum and maximum floor temperatures Lift off the adjustment button using a thin screwdriver. (1) Move the pins to the desired positions.
  • Page 11 ECtemp 130 • By default, the maximum floor temperature is set to 35°C. • Always use a floor sensor or a room + floor sensor combination to control floor heating. Without a floor sensor, the temperature control may be less accurate and you risk overheating the floor.
  • Page 12 ECtemp 130 Thermal Examples of Details Approximate resist- flooring setting for ance 25 °C floor [m²K/W] temperature 0,05 8 mm HDF > 800 28 °C based laminate kg/m³ 0,10 14 mm beech 650–800 31 °C parquet kg/m³ 0,13 22 mm solid oak >...
  • Page 13 ECtemp 130 Installation Guide...
  • Page 14: Warranty

    All work will be invoiced in full if Danfoss is required to inspect or repair faults that have arisen as a result of any of the above. The Danfoss warranty shall not extend to products which have not been paid in full. Danfoss will, at all times, provide a rapid and effective response to all complaints and inquiries from our customers.
  • Page 15 ECtemp 130 Installation Guide...
  • Page 16: Disposal Instruction

    ECtemp 130 Disposal Instruction Installation Guide...
  • Page 17 ECtemp 130 Installation Guide...
  • Page 18 ECtemp 130 Installation Guide...
  • Page 19 Danfoss ECtemp 130 Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark 08091360 & AQ059486452134en-010203 Produced by Danfoss © 03/2023...
