Summary of Contents for Danfoss ECtemp 316

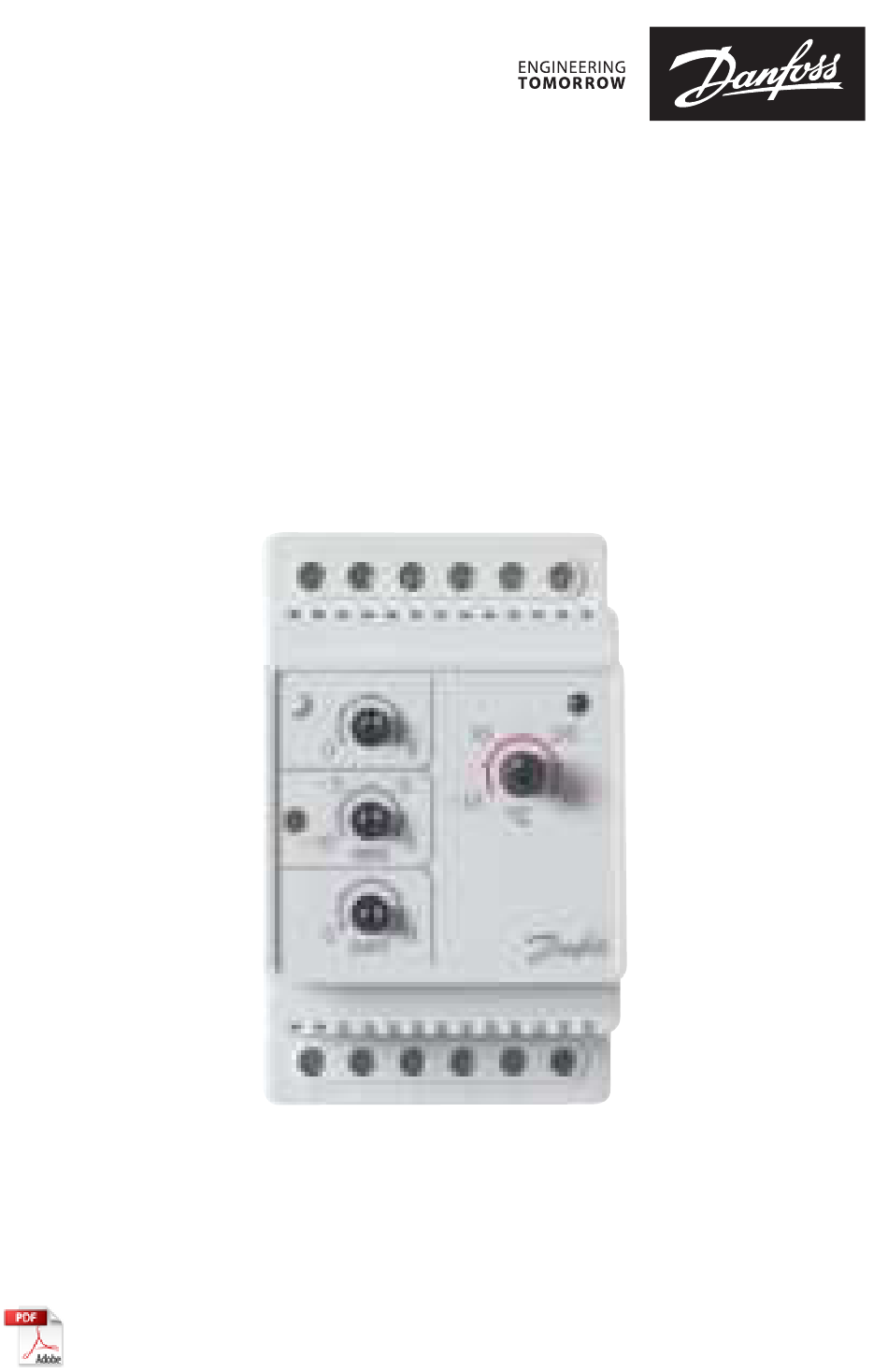

- Page 1 Installation Guide Danfoss ECtemp 316 Electronic Thermostat electricheating.danfoss.com...
-
Page 3: Table Of Contents
Disposal Instruction � � � � � � � � � � � � � � � � � 12 Introduction ECtemp 316 is an electronic thermostat to be installed in electric cabinets with DIN rail attachment. The thermostat must be installed via an all-pole disconnection switch. -
Page 4: Technical Specifications
Danfoss ECtemp 316 The thermostat has a button to adjust the temperature setting with a scale from -10 °C to +50 °C . An LED indicator shows standby periods (green light) and heating periods (red light). More information on this product can also be found at: ectemp�danfoss�com... -
Page 5: Safety Instructions
Danfoss ECtemp 316 Ball pressure temperature 75 °C Pollution degree 2 (domestic use) Type Storage temperature -20°C to +65°C IP class Protection class Class II - Dimensions 86 x 36 x 58 mm Weight 180 g The product complies with the EN/IEC Standard “Automatic electrical controls for household and similar use”:... -
Page 6: Mounting Instructions
Danfoss ECtemp 316 Please also note the following: • The installation of the thermostat must be done by an authorized and qualified installer according to local regulations. • The thermostat must be connected to a power supply via an all-pole disconnection switch. - Page 7 Danfoss ECtemp 316 Follow the steps below to mount the thermostat: Click the thermostat on to the DIN rail attachment. Connect the thermostat according to the connection diagram. Danfoss A/S IP20 Ulvehavevej 61 D316 -10T50 7100 Vejle Denmark The screen of the heating cable must be connected to the earth conductor of the power supply cable by using a separate connector.
-
Page 8: Settings
Danfoss ECtemp 316 Settings A Night set-back B Minimum temperature limiter C Hysteresis 3�1 Hysteresis When the thermostat is used to apply with either heat- ing systems or refrigerating systems, and the requested temperature is between -10 °C to +50 °C, then it is recom- mendable also to adjust the hysteresis C according to the requested regulating range. -
Page 9: Temperature Set-Back
Danfoss ECtemp 316 both an upper and lower temperature range in between which the thermostat allows the system to heat. The requested maximum temperature range has to be between -10 °C to +50 °C and the requested minimum temperature range has to be between -10 °C to +5 °C. -
Page 10: Warranty
All work will be invoiced in full if Danfoss is required to inspect or repair faults that have arisen as a result of any of the above. The Danfoss warranty shall not extend to products which have not been paid in full. Danfoss will, at all times, provide a rapid and effective response to all complaints and inquiries from our customers. - Page 11 WARRANTY CERTIFICATE The Danfoss warranty is granted to: Address Stamp Purchase date Serial number of the product Product Art. No. *Connected output [W] Installation Date Connection Date & Signature & Signature *Not mandatory...
-
Page 12: Disposal Instruction
Danfoss ECtemp 316 YEAR WARRANTY Disposal Instruction Installation Guide... - Page 13 Danfoss ECtemp 316 Installation Guide...
- Page 14 Danfoss ECtemp 316 Installation Guide...
- Page 15 Danfoss ECtemp 316 Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark Produced by Danfoss © 07/2022 088L8057 & AQ060186451965en-010102...
- Page 16 Product documentation 220 - 240 V~ 50-60 Hz -10 °C to +50 °C 16 A / 3680 W @ 230 V~ d Designed in Denmark for Danfoss A/S 7 0 3 4 6 6 2 4 8 0 3 4...
