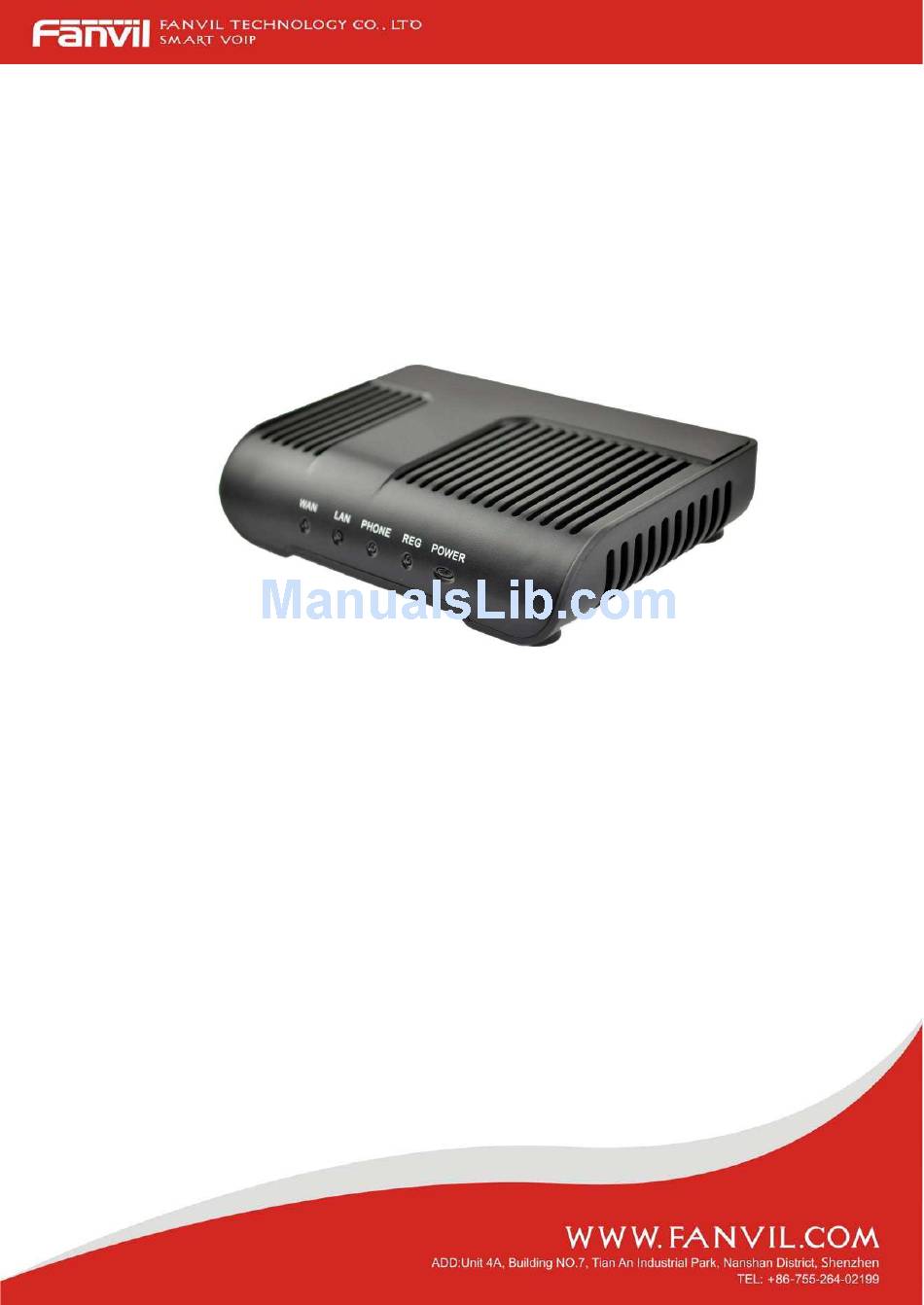

Fanvil Product User Manual
IP-Gateway

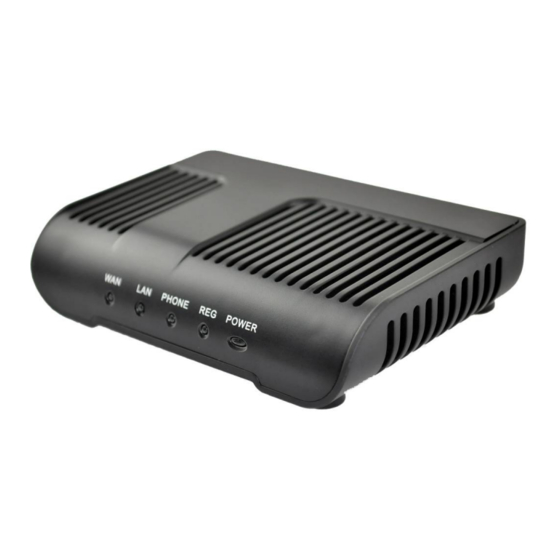

Model: A1
VersionÖV1.0.60.16
© 2005 Fanvil technology Co., Ltd
All rights reserved.
This document is supplied by Fanvil Technology Co., Ltd, No part of this document may be
reproduced, republished or retransmitted in any form or by any means whatsoever, whether
electronically or mechanically, including, but not limited to, by way of photocopying, recording,
information recording or through retrieval systems, without the express written permission of
Fanvil Technology Co., Ltd. Fanvil Technology Co., Ltd reserves the right to revise this document
and make changes at any time and without the obligation to notify any person and/or entity of
such revisions and/or changes. Product specifications contained in this document are subject to
change without notice.
http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fanvil A1
Summary of Contents for Fanvil A1
- Page 1 © 2005 Fanvil technology Co., Ltd All rights reserved. This document is supplied by Fanvil Technology Co., Ltd, No part of this document may be reproduced, republished or retransmitted in any form or by any means whatsoever, whether electronically or mechanically, including, but not limited to, by way of photocopying, recording, information recording or through retrieval systems, without the express written permission of Fanvil Technology Co., Ltd.
-
Page 2: Safety Notices
Do not install this device in an ill-ventilated place. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 3: Table Of Contents
..................5 ELCOME TO THE SINGLE PORT GATEWAY 1.1. Package Contents........................5 ..................6 NDERSTANDING OF SINGLE PORT GATEWAY 2.1. The positive of A1 single port gateway .................6 2.2. Indicator signs .........................7 2.3. Connector description ......................7 3. G ..........................9 ETTING TARTED 3.1. Connect the power and network ....................9 3.1.1. - Page 4 6.1.1. H ..........................48 ARDWARE 6.1.2. V ......................... 48 OICE FEATURES 6.1.3. N ........................48 ETWORK FEATURES 6.1.4. M ....................49 AINTENANCE AND MANAGEMENT 6.2. P ..............49 ARTICULARLY SUITABLE FOR SINGLE PORT GATEWAY 6.3. C ........................49 OMMON ROBLEMS http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1...
-
Page 5: Welcome To The A1 Single Port Gateway
2. A group of cable 3. A power adapter NOTE: if you use the non-A1 single port gateway comes with a power adapter, single port gateway A1 may cause damage or other injury. Specifications for the power adapter may difference between the different ship areasB If the power adapter provided with the product can not be used locally, please consult your local dealer. -
Page 6: Understanding Of A1 Single Port Gateway
Because this site has a wealth of features and related detailed configuration options, in your call to enjoy a stress free before you know your A1 single port gateway. 2.1. The positive of A1 single port gateway... -
Page 7: Indicator Signs
2.2. Indicator signs Name Meaning Description POWER Power LED Always light, has power, you can start using the A1 single port gateway. Registration Registered, the lights lit, the status registration fails, the light indicator flashes; do not use Notes Books, lights out. - Page 8 A1 single port gateway with two network interface itself: WAN port and LAN port, you can use the Internet connection into the WAN port or LAN port. Before inserting the power to read the manual carefully of “Safety." http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1...
-
Page 9: Getting Started
3. Getting Started Before you start using the A1 single port gateway, please install the following: 3.1. Connect the power and network 3.1.1. Connect the network During this step, make sure your environment already have broadband Internet access capability. -
Page 10: Connect The Power
3.1.2. Connect the power During this step, make sure your power supply connector and a single port gateway A1 outlet match, while A1 is also in line voltage and current required for a single port gateway. 1. The transformer connected to the DC port on the back of A1 single port gateway POWER jack 2. -
Page 11: A1 Basic Operation Of A Single Port Gateway Phone
4. A1 Basic operation of a single port gateway phone 4.1. Call transfer z Blind Transfer During a call, press FLASH (Flash) key, enter the number to be transferred * add and press ô # õ key to confirm, you can transfer the current call to third parties. (To... -
Page 12: With The Pstn User Calls
If you plug in the PSTN line up after the gateway, then you may hear pops or two, then you can not busy with a lifeline, but should wait a few seconds, pops, etc. to hear the same twice. At this point, you can rest assured that use. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 13: Web Configuration
5. Web configuration 5.1. Introduction of configuration 5.1.1. Ways to configure A1 gateway has three different ways to different users. Use phone keypad. Use web browser>recommendatory way?. Use telnet with CLI command. 5.1.2. Password Configuration There are two levels to access to phone: root level and general level. User with root level can browse and set all configuration parameters, while user with general level can set all configuration parameters except SIP (1-2) or IAX2’s that some... -
Page 14: Configuration Via Web
WAN port and LAN port, ON or OFF of DHCP mode of LAN port. Phone Number Shows the phone numbers provided by the SIP LINE 1-3 servers and IAX2. The last line shows the version number and issued date. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 15: Wizard
Explanation Please select the proper network mode according to the network condition. A1 gateway provide three different network settings: Static: If your ISP server provides you the static IP address, please select this mode, and then finish Static Mode setting. If you don’t know about parameters of Static Mode setting, please ask your ISP for them. - Page 16 It will be provided by ISP. Username Input your ADSL account. Password Input your ADSL password. Notice: ClickôFinishõbutton after finished your setting, gateway will save the setting automatically and reboot, After reboot, you can dial by the SIP account. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1...
-
Page 17: Network
Shows the time of getting MAC address Please select the proper network mode according to the network condition. A1 gateway provide three different network settings: Static: If your ISP server provides you the static IP address, please select this mode, and then finish Static Mode setting. If you don’t know about parameters of Static Mode setting, please ask your ISP for them. - Page 18 192.168.10.1 to 192.168.11.1) when system uses DHCP client to get IP in startup; if system uses DHCP client to get IP in running status and network ID is also same as LAN’s, system will refuse to accept the IP to configure WAN. So WAN’s active IP will be 0.0.0.0 http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1...
-
Page 19: Lan Config
Notice: If you choose the bridge mode, the LAN configuration will be disabled. 5.3.2.3. Qos Config The gateway support 802.1Q/P protocol and DiffServ configuration. VLAN functionality can use different VLAN IDs by setting signal/voice VLAN and data VLAN. The VLAN application of this device is very flexible. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... - Page 20 After enable VLAN, system will set packets with different type of VLAN ID. Undifferentiated means after using VLAN, both VoIP packets and other data packets Voice/Data VLAN will use the voice VLAN ID; tag differentiated means differentiated after using VLAN, VoIP(signal and voice) packets will http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1...
-
Page 21: Service Port
7) You must gain the IP with the Static mode when you set VLAN, otherwise can't gain the IP in the VLAN and also can not dial with point to point. 5.3.2.4. Service Port You can set the port of telnet/HTTP/RTP by this page. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... - Page 22 2?If you modify the port of Telnet and HTTP, you would better set the value more than 1024 because the port value less than 1024 is system port reserved. 3?if you set 0 for the HTTP port, it will disable HTTP service. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1...
-
Page 23: Dhcp Server
Set the default DNS server IP of the lease table; Click the Add button to submit and add this lease table Select name of lease table, click the Delete button will delete the selected lease table from DHCP lease table. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 24: Ntp
Select the Time zone according to your location. Time Out Set the time out, the default is 60 seconds. Select the NTP, and click Apply to make the SNTP Times effective. 5.3.3. VOIP 5.3.3.1. SIP Config Set your SIP server in the following interface. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... - Page 25 Input your SIP register account name. Password Input your SIP register password. Phone Number Input the phone number assigned by your VoIP service provider. Phone will not register if there is no phone number configured. Display Name Set the display name. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1...
- Page 26 It will decrease the server’s repeat authorization work, if it is enable. Enable/Disable keeps NAT of SIP alive. NAT Keep Alive If some server refuse to register with too short http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1...
- Page 27 For example, if the server is CISCO5300, you need to change to RFC2543; else phone may not cancel call normally. System uses RFC3261 as default. Transport Protocol Set transport protocols, TCP or UDP; RFC Privacy Set Anonymous call out safely; Support http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1...
-
Page 28: Stun Config
By STUN server, the gateway in private network could know the type of NAT and the NAT mapping IP and port of SIP. The gateway might register itself to SIP server with global IP and port to realize the device both calling and being called in private network. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 29: Dial Peer Setting
156 to replace 192.168.1.119 here. When you want to dial a long distance call to Beijing, you need dial an area code 010 before local phone number, but you can also dial number 1 instead of 010 http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 30: Dial Peer
Phone number in this blank, and then you need dial the phone number to realize calling to what the phone number is mapped. In the prefix matching, you need input your http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... - Page 31 Delete Length. SIP2 server will Phone number is XXXT; receive “3333” Destination 255.255.255.255 (0.0.0.2) and Alias is del. This means any phone No. that starts with your set phone number will be sent via SIP2 line after the first http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1...
- Page 32 XXXT and Alias is rep:xxx SIP1 server will your dialed phone receive number starts with your set “86106228” phone number, the first digits same as your set phone number will replaced alias number specified and New phone number will be send out. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1...
-
Page 33: Phone
Specify Input (MIC) Volume grade.Q Hands-free Volume Specify Hands-free Volume grade G729 Payload Set G729 Payload Length Length Handdown Time Specify the least reflection time of Handdown, the default is 200ms. Ring Type Select Ring Type Output Volume Specify Output (receiver) Volume grade. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 34: Call Service
If you select Ban Outgoing to enable it, and you can not dial out Outgoing any number. Enable Enable Call Transfer by selecting it. Call http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 35: Digital Map Configuration
1). End with “#”: dial your desired number, and then press #. 2). Fixed Length: the phone will intersect the number according to your specified length. 3). Time Out: After you stop dialing and waiting time out, system will send the number collected. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... - Page 36 0 to 9 seconds. Tn must be the last 2 characters of a dial plan. If Tn is not specified it is assumed to be T0 by default on all dial plans. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1...
-
Page 37: Maintenance
Config File Name Set configuration file’s name which need to update. System will use MAC as config file name if config file name keep blank. For example, 000102030405.Û Config Encrypt Input the Encrypt Key, if the configuration file is http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 38: Syslog Config
At present, the lowest level of debug information send to Syslog is info; debug level only can be displayed on telnet. Syslog Configuration Field name explanation Server IP Set Syslog server IP address. Server Port Set Syslog server port. MGR Log Level Set the level of MGR log. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 39: Config Setting
Guest, the gateway will reset all configurations except for VoIP accounts (SIP1-2 and IAX2) and version number. 5.3.5.4. Update You can update your configuration with your config file in this web page. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 40: Account Config
FTP/TFTP server. The configuration will be effective after the gateway is reset. Protocol Select FTP/TFTP server 5.3.5.5. Account Config You can add or delete user account, and change the authority of each user account in this web page http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 41: Reboot
General user only can add the user whose level is General. 5.3.5.6. Reboot If you modified some configurations which need the gateway’s reboot to be effective, you need click the Reboot, then the gateway will reboot immediately. Notice: Before reboot, you need confirm that you have saved all configurations.. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 42: Security
IP segment. MMI Filter Select it or not to enable or disable MMI Filter. Click Apply to make it effective. Notice: Do not set your visiting IP outside the MMI filter range, otherwise, you can not logon through the web. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 43: Firewall
Select it to Enable in_ access rule out access Select it to Enable out_ access rule enable Input/Output Specify current adding rule by selecting input rule or output rule. Deny/Permit Specify current adding rule by selecting Deny rule or Permit rule. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 44: Nat Config
NAT is abbreviated from Net Address Translation; it’s a protocol responsible for IP address translation. In other word, it is responsible for transforming IP and port of private network to public, also is the IP address mapping which we usually say. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 45: Nat Configuration
Set the IP address of device which is connected to LAN interface to do NAT mapping. Inside Port Set the LAN port of the NAT mapping Outside Port Set the WAN port of the NAT mapping Notice: After finish setting, click the Add button to add new mapping table; http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 46: Vpn Config
Field name explanation VPN IP Shows the current VPN IP address Select UDP Tunnel (VPN Tunnel) or VPN L2TP. You can choose only one for current state. After you select it, you’d better save configuration and reboot your device. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 47: Logout
Set User Name access to VPN PPTP Server VPN Password Set Password access to VPN PPTP Server 5.3.7. Logout Click LogoutBand you will exit web page. If you want to enter it next time, you need input user name and password again. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1... -
Page 48: Appendix
6. Appendix 6.1. Specification 6.1.1. Hardware Item A1 GATEWAY Adapter Input: 100-240V (Input/Output) Output: 12V 1A port 10/100Base- T RJ-45 for LAN 10/100Base- T RJ-45 for PC Operation 0 40 Temperature Relative Humidity 10 65% main chip Ralink MIPS 24KEC (320MHz) -
Page 49: Maintenance And Management
Support Syslog Support Auto Provisioning (upgrade firmware or configuration file) 6.2. Particularly suitable for A1 single port gateway Service Provider of telecom operators and (ITSP) Internet Telephony Large companies (for international and domestic long distance and / or internal... - Page 50 3ÚSure to enter the correct user name and password. 4ÚIf it does not work after the success dial up, make sure the IE browser's proxy server is set correctly. 5ÚPlease try to log multiple pages to confirm a Web server failure is not due. http://arttel.ru/shop/voip-shlyuzy/golosovoj-shlyuz-fanvil-a1...
