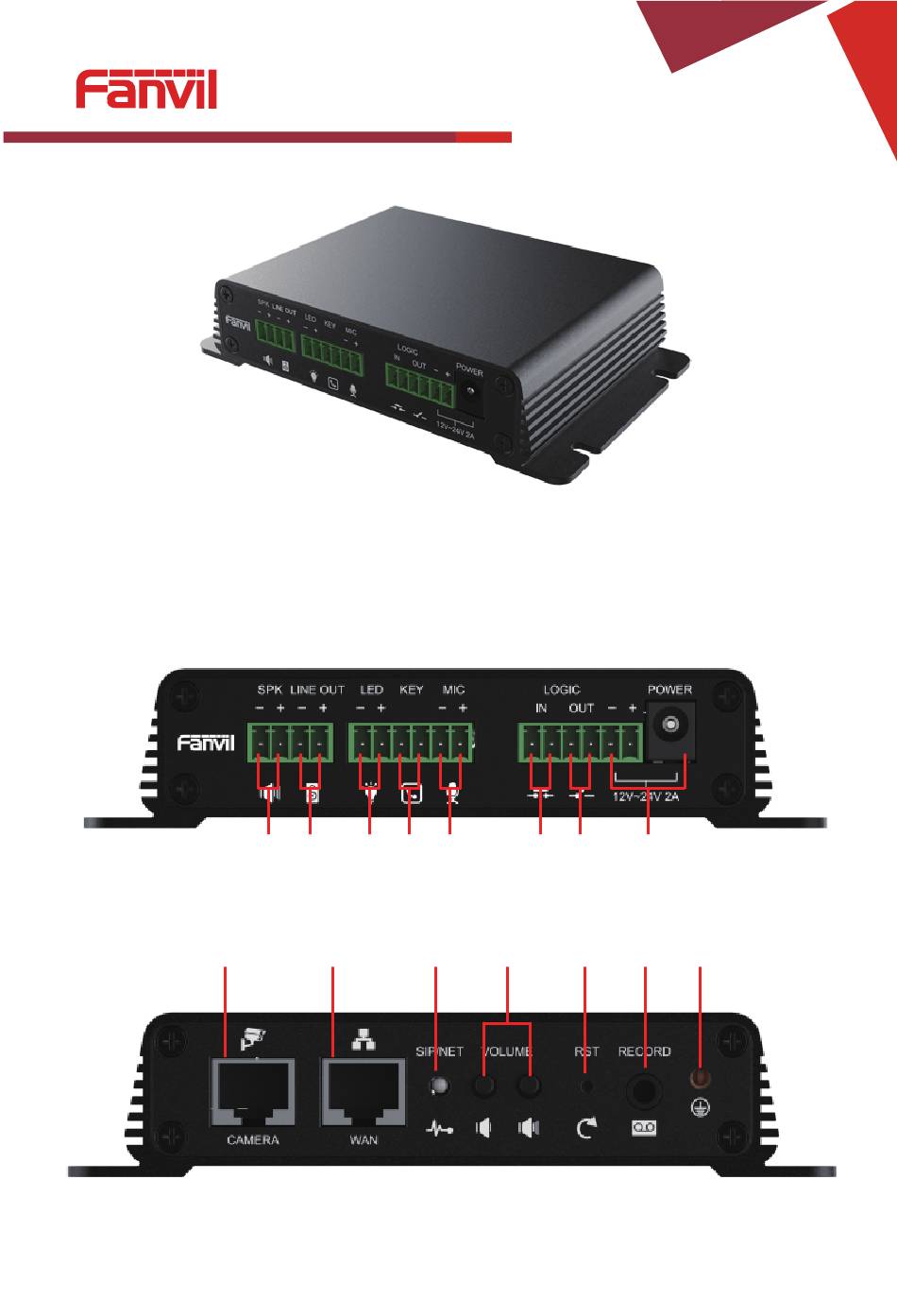

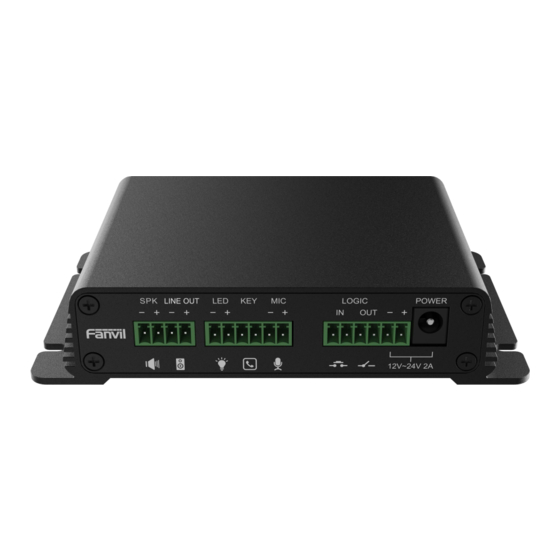

- Page 1 PA2S Quick installation Guide PA2S Port Definition ⑩ ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮...
- Page 2 PA2S Quick installation Guide Speaker port: according to the device input voltage adaptive output maximum power. 4Ω spkaker, POE/10W, 12V/10W, 18V/20W, 24V/30W. The greater the horn impedance, the smaller the output power. Suggested wire diameter: 18AWG or larger diameter. Line out port: audio signal output, for external headset or active speakers.
- Page 3 2. Searching device Method 1: Download address: http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe Open the iDoorPhone Network Scanner. Press the Refresh button to search the device and find the IP address. Method 2: Connect the speaker, by pressing the volume down key for 3 seconds (after 30 seconds after power on),the device automatically voice broadcast the machine’s IP address.
- Page 4 PA2S Quick installation Guide 3. Fast settings Step 1: Log in to the device page Use the web browser input IP (for example: http://192.168.1.128) access. The default user and password are admin. Step 2: Set SIP account Set SIP server address, port, user name, password and SIP user with assigned SIP account parameters.
- Page 5 PA2S Quick installation Guide Step 3: Set the volume (if not connected can skip) Intercom settings => Media Settings => Media Settings Set the device volume size, as shown below, click [Apply]. Hands-free speakerphone volume setting: normal call speaker volume size.
- Page 6 24V/2A DC 30W/4Ω Information on this document is subject to change without notice. Fanvil makes no warranties with Respect to this document, due to misuse this document is caused by indirect or incidental damages, Fanvil does not assume any responsibility.
