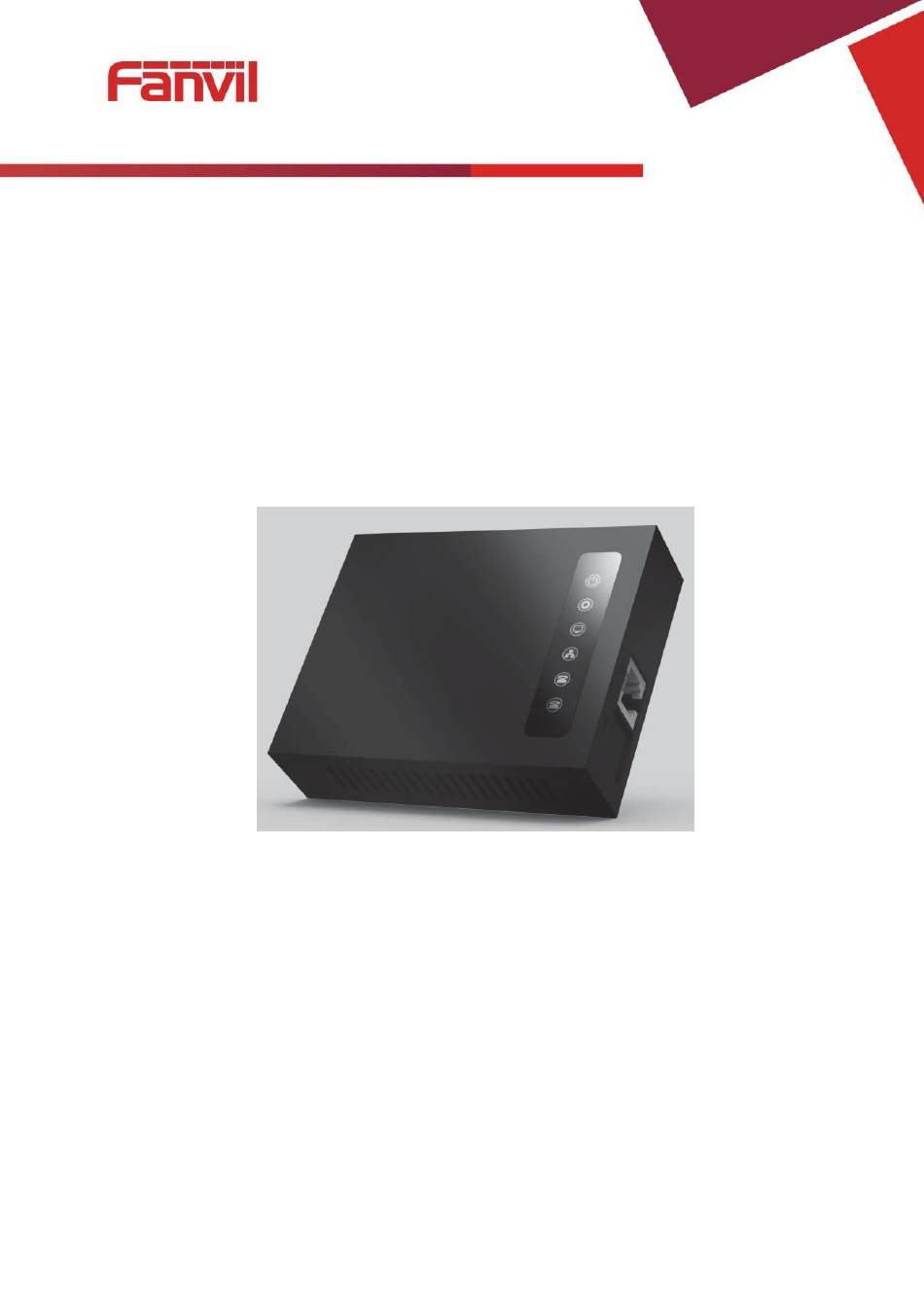

- Page 1 G100S VoIP Gateway User Manual...
- Page 2 Document VER Firmware VER Explanation Time V1.0 rc2.1.1136 Initial issue 20160808 Alter the router mode to LAN Port V1.1 1.4.1505 Fixed the functional parameters 20170908 Add the shortcut keys note...
-
Page 3: Table Of Contents
Table of Content 1 Safety Instruction........................5 2 About Device ..........................6 2.1 Product description ......................6 2.2 Device Appearance....................... 6 2.2.1 Interface and Buttons Description ................6 2.2.2 Indicator Lights Description ..................7 3 Getting Started ..........................8 3.1 Connecting the Power and the Network ................8 3.1.1 Connecting the Network.................... - Page 4 5.4.2.6 Reboot ........................20 5.4.2.7 Auto-Reboot ......................20 5.4.3 Network.......................... 21 5.4.3.1 WAN ......................... 21 5.4.3.2 LAN .......................... 22 5.4.3.3 Static Routes......................23 5.4.3.4 Diagnostics ......................23 5.4.3.4.1 Diagnostics ....................... 23 5.4.3.4.2 Network Packets Capture ................25 5.4.3.5 Check-WAN ......................25 5.4.3.6 QoS ..........................
-
Page 5: Safety Instruction
Safety Instruction Please use the external power supply that is included in the package. Other power supply may cause damage to the device, affect the behavior. Before using the external power supply in the package, please check the home power voltage. Inaccurate power voltage may cause fire and damage. -
Page 6: About Device

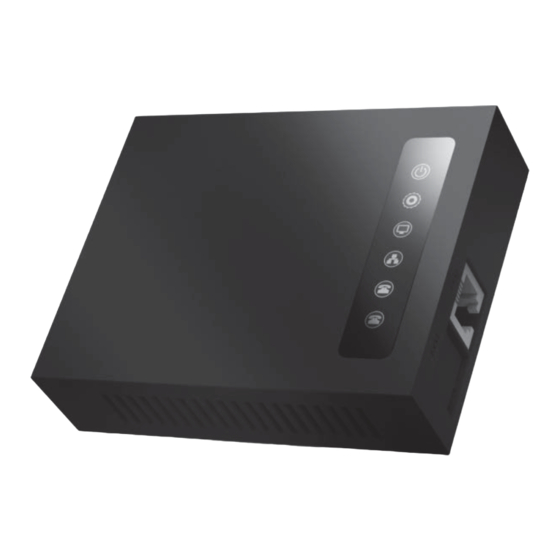

About Device Product description G100S is a new VoIP gateway, its core part is a proven solution for VOIP, and so the performance is stable and reliable. Compact appearance, intelligent software and simple interface, making IP gateway no longer limited to enterprise applications, but also for ordinary home users. -
Page 7: Indicator Lights Description
Indicator Lights Description Analog phone Registered Power After you insert the 12V DC power adapter to this device, power light starts to work, analog phone light comes on, then off! Registered light twinkles for a moment, WAN light and LAN light will be twinkling and then enter standby mode, when you pick up the analog phone, the analog phone light will keep on, when you hang up, the light off! Indicator... -
Page 8: Getting Started
In most of the cases, you need to set your device's network as the DHCP mode. (The default mode of the device is DHCP) G100S Connecting the Power Before proceeding with this step, please make sure your power connector and electrical outlet for the agreement, at the same time, the voltage and current are also conform to what the device need. -
Page 9: Basic Phone Operation
Basic Phone Operation Call Transfer a. Blind Transfer: During a conversation, you press FLASH (Flash) button, enter * and the number you want to transfer, then press [#] key to confirm, you can transfer the current call to the third party. (In order to use the feature, you must enable the gateway Call Waiting function and Call Transfer function) b. -
Page 10: Shortcut Key
again, you can switch back. You can only talk with one side while other parties cannot hear your conversation or talk with you. (To use this feature, you must enable the Call Waiting function of the gateway) Shortcut key The device can call the corresponding shortcut key through the RJ11 connected analog telephone to realize the related operation. -
Page 11: Web Configuration
Web Configuration Ways to Configure Device offers two different configure ways to different users: Use web browser: the computer users who are familiar with the operation of computers. (Recommended use) Use the telnet tool: command line users. Password Configuration The setting of the device’s browser and command-line can be divided into two login modes: user mode and supervisor mode, under the manager mode, you can view and edit all of the options;... -
Page 12: Web Pages Function Explanation
If you have not save your settings, the settings will be restored to the previous state unchanged when you boot phone next time .In order to save your settings, please click the <Save> button that belongs to configuration settings in the System , after this process ,your device configuration will take effect immediately without reboot again. - Page 13 Name Explanation System Model Displays device model. Hardware Version Displays device hardware version. Firmware Version Displays device software firmware version number. MAC Address Displays the current MAC address. Serial Name Displays device serial number. Local Time Displays the current system time Uptime Displays device runtime Load Average...
-
Page 14: Routes
Routes With this function, you can see the ARP table in the routes. The hosts IP MAC information that had connected with the device recently will be stored in the ARP list. System Log It displays activity information of the system. 14 / 41... -
Page 15: System
System System General Settings Name Explanation General Settings Local Time Displays the current system time Name of the device, similar to the computer’ name. The default is VoIP, you Hostname can modify it by yourself. Timezone Set the time zone of the area where you are. Logging 15 / 41... -
Page 16: Language
Name Explanation Logging System log buffer size Set the log buffer size. External system Set the address of the external log server. server External Log server port Set the port of the external log server. Log output level Set the level of log output. Cron log level Set the level of Cron log. -
Page 17: Time Synchronization
Time Synchronization Name Explanation Enable NTP client Set the enable or disable NTP client NTP server Set the NTP server candidates candidates Backup/Flash Firmware Name Explanation Backup/Restore Backup / Restore the current system configuration file or reset PandoraBox. (Squashfs only valid firmware) Flash new firmware image Keep settings... -
Page 18: Auto Provision
device will automatically restore to factory configuration after upgrade. Selects the firmware you need to update, then click <Flash image...>.It is set Image Name Explanation Export config Export current device configuration file. Import config Select the profile you need, then click <import config.txt>.It is set up. Auto Provision Common Setting Name... - Page 19 configuration file via Digest verification way, as long as the configuration on the server has been modified, or the terminal configure do not match with the configuration on the server, the terminal will to download and update. Configures the FTP server address. The server address can be a IP form, such as 192.168.1.1, it may in the form of domain names also, such as ftp.domain.com.
-
Page 20: Reboot
Name Explanation Enable TR069 Enable/Disable TR069 ACS Server Used for choosing ACS server type, the terminal supports telecommunications type and the general two kinds ACS server currently. ACS Server Enter the ACS server address. ACS User Enter the ACS server verification username. Enter the ACS server verification user password. -
Page 21: Network
Network Name Explanation Global Network Configuration Use the bridge mode (transparent mode): Bridge mode will make the device no Bridge Mode longer set the IP address for achieving the LAN port, LAN port and WAN port will be connected to the same network. Network Configuration (Basic Settings) The mode of device connects to the network .According to the network environment, you need to select the appropriate network mode. -
Page 22: Lan
Name Explanation Network configuration VPN Settings Choose the PPTP type, the L2T represents the VPN L2TP, and the PPTP represents Protocol VPN PPTP, you must only choose one of them as the current state. Server Address Configures the VPN server address. PAP/CHAP Configures the VPN server username. -
Page 23: Static Routes
corresponding lease are served. Static Routes Name Explanation Interface Configures the interfaces sent out by packets. Target Configures the destination IP address that packets needs to reach IPv4-Netmask Configures the subnet mask of target IP address When you Specify an IP address, the device will next transmit the data IPv4-Gateway packets meet the requirements to this address. - Page 24 Traceroute Detection Enter the destination address, which can be a legitimate IP address or a legitimate domain. Click <Traceroute> button, the device will send tracert packets to detect through which routes to arrive at the destination address, and the test results will be displayed in the box below. Network Detection Enter the destination address, which can be a legitimate IP address or a legitimate domain .
-
Page 25: Network Packets Capture
Network Packets Capture When you need to catch the packets that through the device wan port, click <Start> button, and then choose to save or open according to the dialog box . Check-WAN Name Explanation Enable Select on or off online detection Priority Level1 Select detection interface Health Monitor Interval... -
Page 26: Qos
Attempts Before WAN Recovery Number of attempts before configuration failure recovery Name Explanation Interfaces (WAN) Enable Set if the current interface to enable QoS service Classification Group Selects the interface classification group Set whether to enable the calculation of overhead functions for Calculate Overhead calculating packets, reduce upload and download rates to avoid link saturation... -
Page 27: Voip
Service Selects the application service of what the category groups need . Protocol The protocol can be selected as :all optional , TCP, UDP, IGMP, etc. Ports The port number can be selected as all or a custom specified port. Number of Bytes Fills the data need to be limited. - Page 28 Password Phone Configures the number registered to the SIP server, if it is empty, will not initiate Number registration. Configures the display name, when you make a call, the called party (did not Display Name give you a name) can display the configuration parameters that be allowed to input the English alphabet.
- Page 29 Name Explanation Settings (Advanced Settings) Enter the IP or FQDN address of outbound proxy server provided by the Outbound Proxy service provider. User Agent User Agent Terminal Set DTMF transmit mode there three types totally The default is In-band In-band DTMF Type RFC2833 SIP_INFO...
- Page 30 Outgoing Call If you configure this item, you can also call through a proxy server without Without registration. Registration Blocking Configures blocking anonymous call. Anonymous Call In order to adapt a platform, when you make the attended transfer and hang up, the session will end after the expire time , the device will send Transfer Timeout ‘bye’...
- Page 31 Convert URI Convert # to %23 when URI is sending massage. Enable Session Configures whether the device support rfc4028 function and refresh the Timer SIP sessions function. Subscribe Configures the effective time of subscription Expiration After successful registration, subscription information can subscribe to Enable Subscribe others state or voice mail, etc.
-
Page 32: Common
Common Name Explanation STUN Status Displays STUN penetrate judgment, true means STUN is penetrable, false means impenetrable. STUN Settings Server Address Configures SIP STUN Server Address. Server Port Configures SIP STUN server Port. The interval that STUN detects NAT type ; When NAT finds a connection have Binding Period no activity over a period of time, it will close the map, so you must send a packet out at intervals to ensure keep alive. -
Page 33: Dial Peer
Dial Peer Debug Name Explanation CM Log Level Configures the MGR Log Level. SIP Log Level Configures the SIP Log Level. 33 / 41... -
Page 34: Phone
Phone Audio Name Explanation Audio Settings Audio Codec 1 Selects DSP the first priority speech coding algorithm: G.711A/u,G.726-32, Type G.729 Audio Codec 2 Selects DSP the second priority speech coding algorithm: Type G.711A/u,G.726-32, G.729 Audio Codec 3 Selects DSP the third priority speech coding algorithm: G.711A/u,G.726-32, Type G.729 Audio Codec 4... -
Page 35: Call Feature
Hook Flash Min Set the minimum time of inserted spring detection. Time Hook Flash Max Set the maximum time of inserted spring detection. Time SLIC Impedance Set subscriber line interface circuit impedance, the default is 600 ohms. DTMF Payload Effective load of dual-tone multifrequency. Type Silence detection;... - Page 36 Name Explanation Call Feature Set the Hotline Number. If you set this number, as long as you goes off-hook, Hotline Number the device will automatically dial the hotline number and you cannot dial any other number. Warm Line Set automatically dial the hotline number time after off-hook .If you set this Timeout item as 0, device will call the hotline number immediately after you off-hook.
-
Page 37: Dial Rules
Transfer Black List Add / Delete blacklist. If you do not want to answer a certain number ,can add the number to this list, when the number in black list call your device, the device will reject it; It supports x format, that is, match to any one digit, such as 4xx represents these three digits number begin with 4 will be forbidden dial in;... -
Page 38: Dial Rules
Dial Rules Name Explanation Press # to Set the gateway to press the # key to finish receiving number. invoke dialing Use Fixed Set enable\disable use fixed length to dial. Length Set the gateway to receive a fixed length number; for example, if you set it as Fixed Length 11, when you finished dialing 11 digits number, the gateway automatically dial the 11 digits number. -
Page 39: Logout
[1-8]xxx, means all the four digits number(1000-8999) will be sent out immediately after receiving four digits number. 9xxxxxxx, means all number begin with 9 will be send out immediately after receiving eight digits number. 911, means the 911 number will be sent immediately after dialing. 99T4, means when you finish dialing 99 ,the number will be send out after 4 seconds. -
Page 40: Trouble Shooting
Trouble Shooting When the device does not work properly, users may try the following methods to recover the device or gather relative information and send an issue report to support. Reboot Device Users may reboot the device from power switch. Or, simply remove the power supply and restore it again. -
Page 41: Common Problems
Common Problems Symptom Solution 1. Check if the power switch is open. POWER light is not 2. Check if the power connection is correct. 3. Check if the power adapter is suited. 1. Check if the cable connection is valid, check if the PC network card indicator light is on.
