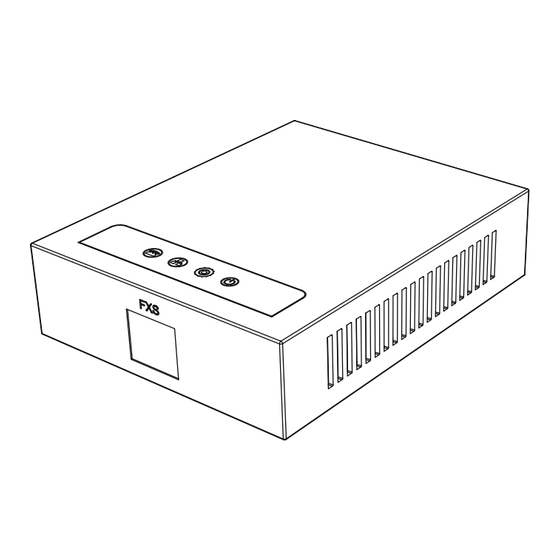

- Page 1 V1.0 ATA Gateway Quick Installation Guide...
-
Page 2: Packaging List
Packaging list Ethernet Cable ATA Gateway Quick Installation Guide Power Adapter Status indicator Icon Function Off: Power is On: Power invalid supply is normal Off: not On: connection Twinkle: netw twork connected is normal fai lure Off: SIP is On: registration... -
Page 3: Device Ports
Device ports DC 5V IN DC 5V IN Ports Icon Function Connecting to a power source to the Power DC 5V IN micro-USB or DC Jack Network WAN Connecting to the network. Connecting to the analog phone. Restore Default button. When the device is working properly, if you press this button (6 seconds) with a sharp object Reset... -
Page 4: Device Connection
Device connection Connect your device, please follow the steps below: 1．Insert a standard RJ11 telephone cable into the FXS port and connect the other end of the telephone cable to a standard touch-tone analog telephone. 2．Insert the ethernet cable into the WAN port of the device and connect the other end of the ethernet cable to an uplink port (a router or a modem, etc.) 3．Insert the power adapter into the device and connect it to a wall... - Page 5 Function Number Function Number Busy Call Start Reboot #**** #*91 Forward Enable Static No Ans Call #*100 #*92 Mode Forward Enable DHCP Always Call #*101 #*93 Mode Forward Enable PPPOE #*102 Voice Mail #*86 Mode Read WAN IP #*111 Call Back #*87 Read Phone #*222...
