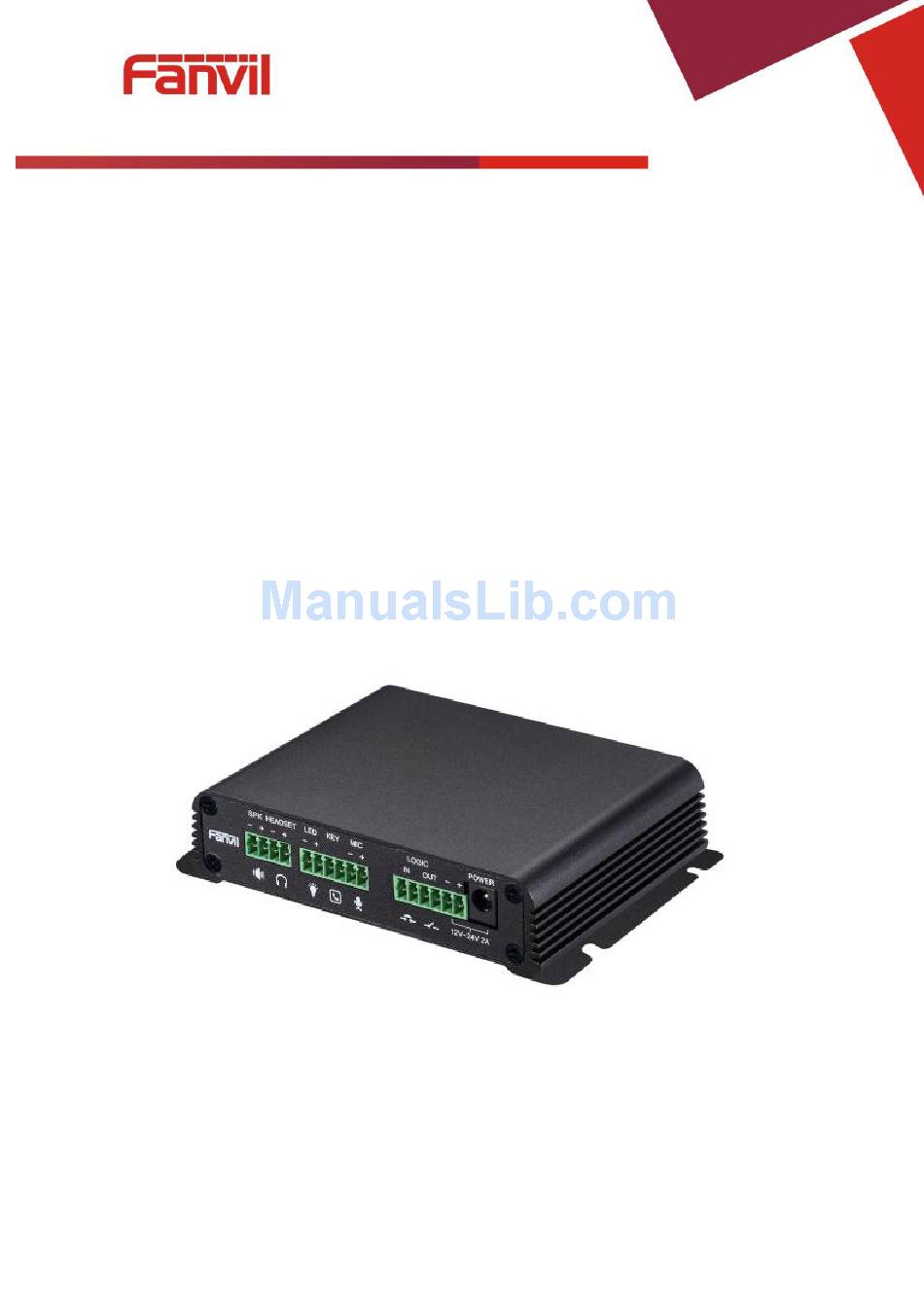

  • Page 1 [键入文字] PA2 SIP Video Intercom & Paging Gateway User Manual V2.0...
  • Page 2 [键入文字] Document VER Firmware VER Explanation Time V1.0 2.1.1.2924 Initial issue 20170804 V.2.0 2.1.1.2924 Increase the interface parameters, modify the company 20171027 address, increase the QIG IP scanning tool download address...

  • Page 3: Safety Notices

    [键入文字] Safety Notices 1. Please use the specified power adapter. If you need to use the power adapter provided by other manufacturers under special circumstances, please make sure that the voltage and current provided is in accordance with the requirements of this product, meanwhile, please use the safety certificated products, otherwise may cause fire or get an electric shock.
  • Page 4 [键入文字] Directory I. Product introduction............................1. Appearance of the product.......................... 2. Description..............................II. Start Using................................ 1. Confirm the connection..........................2. Quick Setting..............................III. Basic operation............................... 1. Answer a call..............................2. Call................................3. End call................................4. Security linkage............................5. Video linkage..............................IV.
  • Page 5 [键入文字] c) Video..............................d) MCAST..............................e) Action URL............................. f) Time/Date.............................. (5) Security settings............................(6) Function Key............................a) Function Key Settings..........................b) Advanced Settings..........................V. Appendix................................1. Technical parameters........................... 2. Basic Functions.............................

  • Page 6: Product Introduction

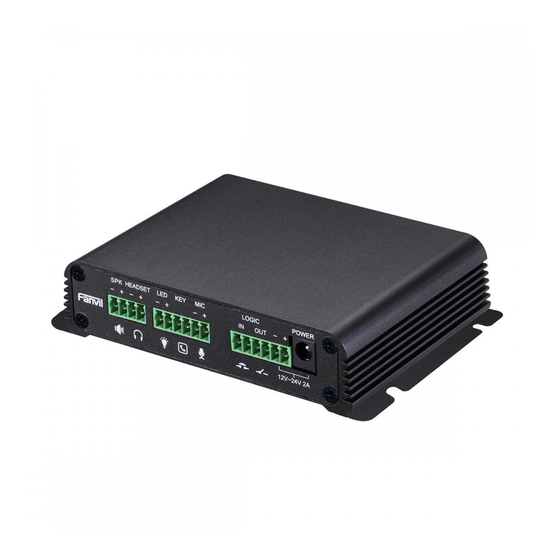

    [键入文字] I. Product introduction PA2 is a SIP video intercom & Paging device for industry application. The media stream transmission adopts standard IP/RTP/RTSP protocol. It inherits the advantages of the stability and the sound quality of FANVIL VOIP Phone. It is perfectly compatible with all the current SIP IPPBX /IMS platforms, such as Asterisk, Broadsoft, 3CX, Elastix, etc.

  • Page 7: Start Using

    [键入文字] Label Description Label Description Label Description Speaker interface Headset interface LED interface Function key interface Microphone interface Switch input interface Switch output interface Power input interface Camera interface Ethernet interface Registration/Network LED Volume control key ⑪ ⑫ Restore factory key Recording output interface Grounding screw ⑬...
  • Page 8 [键入文字] Label Explanation according to the device input voltage adaptive output maximum power; 4Ω speaker, POE / 10W, 12V / 10W, 18V / 20W, 24V / 30W. The greater the horn Speaker interface impedance, the smaller the output power. Suggested wire diameter: 18AWG or larger diameter.

  • Page 9: Quick Setting

    Or you can also use the "iDoorPhoneNetworkScanner.exe" software to find the IP address of the device.(download address http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe  Long press the volume plus key for 10 seconds, the speaker issued a rapid beep, and then quickly press the three volume plus the key, beep stopped. Wait 10 seconds, Successfully switch to dynamic IP after the system automatically voice broadcast IP address.

  • Page 10: Security Linkage

    [键入文字] after configured timer. 2. Call Configure Function key as hot key and then set up a number; after that you might press the Function key for making call to the configured extension(s). 3. End call Enable Release（You can set Function key to Release）key for hanging up feature to end call. 4.

  • Page 11: Password Configuration

    [键入文字] 2. Password Configuration There are two levels of access: root level and general level. A user with root level can browse and set all configuration parameters, while a user with general level can set all configuration parameters except server parameters for SIP. ...
  • Page 12 [键入文字] Information Field Name Explanation System Display equipment model, hardware version, software version, uptime, last uptime Information MEMInfo and system time. Shows the configuration information of WAN port, including connection mode of WAN Network port (Static, DHCP, PPPoE), MAC address, IP address of WAN port. SIP Accounts Shows the phone numbers and registration status of the 2 SIP LINES.
  • Page 13 “Save Link As.” Import Find the config file, and press Update to load it to the equipment. Configurations Reset to factory PA2 would restore to factory default configuration and remove all configuration defaults information. d) Upgrade Upgrade...

  • Page 14: Auto Provision

    [键入文字] Software upgrade Find the firmware, and press Update to load it to the equipment. e) Auto Provision Auto Provision Field Name Explanation Common Settings Show the current config file’s version. If the config file to be downloaded is higher Current than current version, the configuration would be upgraded.
  • Page 15 [键入文字] Password Configuration File Encryption key for the configuration file Encryption Key General Configuration File Encryption key for common configuration file Encryption Key Save Auto Provision Save the auto provision username and password in the phone until the server url Information changed DHCP Option...
  • Page 16 [键入文字] ACS User User name of ACS. ACS Password ACS Password. TR069 Auto Login Enable/Disable TR069 Auto Login. INFORM Sending Time between transmissions of “Inform”; the unit is second. Period f) FDMS FDMS Settings Enable FDMS Enable/Disable FDMS configuration The time to send sip Subscribe information to the FDMS server on a regular basis. FDMS Interval Unit seconds Doorphone Info Settings...
  • Page 17 [键入文字] Syslog is a protocol used to record log messages using a client/server mechanism. The Syslog server receives the messages from clients, and classifies them based on priority and type. Then these messages would be written into a log by rules which the administrator has configured. There are 8 levels of debug information.
  • Page 18 [键入文字] Some configuration modifications require a reboot to become effective. Clicking the Reboot button would lead to reboot immediately. Note: Be sure to save the configuration before rebooting. (2) Network a) Basic Field Name Explanation Network Status The current IP address of the equipment Subnet mask The current Subnet Mask 18 / 43...
  • Page 19 [键入文字] Default gateway The current Gateway IP address The MAC address of the equipment MAC Timestamp Get the MAC address’s time. Settings Select the appropriate network mode. The equipment supports three network modes: Network parameters must be entered manually and would not change. All Static IP parameters are provided by the ISP.
  • Page 20 [键入文字] Field Name Explanation VPN IP Address Shows the current VPN IP address. VPN Mode Enable VPN Enable/Disable VPN. L2TP Select Layer 2 Tunneling Protocol OpenVPN Select OpenVPN Protocol. (Only one protocol may be activated. After the selection 20 / 43...
  • Page 21 [键入文字] is made, the configuration should be saved and the phone be rebooted.) Layer 2 Tunneling Protocol (L2TP) L2TP Server Set VPN L2TP Server IP address. Address Authentication Set User Name access to VPN L2TP Server. Name Authentication Set Password access to VPN L2TP Server. Password Open VPN Files Upload or delete Open VPN Certification Files...
  • Page 22 [键入文字] Field Name Explanation Basic Settings (Choose the SIP line to configured) Display the current line status at page loading. To get the up to date line status, Line Status user has to refresh the page manually. 22 / 43...
  • Page 23 [键入文字] Username Enter the username of the service account. Display name Enter the display name to be sent in a call request. Authentication Name Enter the authentication name of the service account Authentication Enter the authentication password of the service account Password Activate Whether the service of the line should be activated...
  • Page 24 [键入文字] to a conference room on the server Server Conference Set the conference room number when conference type is set to be Server Number Transfer Timeout Set the timeout of call transfer process Enable Long Contact Allow more parameters in contact field per RFC 3840 Use Quote in Display Whether to add quote in display name Name...

  • Page 25: Basic Settings

    [键入文字] Enable PRACK Set the line to support PRACK SIP message Set the line to use DNS SRV which will resolve the FQDN in proxy server into a Enable DNS SRV service list Auto Change Port Enable/Disable Auto Change Port Keep Authentication Keep the authentication parameters from previous authentication Using TCP protocol to guarantee usability of transport for SIP messages above...
  • Page 26 [键入文字] Basic Settings Field Name Explanation SIP Settings Local SIP Port Set the local SIP port used to send/receive SIP messages. Registration Failure Retry Interval Set the retry interval of SIP REGISTRATION when registration failed. Enable Strict UA Match Enable or disable Strict UA Match STUN Settings Server Address STUN Server IP address...
  • Page 27 [键入文字] Features Field Name Explanation Basic Settings DND feature can refuse all incoming calls for all SIP lines, or for individual Enable DND SIP line. But the outgoing calls would not be affected Ban Outgoing If it is enabled, no outgoing calls can be made. Enable Intercom Mute If it is enabled, device would mute incoming calls during an intercom call.
  • Page 28 [键入文字] Audio Setting Field Name Explanation First Codec The first codec choice: G.711A/U, G.722, G.723.1, G.726-32, G.729AB Second Codec The second codec choice: G.711A/U, G.722, G.723.1, G.726-32, G.729AB, None Third Codec The third codec choice: G.711A/U, G.722, G.723.1, G.726-32, G.729AB, None Fourth Codec The forth codec choice: G.711A/U, G.722, G.723.1, G.726-32, G.729AB, None DTMF Payload Type The RTP Payload type that indicates DTMF.
  • Page 29 [键入文字] The Load speaker has two modes of selection: "panel speaker" or "external speaker"."Panel speaker" refers to the speaker and MIC are installed in the same shell, It is used for voice intercom, requires to get better two-way talking, so the Speaker audio output power need to be optimized, to ensure that the intercom sound quality;"External speakers"...
  • Page 30 [键入文字] Camera Connect Settings Field Name Explanation Local: Connect the original camera Connect Mode External: Connect to other manufacturers camera Video Capture(Local Mode) Auto: IRCUT switches according to the actual ambient light level of the camera IRCUT Mode Synchronization: The switching of the IRCUT is determined by the actual brightness of the IR lamp.
  • Page 31 [键入文字] Compensation In the environment changes in light and shade, the higher the sensitivity the AutoFill Sensitivity faster the video changes Video Encode(Local Mode) Explanation Field Name Encode Format Only H.264 encoding format is supported Main stream: support 720P Resolution Sub-stream: you can select CIF (352 * 288), D1 (720 * 576) The larger the value is, the more coherent the video would be got;...
  • Page 32 [键入文字] Connection Select external, click [Apply], restart the device mode IP Camera Settings(External Mode) Field Name Explanation User name External camera login required account External camera login password required Password Camera type Select the camera manufacturers IP address of the camera, please use the camera matching scan tool to obtain the IP IP address address Port...
  • Page 33 [键入文字] It is easy and convenient to use multicast function to send notice to each member of the multicast via setting the multicast key on the device and sending multicast RTP stream to pre-configured multicast address. By configuring monitoring multicast address on the device, the device monitors and plays the RTP stream which sent by the multicast address.
  • Page 34 [键入文字]  Web Settings: The multicast ss priority is higher than that of ee; ss has the highest priority. Note: when you press the multicast key for multicast session, both multicast sender and receiver would beep. Listener configuration  Blue part (name) "Group 1","Group 2"...

  • Page 35: Action Url

    [键入文字] than 3; multicast 1 priority is set up with 2, higher than ordinary call priority, device can answer the multicast message, at the same time, holding the other call.  Green part (Enable Page priority) Set whether to open multicast comparison function, multicast priority is pink part number. Following explains how to use: ...
  • Page 36 [键入文字] URL for various actions performed by the phone. These actions are recorded and sent as xml files to the server. Sample format is http://InternalServer /FileName.xml f) Time/Date Time/Date Field Name Explanation Network Time Server Settings Time Synchronized via Enable time-sync through SNTP protocol SNTP Time Synchronized via Enable time-sync through DHCP protocol...

  • Page 37: Security Settings

    [键入文字] 12-hour clock Set the time display in 12-hour mode Date Format Select the time/date display format Daylight Saving Time Settings Location Select the user's time zone according to specific area DST Set Type Select automatic DST according to the preset rules of DST, or you can manually input rules Offset The DST offset time Month Start...
  • Page 38 [键入文字] Field Name Field Name Input settings Input Detect Enable or disable Input Detect When choosing the low level trigger (Closed Trigger), detect the input port (low level) closed trigger. Trigger Mode When choosing the high level trigger (Disconnected Trigger), detect the input port (high level) disconnected trigger.

  • Page 39: Function Key

    When the input port is triggered will send a short Server Address message to the server, the message format is as follows: Alarm Info: Description=PA2;SIP User=;Mac=00:a8:34:68:23:d1;IP=172.18.2.243;port=Input1 (6) Function Key a) Function Key Settings  Key Event You might set up the key type with the Key Event.

  • Page 40: Hot Key

    [键入文字]  Hot Key You might enter the phone number in the input box. When you press the shortcut key, equipment would dial preset telephone number. This button can also be used to set the IP address: you can press the shortcut key to directly make a IP call.

  • Page 41: Advanced Settings

    [键入文字]  operation mechanism You can define the Function Key configuration with multicast address, port and used codec. The device can configure via WEB to monitor the multicast address and port. When the device make a multicast, all devices monitoring the address can receive the multicast data. ...

  • Page 42: Technical Parameters

    [键入文字] V. Appendix 1. Technical parameters Communication protocol SIP 2.0(RFC-3261) Main chipset Broadcom Speech Protocols flow Decoding G.729、G.723、G.711、G.722、G.726 10/100BASE-TX s Auto-MDIX, RJ-45 Speaker audio line signal output impedance 32 Ohm MIC(Optional) Sensitivity: -38dB, bias voltage 2.2V Speaker audio line signal output impedance 32 Ohm, single Headset(Optional) ended output voltage 1.2V, used for external headphones or active speakers...
  • Page 43 [键入文字]  External power supply  Supports two lines RTSP  button or remote volume adjustment  switch signal input and output  Talkback recording output  Default auto answer  Dynamic multicast function  Support for Function key interface ...
