  • Page 1 [键入文字] G200S VoIP Gateway User Manual...
  • Page 2 [键入文字] Safety Notices 1. Please use the power adapter that this device specified. If you have to use other manufacturers ‘power adapter because of the special circumstances, please make sure the voltage and current provided in accordance with the provisions of this device. At the same time, we device you to use the power adapter which passed the safety certification devices, otherwise may cause fire or get an electric shock.

  • Page 3: Table Of Contents

    [键入文字] TABLE OF CONTENT ABOUT DEVICE ..........................5 1. D .......................... 5 EVICE PPEARANCE 2. I ......................5 NDICATOR IGHTS ESCRIPTION 3. I ....................6 NTERFACE AND UTTONS ESCRIPTION II. GETTING STARTED ..........................7 1. CONNECTING THE POWER AND THE NETWORK ................7 1) Connecting the Network ......................
  • Page 4 [键入文字] d) QoS ............................25 VoIP ............................. 26 a) Line1 & Line2 ........................26 b) Common ..........................31 c) Dial Peer ..........................32 Phone ..........................33 a) Audio ........................... 33 b) Call Feature .......................... 34 c) Dial rules ..........................36 Logout ..........................

  • Page 5: About Device

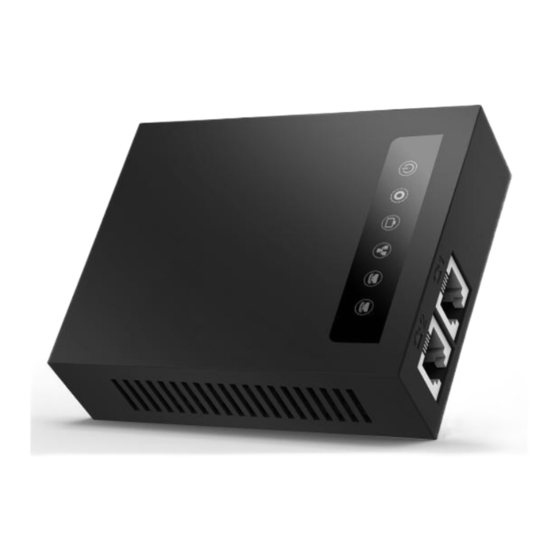

    [键入文字] About Device G200S is a new VoIP gateway, its core part is a proven solution for VOIP, and so the performance is stable and reliable. Compact appearance, intelligent software and simple interface, making IP gateway no longer limited to enterprise applications, but also for ordinary home users.

  • Page 6: Interface And Buttons Description

    [键入文字] Indicator lights Description Function Power is invalid. Power Light Power supply is normal. SIP is not registered. SIP Registered Light twinkle SIP registration is failed. SIP registration is successful LAN port is not connected. LAN Light twinkle LAN port is transmitting data. LAN port connection is normal.

  • Page 7: Getting Started

    DHCP mode. (The default mode of the device is DHCP) G200S b) No Broadband Router Please connect one end of the network cable to the device's WAN port and the other end connect to your broadband modem LAN port.

  • Page 8: Basic Phone Operation

    [键入文字] III. Basic Phone Operation 1. Call Transfer a) Blind Transfer： During a conversation, you press FLASH (Flash) button, enter * and the number you want to transfer, then press [#] key to confirm, you can transfer the current call to the third party. (In order to use the feature, you must enable the gateway Call Waiting function and Call Transfer function) b) Attended Transfer：...

  • Page 9: Web Configuration

    [键入文字] IV. Web Configuration 1. Ways to Configure G100S_VoIP gateway offers two different configure ways to different users: Use web browser: the computer users who are familiar with the operation of computers. ● (Recommended use) Use the telnet tool: command line users. ●...

  • Page 10: Web Pages Function Explanation

    [键入文字] 4. WEB Pages Function Explanation (1) Status a) Overview Overview Name Explanation System Model Displays device model. Hardware Version Displays device hardware version. Firmware Version Displays device software firmware version number. MAC Address Displays the current MAC address. Serial Name Displays device serial number.

  • Page 11: B) Routes

    [键入文字] Load Average Displays the current average load value MEM Info Displays the current memory status Network（WAN Status） Connection Type Displays the current networking way. IP Address Displays the current IP address. Subnet Mask Displays the current subnet mask. Default Gateway Displays the default gateway.

  • Page 12: System

    [键入文字] (2) System a) System  General Settings Name Explanation General Settings Local Time Displays the current system time Name of the device, similar to the computer’ name. The default is VoIP, you can Hostname modify it by yourself. Timezone Set the time zone of the area where you are.
  • Page 13 [键入文字]  Logging Name Explanation Logging System log buffer size Set the log buffer size. External log system server Set the address of the external log server. External Log server port Set the port of the external log server. Log output level Set the level of log output.

  • Page 14: B) Administration

    [键入文字] b) Administration In this interface, you can modify the current user's password. c) Time Synchronization 14 / 41...

  • Page 15: D) Backup/Flash Firmware

    [键入文字] Time Synchronization Name Explanation General Current system time Displays the current system time. How long time the device request to the server to update, the default Update interval(in seconds) time less than 600 seconds. Count of time Set the number of time, space is unlimited length. measurements Clock Adjustment Offset frequency...

  • Page 16: E) Auto Provision

    [键入文字] Flash new firmware image Preserving configuration that currently set. If the option is not selected, the device Keep settings will automatically restore to factory configuration after upgrade. Image Selects the firmware you need to update, then click <Flash image...>.It is set up. Name Explanation Configuration...
  • Page 17 [键入文字] Common Setting Name Explanation Displays the version number of current system configuration file, if the Terminal founds the CFG configuration file that has downloaded same with configuration file Configuration that are running, the device will not run it. Or if the terminal matches configuration File Version file via Digest verification way, as long as the configuration on the server has been modified, or the terminal configure do not match with the configuration on the...
  • Page 18 [键入文字] TR069 Setting Name Explanation Enable TR069 Enable/Disable TR069 Used for choosing ACS server type, the terminal supports telecommunications and ACS Server type the general two kinds ACS server currently. ACS Server URL Enter the ACS server address. ACS User Enter the ACS server verification username.

  • Page 19: F) Debug

    [键入文字] f) Debug Syslog Set Name Explanation Server IP Configures syslog server IP or domain name. Server port Configures syslog server ports. Enable Syslog Configures to enable/disable syslog. CM Log Level Configures the MGR Log Level. SIP Log Level Configures the SIP Log Level. g) Reboot Clicking the <Execute Restart>...

  • Page 20: Network

    [键入文字] (3) Network a) WAN Name Explanation Global Network Configuration Use the bridge mode (transparent mode): Bridge mode will make the device no longer Bridge Mode set the IP address for achieving the LAN port, LAN port and WAN port will be connected to the same network.
  • Page 21 [键入文字] Network Configuration（Basic Settings） The mode of device connects to the network .According to the network environment, you need to select the appropriate network mode. The device offers three modes: If your ISP server provides a fixed IP address, you can select this mode. After selecting, you must fill in a static table: Static IP address / Subnet Mask / Gateway / Static IP DNS and other related information.

  • Page 22: B) Static Routes

    [键入文字] b) Static Routes Name Explanation Interface Configures the interfaces sent out by packets. Target Configures the destination IP address that packets needs to reach IPv4-Netmask Configures the subnet mask of target IP address When you Specify an IP address, the device will next transmit the data packets meet IPv4-Gateway the requirements to this address.
  • Page 23 [键入文字]  Traceroute Detection Enter the destination address, which can be a legitimate IP address or a legitimate domain. Click <Traceroute> button, the device will send tracert packets to detect through which routes to arrive at the destination address, and the test results will be displayed in the box below. ...
  • Page 24 [键入文字]  Network Packets Capture When you need to catch the packets that through the device wan port, click <Start> button, and then choose to save or open according to the dialog box . 24 / 41...

  • Page 25: D) Qos

    [键入文字] d) QoS Name Explanation Enable Set if the current interface to enable QoS service Classification Selects the interface classification group Group Calculate Set whether to enable the calculation of overhead functions for calculating packets, Overhead reduce upload and download rates to avoid link saturation Half-duplex Set whether to enable half duplex mode.

  • Page 26: Voip

    [键入文字] Classification Rules Target Selects the target priority Source Host Selects a specific IP as the source host Destination Host Selects a specific IP as the destination host Server Selects the application service of what the category groups need . Protocol The protocol can be selected as :all optional , TCP, UDP, IGMP, etc.
  • Page 27 [键入文字] Server Port Configures SIP registration server signaling ports. Authentication User Configures SIP registration account. Authentication Configures SIP registration password. Password Configures the number registered to the SIP server, if it is empty, will not Phone Number initiate registration. Configures the display name, when you make a call, the called party (did not Display Name give you a name) can display the configuration parameters that be allowed to input the English alphabet.
  • Page 28 [键入文字] Line Settings Name Explanation Settings（Advanced Settings） User Agent User Agent Terminal Set DTMF transmit mode，there three types totally ：The default is In-band  In-band  RFC2833 DTMF Type  SIP_INFO Different service providers may offer different modes. Server Type Selects signaling encryption type or special server type Server Name Names the server.
  • Page 29 [键入文字] Configures the MWI number，achieve Listen to achieve sip voicemail notification MWI Number and listening . Outgoing Call If you configure this item, you can also call through a proxy server without Without registration. Registration Blocking Configures blocking anonymous call. Anonymous Call In order to adapt a platform, when you make the attended transfer and hang up, the session will end after the expire time , the device will send ‘bye’...
  • Page 30 [键入文字] server. Convert URI Convert # to %23 when URI is sending massage. Enable Session Configures whether the device support rfc4028 function and refresh the SIP Timer sessions function. Subscribe Configures the effective time of subscription Expiration After successful registration, subscription information can subscribe to others Enable Subscribe state or voice mail, etc.

  • Page 31: B) Common

    [键入文字] b) Common Common Name Explanation STUN Status Displays STUN penetrate judgment, true means STUN is penetrable, false means impenetrable. STUN Settings Server Address Configures SIP STUN Server Address. Server Port Configures SIP STUN server Port. The interval that STUN detects NAT type ; When NAT finds a connection have no Binding Period activity over a period of time, it will close the map, so you must send a packet out at intervals to ensure keep alive.

  • Page 32: C) Dial Peer

    [键入文字] Receive Call Only Configures whether match UA strictly. from UA c) Dial Peer 32 / 41...

  • Page 33: Phone

    [键入文字] (5) Phone a) Audio Audio Settings(Port1 or Port2) Name Explanation Audio Settings Audio Codec 1 Type Selects DSP the first priority speech coding algorithm: G.711A/u,G.726-32, G.729 Selects DSP the second priority speech coding algorithm: G.711A/u,G.726-32, Audio Codec 2 Type G.729 Audio Codec 3 Type Selects DSP the third priority speech coding algorithm: G.711A/u,G.726-32, G.729...

  • Page 34: B) Call Feature

    [键入文字] SLIC Impedance Set subscriber line interface circuit impedance, the default is 600 ohms. DTMF Payload Type Effective load of dual-tone multifrequency. Silence detection; if it is enabled VAD, G.729 payload length cannot be set higher Enable VND than 20ms b) Call Feature On this page, you can set the hotline, call transfer, call waiting, three way call, black list, Blocking list and so on.
  • Page 35 [键入文字] number. Warm Line Set automatically dial the hotline number time after off-hook .If you set this item Timeout as 0, device will call the hotline number immediately after you off-hook. No Answer Time Set the no answer time. If you selected this item, the device will reject any incoming calls, the caller will be Do Not Disturb prompted that the other side gateway is unavailable;...

  • Page 36: C) Dial Rules

    [键入文字] Call limit, set the number prefix form : if 010 as configured number prefix, you will hear busy tone and be prompted to hang up when you dial 010,so you cannot continue dial: if 0 as configured number prefix, you will cannot dial all numbers begin with 0; It supports x form, that is, match any one digit, such as 4xx represents all three digit number begin with 4 will be forbidden to dial out;...
  • Page 37 [键入文字] Invoke Calling Enable/disable calling after timeout. After Timeout Set the timeout calling length in seconds. Gateway default is 5 seconds, that is , when the gateway received a number, it will deem that you have finished dialing the Timeout number after you have not continue dialing a number in 5 seconds ,and it will dial the received number.

  • Page 38: Logout

    [键入文字] 9911x.T4, means when you finish dialing a number begin with 9911, 5 digits at least, it will be sent out after 4 seconds. Other ways is unchanged. Note: Press # to invoke dialing, Use fixed length, Invoke Calling after Timeout, Digital Rules table can be used simultaneously, as long as when you finish dialing a number, the number satisfies any of these judgments ,the device will end receiving number and send the number out.

  • Page 39: C) Network Features

    [键入文字]  SIP supports SIP domain, SIP authentication (none, basic, MD5), DNS, point to point(DIALPEER setting and IP call) call  SIP can register two SIP accounts simultaneously. Using Pubic Server / Private server, you can make a call with any account ...

  • Page 40: Using Place

    [键入文字] 2. Using Place  The telecom operators and (ITSP) network telephone service providers  Large companies (for international and domestic long-distance call or internal communications, mainly in free call way)  Small and medium enterprises who have import and export business , such as foreign travel agencies, studying abroad intermediary organization, immigration agencies intermediary organization and so ...
  • Page 41 [键入文字] 5. Please try to log more websites to confirm if it is because of a Web server failure. 41 / 41...
