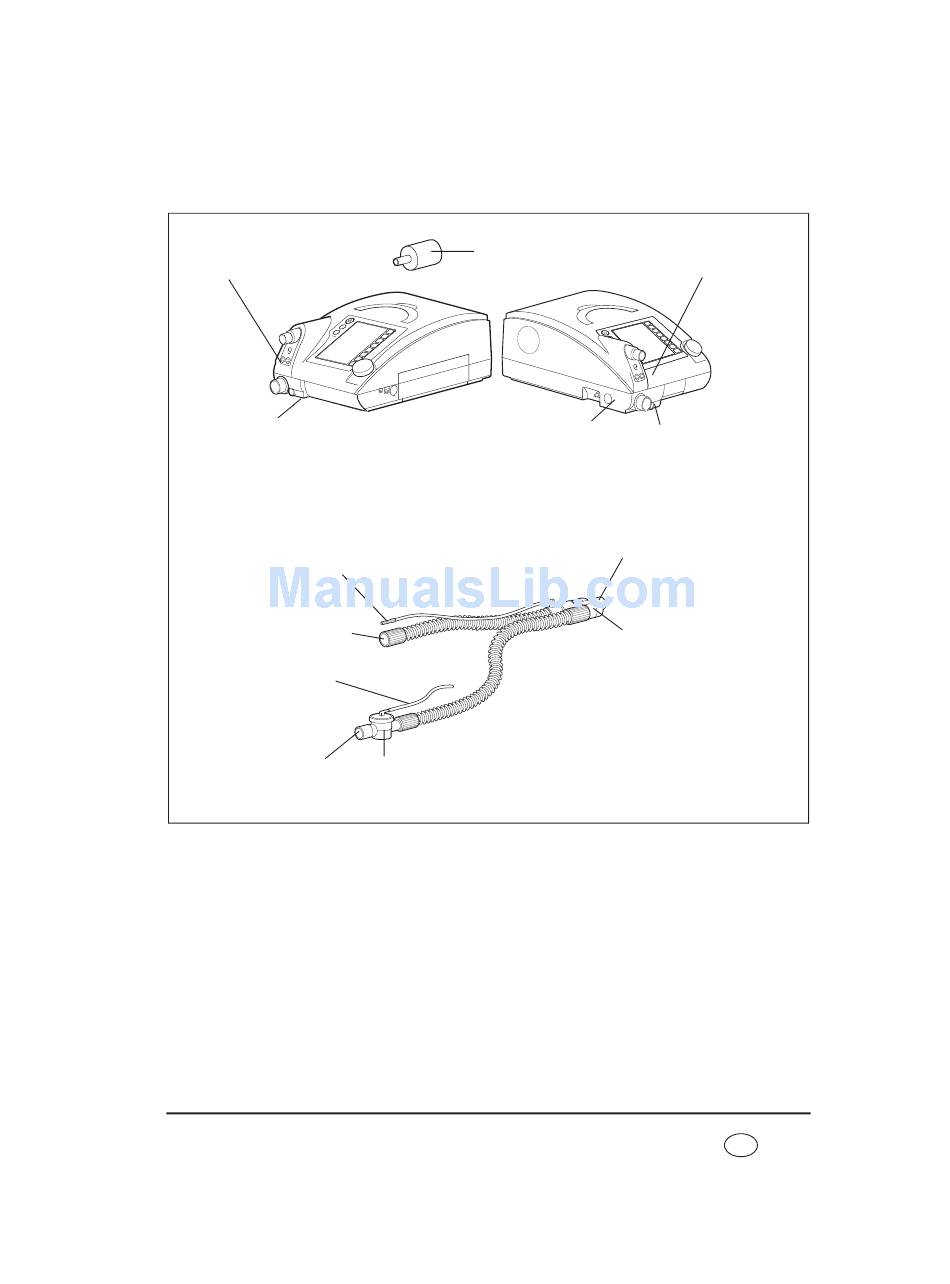

Therapy device, double patient circuit with patient valve
(VENTIlogic LS only)
36 Connection for pressure-
measurement tube
(marked blue)
35 Connection for O sensor
2
48 Pressure-
measurement tube
(marked blue)
47 Connection for
device outlet port
46 Valve control
tube
45 Connection for
device inlet port
35 Connection for O sensor
2
For connecting an oxygen sensor which can be
used to measure oxygen concentration in
respiratory air (only with patient circuits with a
patient valve).
36 Connection for pressure-
measurement tube (marked blue)
For connecting the pressure measuring tube to
the device.
37 Test adapter
40 Opening for
exhaled air
41 Double patient circuit
44 Patient valve
37 Test adapter
Required for the function check of the therapy
device.
38 Connection for valve control tube
For connecting the valve control tube to the
device.
39 Device connection for patient valve
For connecting the patient valve to the device
inlet port of the therapy device.
38 Connection for
valve control tube
39 Device connection for
patient valve
42 Connection
for patient
43 Y-adapter
Overview EN 9
