Weinmann VENTIlogic LS Instructions For Use Manual page 7

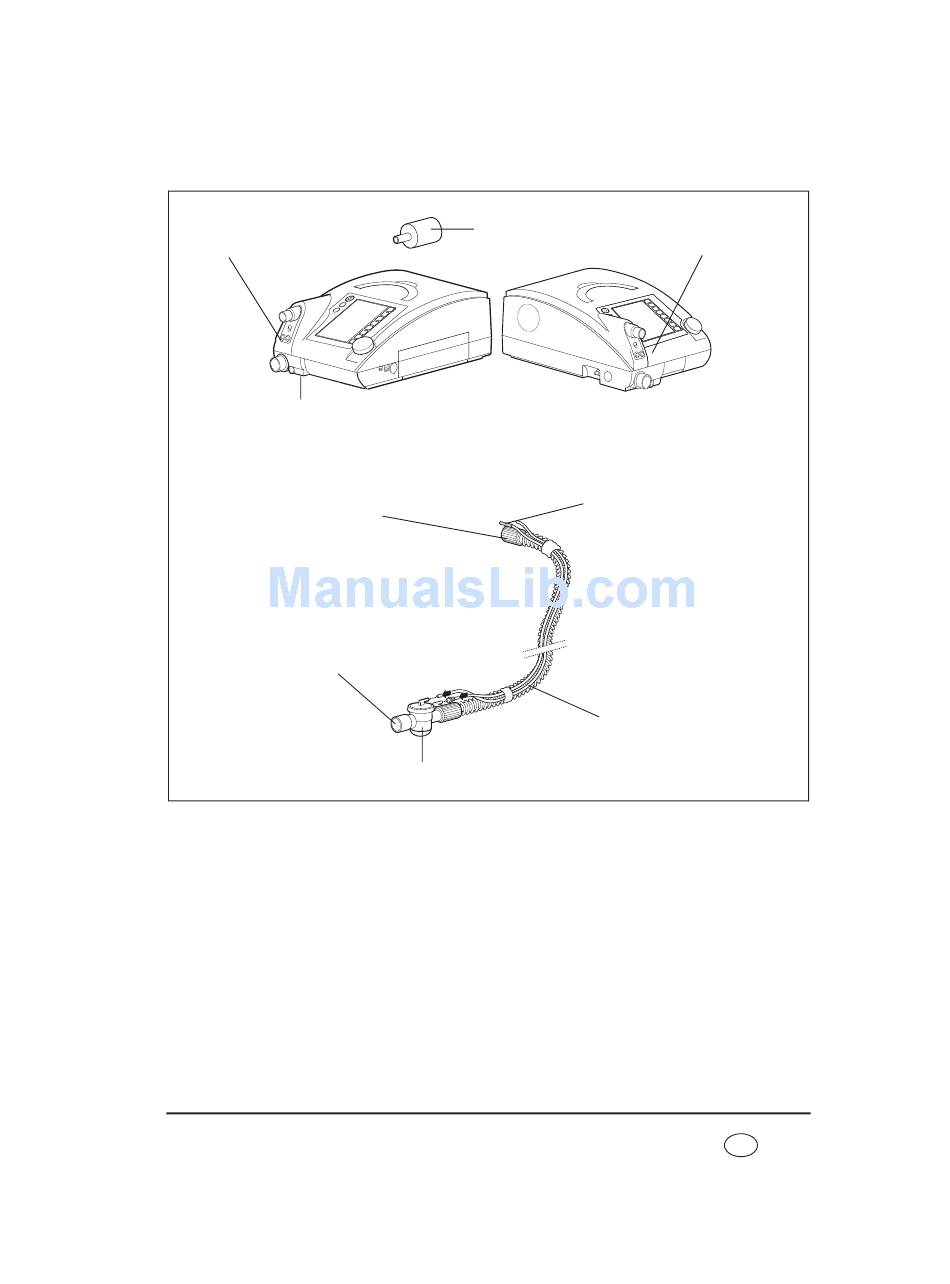

Therapy device, single patient circuit with patient valve
26 Connection for pressure
measuring tube (marked
blue)
25 Connection for O sensor
2
34 Connection for
device outlet port
33 Connection for
patient
Key
25 Connection for O sensor
2
For connecting an oxygen sensor which can be
used to measure oxygen concentration in
respiratory air (only with patient circuits with a
patient valve).
26 Connection for pressure measuring
tube (marked blue)
For connecting the pressure measuring tube to
the device.
27 Test adapter
29 Single patient circuit
32 Patient valve
27 Test adapter
Required for the function check of the therapy
device.
28 Connection for valve control tube
For connecting the valve control tube to the
device.
29 Single patient circuit
Delivers respiratory air to the patient.
28 Connection for
valve control tube
30 Pressure-
measurement
tube (marked
blue)
31 Valve control
tube
Overview EN 7
