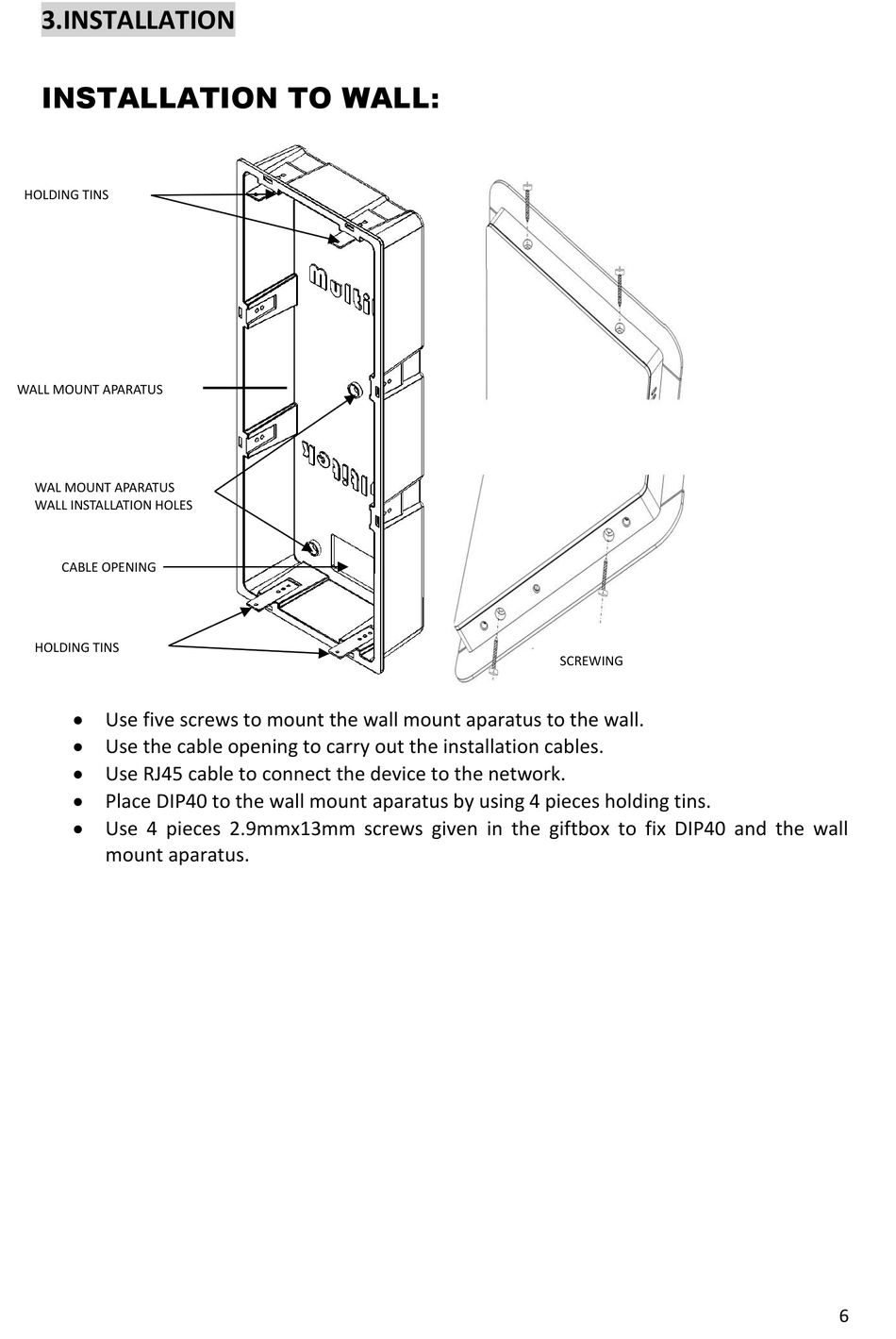

3.INSTALLATION

INSTALLATION TO WALL:
HOLDING TINS
WALL MOUNT APARATUS
WAL MOUNT APARATUS
WALL INSTALLATION HOLES
CABLE OPENING
HOLDING TINS
 Use five screws to mount the wall mount aparatus to the wall.
 Use the cable opening to carry out the installation cables.
 Use RJ45 cable to connect the device to the network.
 Place DIP40 to the wall mount aparatus by using 4 pieces holding tins.
 Use 4 pieces 2.9mmx13mm screws given in the giftbox to fix DIP40 and the wall
mount aparatus.
SCREWING
