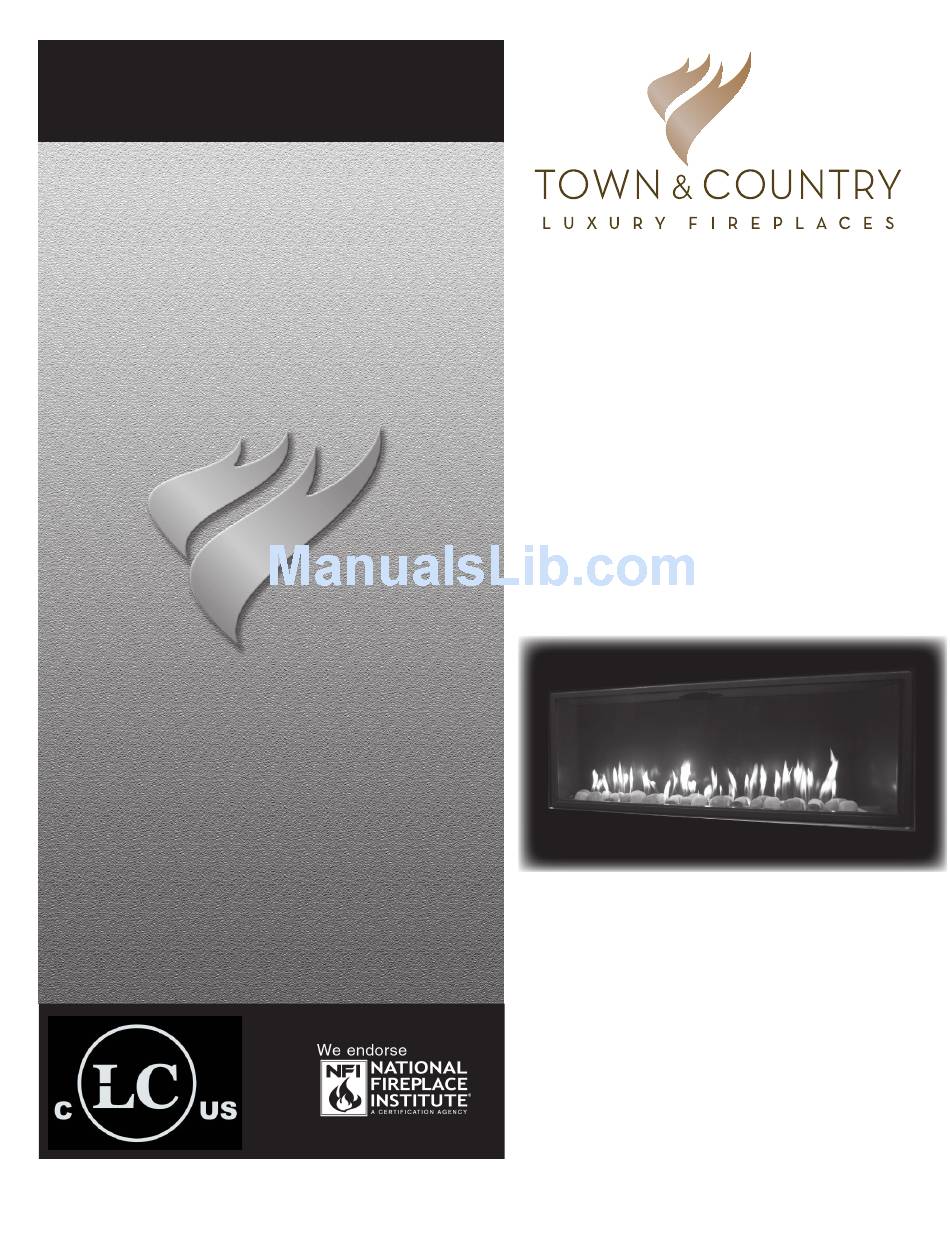

Instruction Manual
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation
and Operating Instructions supplied with the fireplace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
150115-16
TCWS.54DST
TRANQUILITY
BURNER KIT
INSTRUCTIONS
PART# TCWS.54NGST04D
For TCWS.54DST
Series D
Fireplaces
TCWS.54NGST04D
5056.425183D
Advertisement
Table of Contents
Related Manuals for Town & Country Fireplaces TCWS.54NGST04D
Summary of Contents for Town & Country Fireplaces TCWS.54NGST04D
- Page 1 Operating Instructions supplied with the fireplace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions. TCWS.54DST TRANQUILITY BURNER KIT INSTRUCTIONS PART# TCWS.54NGST04D For TCWS.54DST Series D Fireplaces 150115-16 TCWS.54NGST04D 5056.425183D...
-
Page 2: Contents Of Package
Contents of Package 3.4 LBS SAND HARDWARE PACK PILOT ROCK BURNER ASSEMBLIES BURNER TRAY ASSEMBLY PEBBLE SETS SECONDARY FLOOR HALVES WITHOUT LIGHTS TRAY LEGS TCWS.54NGST04D_150115-16... - Page 3 Tranquility Burner Installation ATTACH HERE AND ON OPPOSITE SIDE If conver ting to propane see Fig #1 conversion instructions on page #8 before proceeding. Install one side of the secondary floor as shown. Repeat with the other side but do not put in the two center screws until you put the center tray leg in place.
- Page 4 Fig #4 NOTE: check air shutter for correct fuel setting before proceeding further. Both burners are the same. Fully closed for natural gas. 13/64 (0.2)” open for LP. Install burners as shown in Fig. #4. Be sure to engage the venturis onto the orifices in the manifold and rest burners together on the center tray leg.
- Page 5 Fig #7 Install burner tray as shown in Fig. #7 using 8 screws. Secure tray around pilot first then the other 6 screws. SECURE PILOT HERE FIRST Fig #8 Place sand into the burner tray and brush smooth. Use caution not to get sand near the burner ports.
- Page 6 Each rock has a slot in it’s base and is Fig #13 Fig #9 marked with a letter and an arrow. (Fig. #9) Place each rock as per the following Fig #10 Fig #14 photographs. Start from the right hand side of the burner.
- Page 7 11. Place the fifth set of rocks randomly Fig #19 Fig #17 around the burners in the sand as desired. 12. Place the pilot rock over the pilot with the opening facing the center of the burner . Fig #18 Fig #20 Fig.
-
Page 8: Propane Conversion Kit
Propane Conversion Fig #23 PROPANE CONVERSION KIT If the unit is to be used on propane convert as follows using the compo- nents supplied with this burner: CAUTION The gas supply and electrical power shall be shut off before proceeding with the conversion. - Page 9 6. Slide the pilot adjustment band over and Fig #28 Fig #29 ensure that the hole in the orifice band is showing. Fig. #28 shows NG position Fig. #29 shows LP position. Fill in the date and the name of the LP POSITION NG POSITION person who performed the conversion...
-
Page 10: Gas Pressure Check
Gas Pressure Check Note: To test the gas pressure, turn off the gas supply before removing the plug from the supply pressure test port or manifold pressure test port. Verify gas pressures with the fireplace lit and on the highest setting. If installed, remove all media and the Fig #30 burner tray. -
Page 11: Burner Flame Adjustment
Burner Flame Adjustment The air shutter on the burner tube controls the primary combustion air. It is set to the closed position at the factory for natural gas fuel. For LP see Pg.8. Some adjustment may be neces- sary to obtain desired flame and to eliminate carbon deposits. Evaluate flame appearance after the fireplace has reached operating temperature. -
Page 12: Replacement Parts
Replacement Parts (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM ..DESCRIPTION ..........PART NO. #1..TRANQUILITY BURNER KIT..TCWS.54NGST04C #2..PEBBLE ASSEMBLY(5 boxes)..5096.921 #3..SAND (Two Bags) ......TC42.SAND34 #4..PILOT ROCK ..........5096.922 NOT SHOWN KIT CONTENTS: TCWS.54NGST04D_150115-16... - Page 13 TCWS.54NGST04D_150115-16...
- Page 14 TCWS.54NGST04D_150115-16...
- Page 15 TCWS.54NGST04D_150115-16...
- Page 16 © 2014 Copyright Pacific Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. For technical support, please contact your retailer. Web site: www.townandcountryfireplaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
