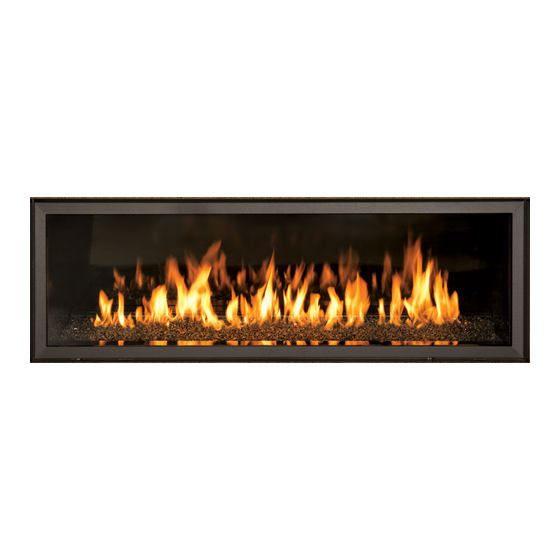

Town & Country Fireplaces TCWS54 Instruction Manual

Black diamond burner kit
Hide thumbs Also See for TCWS54:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation
and Operating Instructions supplied with the replace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
Visit www.townandcountryfireplaces.net for the most up-to-date version of this manual
180416-12
TCWS54
BLACK DIAMOND
BURNER KIT
INSTRUCTIONS
PART# TCWS54.NG03D
For TCWS Series D
Fireplaces
TCWS54_NG03D
5056.42521032D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCWS54 and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces TCWS54

Summary of Contents for Town & Country Fireplaces TCWS54

  • Page 1 Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions. TCWS54 BLACK DIAMOND BURNER KIT INSTRUCTIONS PART# TCWS54.NG03D For TCWS Series D Fireplaces Visit www.townandcountryfireplaces.net for the most up-to-date version of this manual 180416-12 TCWS54_NG03D 5056.42521032D...

  • Page 2: Contents Of Package

    Contents of Package 2 BURNER ASSEMBLIES 1 BURNER TRAY Figure 1: TCWS54 Black Diamond Burner parts. Figure 3: Glass media. Figure 2: Instruction book. TCWS54_NG03D_180416-12...
  • Page 3 Black Diamond Burner Installation If converting to propane see conversion instructions on page #5 before proceeding. Install panels according to the TCWS.54D Installation and Operating manual prior to burner installa- tion. (Page 28) 1. Install one of the two burners into the right side of the rebox by laying into location trough and sliding to the right to engage the venturi tube over the ori ce.
  • Page 4 Figure 9: Placing rear trim. Figure 8: Applying glass media. NOTE: Too much glass media will cause sooting and improper fl ame pattern. WIDE EDGE TO FRONT OF FIREPLACE WITH FRONT TRIM, TO THE REAR OF THE FIREBOX FOR REAR TRIM. Figure 11: Front trim.

  • Page 5: Propane Conversion

    Propane Conversion If the unit is to be used with propane, convert as follows using the components supplied with the TCWS 54 Propane Conversion Kit p/n TCWS54DLPKIT which includes Propane orifi ce and Conversion Label. CAUTION The gas supply and electrical power shall be shut off before proceeding with the conversion. Note: Factory supplied components must be used to ensure correct input.
  • Page 6 Figure 14: Air shutter gap. Figure 15: Loosening the pilot. ADJUSTMENT BAND ADJUSTMENT BAND Figure 17: Liquid propane position. Figure 16: Natural gas position. 5. Loosen the primary air shutter screw, open shutter to give a gap of 13/64” (0.2”) and re-tighten. Repeat on other burner (Figure 14).

  • Page 7: Gas Pressure Check

    ADD DATE ADD NAME MAIN BURNER (1.70 mm) ORIFICE (5022.94) Figure 19: Conversion label Figure 18: Main burner ori ce. 5052.52088D. Gas Pressure Check Note: To test the gas pressure, turn off the gas supply before removing the plug from the supply pressure test port or manifold pressure test port.

  • Page 8: Burner Flame Adjustment

    Burner Flame Adjustment The air shutter on the burner tube controls the primary combustion air. It is set to the closed position at the factory for natural gas fuel. For LP see Pg.6. Some adjustment may be necessary to obtain desired ame and to eliminate carbon deposits.

  • Page 9: Replacement Parts

    Replacement Parts (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM ..DESCRIPTION ............PART NO. #1..BLACK DIAMOND BURNER ..TCWS.54NG03.C2 #2..GLASS MEDIA (2 required) ....TCRP.501201 NOT SHOWN TCWS54_NG03D_180416-12...
  • Page 10 TCWS54_NG03D_180416-12...
  • Page 11 TCWS54_NG03D_180416-12...
  • Page 12 © 2016 Copyright Paci c Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. For support, please contact your retailer. Web site: www.townandcountry replaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
