Town & Country Fireplaces TC42.NG06C Installation Instructions Manual

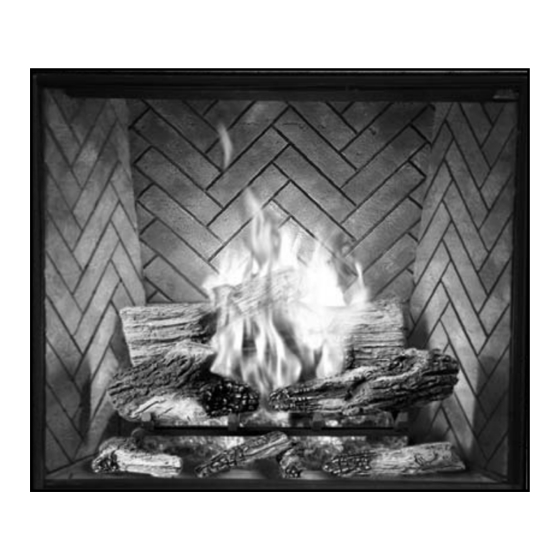

Chalet ii burner kit for use with: model tc42 series c
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation and
Operating Instructions supplied with the fi replace and should be kept
together. Refer to the Installation and Operating Instructions for proper
gas supply, safety requirements and operating instructions
020511-16
TC42
CHALET II
BURNER KIT
INSTALLATION
INSTRUCTIONS
PART#
For use with:
Model TC42
Series C
TC42.NG06C
TC42.NG06C
5056.426C1A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC42.NG06C and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces TC42.NG06C

Summary of Contents for Town & Country Fireplaces TC42.NG06C

  • Page 1 Operating Instructions supplied with the fi replace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions TC42 CHALET II BURNER KIT INSTALLATION INSTRUCTIONS TC42.NG06C PART# For use with: Model TC42 Series C 020511-16 TC42.NG06C 5056.426C1A...

  • Page 2: Contents Of Package

    See pages 9 – 11. slot and tighten screws. (Fig. #1b) 3. Remove access cover from side of fi rebox(Fig. #1c) Fig. # 1 Fig. # 1b SCREWS Fig. # 1c TC42.NG06C 020511-16...
  • Page 3 Red end to the connector marked by the red dot, white end to the connector marked 2 SCREWS by the white dot Fig.#2 & Fig.#3 BULKHEAD PLATE Fig. # 3 WHITE END TO RED END TO MODULE WHITE DOT RED DOT TC42.NG06C 020511-16...
  • Page 4 PILOT SUPPLY TUBE MAIN GAS SUPPLY TUBE 6. Position the slots of the grate securing Fig. # 5 brackets over the holes in the fl oor shield and secure with the two screws (Fig. # 5). TC42.NG06C 020511-16...

  • Page 5: Glowing Embers

    Install the right log into the grate and pull it forward into position as shown. Place the four remaining small logs on the fl oor of the fi rebox in the positions and order as shown. TC42.NG06C 020511-16...
  • Page 6 Fig. # 8 LOG #2 Fig. #9 LOG #3 TC42.NG06C 020511-16...
  • Page 7 Fig. #10 LOG #4 Fig. #11 LOG #5 TC42.NG06C 020511-16...
  • Page 8 Fig. #12 LOG #6 Fig. #13 LOG #7 Note: Improper placement of logs will cause sooting on internal parts and glass. TC42.NG06C 020511-16...

  • Page 9: Propane Conversion

    Fully open the primary air shutter. The installation is not Reinstall the manifold assembly proper and complete un- til the operation of the converted appliance is checked as specifi ed in the manufacturer's instructions supplied with the kit. TC42.NG06C 020511-16...
  • Page 10 (Fig. #19 shows NG position, Fig. # 20 shows LP position) Fig. #20 HOLE Fig. # 21 Remove the minimum rate screw located in the valve. (Fig. #21) Minimum rate screw TC42.NG06C 020511-16...
  • Page 11 Max.: 61,000 (17.9) 14. Attach the access panel to the side of Min.: 46,200 (13.5) 260411 6-TC42C 5052.5206C the fi rebox with the previously removed screws. (Fig. #25) Fig #25 Note: Gasket must be installed with access panel. TC42.NG06C 020511-16...

  • Page 12: Gas Pressure Check

    Correct gas pressure requirement: Supply Pressure Natural Gas Propane (For purpose of input adjustment) Minimum 5.0" WC 12.5" WC Maximum 13.9" WC 13.9" WC Manifold Pressure Maximum 3.8" WC 11.0w" WC Minimum 2.1" WC 5.5" WC TC42.NG06C 020511-16...

  • Page 13: Burner Flame Adjustment

    2. Remove the log set and set aside. 3. Loosen the screw in the Primary Air Shutter. 4. Rotate the shutter to increase or decrease the amount of primary air. 5. Reassemble in reverse order. PRIMARY AIR SHUTTER TC42.NG06C 020511-16...

  • Page 14: Replacement Parts

    (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM ..DESCRIPTION ..........PART NO. ITEM ..DESCRIPTION ..........PART NO. #4..PILOT ASSEMBLY ......TCRP.5005025 #1..BURNER ASSEMBLY......TC42.NG06C #5..MAIN SUPPLY TUBE (FLEX) ..... 5019.223 #2..7 PCS LOG SET(TC42) ...... 5094.42161 #6..PILOT TUBE (FLEX) ......5019.225 #3..
  • Page 15 TC42.NG06C 020511-16...
  • Page 16 TECHNICAL SUPPORT: 1-250-748-1184 www.townandcountryfi replaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
