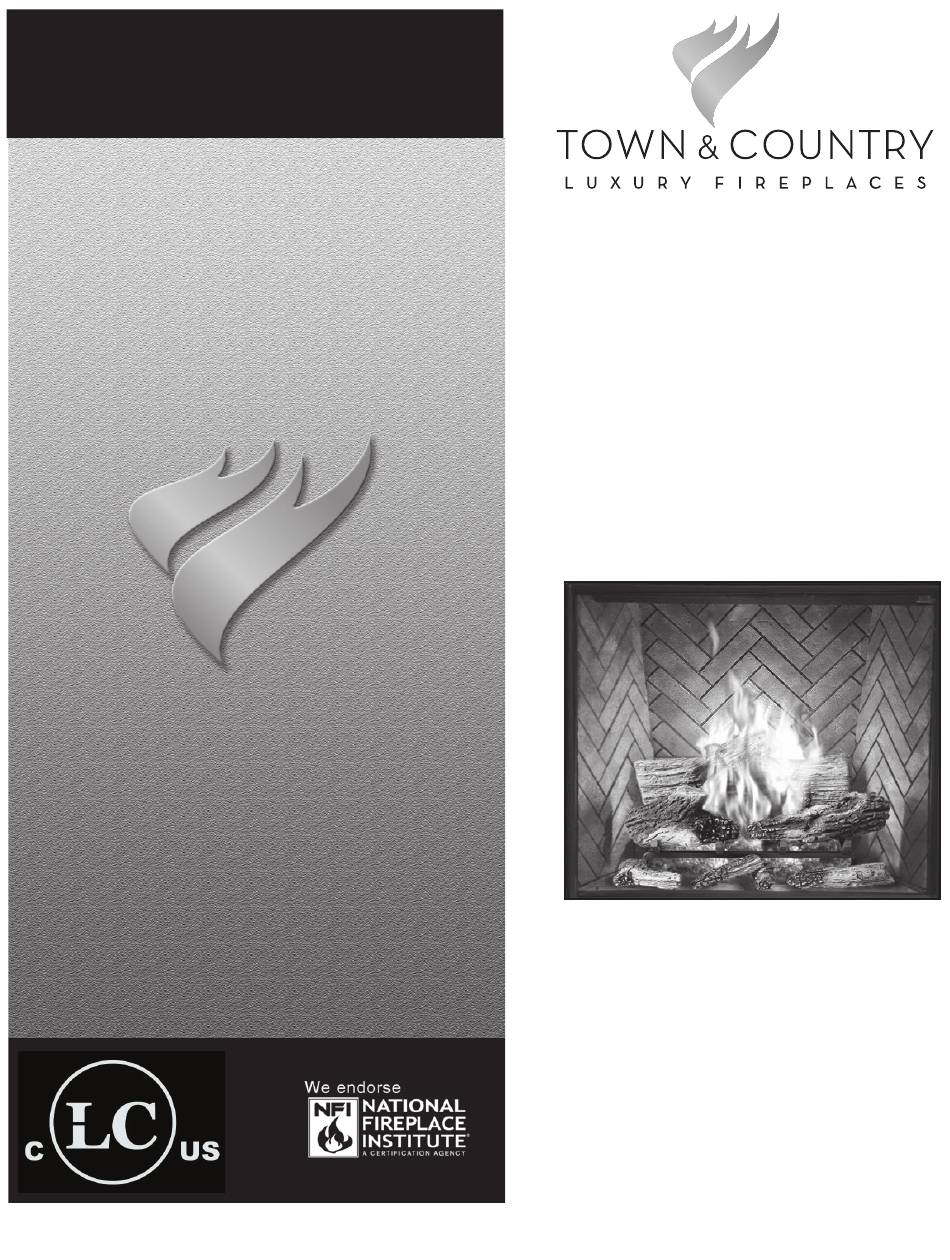

INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation and
Operating Instructions supplied with the fireplace and should be
kept together. Refer to the Installation and Operating Instructions for
proper gas supply, safety requirements and operating instructions
Visit www. townandcountryfireplaces.net for the most recent version of this manual
050919-16
TC42
CHALET
BURNER KIT
INSTALLATION
INSTRUCTIONS
PART# 22150036
For TC42 Series D
Fireplaces
TC42_NG06D
100000385

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC42 and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces TC42

Summary of Contents for Town & Country Fireplaces TC42

  • Page 1 Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions TC42 CHALET BURNER KIT INSTALLATION INSTRUCTIONS PART# 22150036 For TC42 Series D Fireplaces Visit www. townandcountryfireplaces.net for the most recent version of this manual 050919-16 TC42_NG06D 100000385...

  • Page 2: Contents Of Package

    Contents of Package • BURNER ASSEMBLY • LOG GRATE • LOGS • 2 BAGS EMBER MATERIAL • HARDWARE PACKAGE If this fireplace is to be used on Propane please convert prior to installation. See pages 9 – 11. Figure 1: Package contents. Burner Installation 1.
  • Page 3 Burner/ Grate Installation 4. Attach the manifold gas and pilot supply tubes to the bulk head fitting and tighten (Figure 5). 2 SCREWS Ensure that all connections are gas tight. Figure 5: Gas and pilot supply tubes. 5. Feed the ignition and sensor wires through the bulkhead plate (Figure 6) to the interface.
  • Page 4 6. Attach the ignition and sensor Flame sensor wires to the module (Figure 7). wire (white) Ignition wire (red) Interface module 7. Replace the access cover (Figure 4). Figure 7: Interface module. A panel set must now be installed. See Installation and Operating Instructions manual for details.
  • Page 5 Ember Material A large bag of glowing ember material is supplied with the burner kit and needs to be installed on the burner to ensure optimum performance and flame appearance. 1. Pull apart the material Log grate into ember size pieces (approximately 1”...
  • Page 6 Place log 2 as pictured, engaging the pins with corresponding holes on the Log 2 underside of the log. Figure 11: Log 2 placement. Install log 3 into the grate and pull it forward into position as shown. Log 3 Figure 12: Log 3 placement.
  • Page 7 Place the four remaining small logs on the floor of the firebox in the positions and order as shown. Log 4 Figure 13: Log 4 placement. Log 5 Figure 14: Log 5 placement. TC42_NG06D_050919-16 100000385...
  • Page 8 Log 6 Figure 15: Log 6 placement. Log 7 Figure 16: Log 7 placement. Note: Improper placement of logs will cause sooting on internal parts and glass. 100000385 TC42_NG06D_050919-16...

  • Page 9: Propane Conversion

    Propane Conversion Note: The propane conversion kit is not included with the burner kit. The conversion kit is an option which must be ordered separately If the unit is to be used with propane gas, convert the fireplace from natural gas as follows using the components supplied with this burner kit.
  • Page 10 4. With a ½” wrench remove the natural gas orifice (Figure 19). Install propane orifice (our part # 5022.3) (Figure 20). 6. Fully open the primary air shutter. Figure 20: Orifice. Figure 19: Removing orifice. 7. Reinstall the manifold assembly. 8.
  • Page 11 Pilot Hole in sliding band adjustment indicates propane band gas con guration Figure 22: Pilot band in natural gas position. Figure 23: Pilot band in propane gas position. 10. Open the air shutter by following the steps in the Burner Flame Adjustment on page 12. 11.

  • Page 12: Burner Flame Adjustment

    Burner Flame Adjustment The air shutter on the burner tube controls the primary combustion air to the gas burner and is preset at the factory for natural gas fuel. Some adjustment may be necessary to obtain desired flame and to eliminate carbon deposits.

  • Page 13: Replacement Parts

    PART NO. #1..BURNER ASSEMBLY ........22150036 #5..MAIN SUPPLY TUBE (FLEX)......80001888 #2..7 PCS LOG SET (TC42) ........80000533 #6..PILOT TUBE (FLEX) ........80001625 #3..ORIFICE, NATURAL GAS (4.09 mm) ....80001694 #7..PROPANE CONVERSION KIT ...... 22180008 #4..
  • Page 14 TC42_NG06D_050919-16 100000385...
  • Page 15 TC42_NG06D_050919-16 100000385...
  • Page 16 © 2019 Copyright Pacific Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. For technical support, please contact your retailer. www.townandcountryfireplaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
