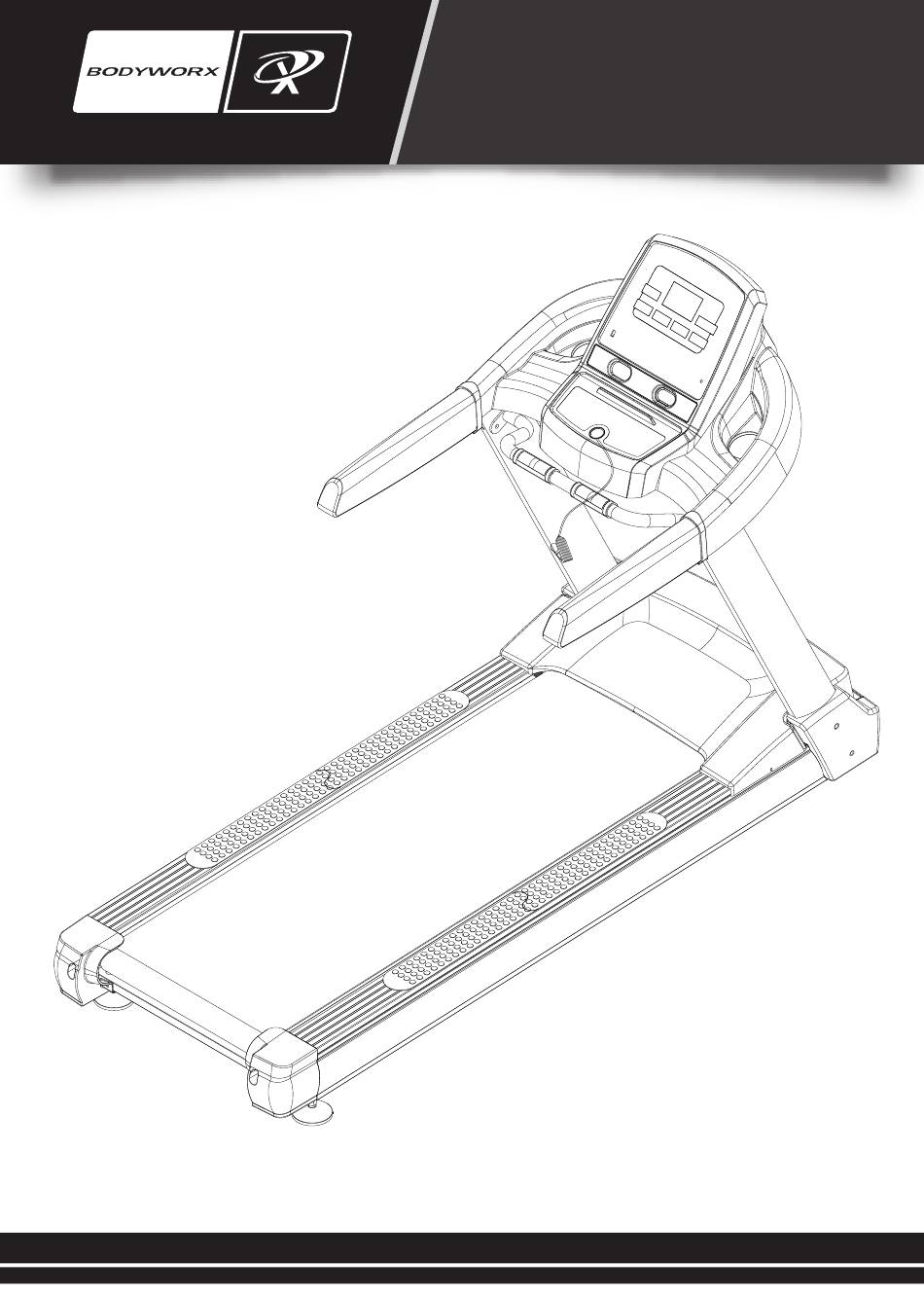

  • Page 1 BODYWORX JT8500 TREADMILL Model No: JT8500 Retain this owner’s manual for future reference. Read and follow all instructions in this owner’s manual.

  • Page 3: Table Of Contents

    CONTENT CONTENT ------------------------------------------------------------------------------------------------------------------ 1 ------------------------------------------------------------------------------------- 3-4 IMPORTANT SAFETY PRECAUTIONS ------------------------------------------------------------------------------------------------------ 5-7 ASSEMBLY INSTRUCTIONS --------------------------------------------------------------------------------------------------------------- 8 GROUNDING METHODS ------------------------------------------------------------------------------------------------------------------ 9-16 OPERATION GUIDE ------------------------------------------------------------------------------------------------------------------- 17 SAFETY EXERCISES ---------------------------------------------------------------------------------------------------------------- 18 WARM-UP EXERCISES ----------------------------------------------------------------------------------------------- 19 MAINTENANCE INSTRUCTIONS -------------------------------------------------------------------------------------------------------------------- 20 BELT ADJUSTMENT ----------------------------------------------------------------------------------------------------------------- 21 EXPLODED DRAWING ------------------------------------------------------------------------------------------------------------------------------- 22-23 PARTS LIST ------------------------------------------------------------------------------------------- 24...
  • Page 4 The main technical parameters Input supply voltage: 240V Working temperature: 0-40 ℃ Speed range: 0.8-22.0 KH/M Incline range:15 levels Motor incline Max. user weight: 180kg Distance display range: 0.00-99.9km Time display range: 00：00-99：59 (min : sec) Calories display range: 000-999 Heart rate range: 50-200 (time / min) Running surface: 560*1540mm Product size: 2080*850*1520 mm...

  • Page 5: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS WARNING: Before starting any exercise program, consult with your physician or health professional， especially a person who is above 35 years old or has some health problems. We take no responsibility for any troubles or injuries due to the reasons above. Don't power on until you finish assembling the treadmill and covering the protected top of the motor.

  • Page 6: Assembly Instructions

    Assembly instruction WHEN YOU OPEN THE CARTON, YOU WILL FIND THE BELOW SPARE PARTS: A1 Main frame 1set D50L/ R Left/ Right PU A3L/R Left Right C13 Safety key 1 set handle bar 1 set Upright 1 set Console set 1 set C19 MP3 cord 1 pc C15 power lead 1 pc D21 Flat Washer M10 14...
  • Page 7 STEP 1：Connect the Lower Wire (C17) of main frame and Middle Wire (C18) of right upright, then secure Right/Left Upright (A3L/R) with Round Head Hex Bolt M10*50 (D11) and Flat Washer M10 (D21). (Do not secure tight) Step 2: Use Round Hex Bolt M8*20 (D31) to secure Left/Right PU Hand Rail (B50L/R).
  • Page 8 Step 3: Connect the Upper Cables (C16) of console and Middle Cable (C18) of right upright then tighten console with Left/Right Upright (A3L/R), then secure Left/Right upright (A3L/R) and Cross bar (A4A) with Round Hex Bolt M10*20 (D105) and Flat Washer M10 (D21). Secure all screws on uprights.

  • Page 9: Grounding Methods

    Grounding Methods This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

  • Page 10: Operation Guide

    Operation Guide WINDOW DISPLAY 1.1. Read the Owner’s Manual and all Warnings carefully before use. To avoid injury, stand on the side rails before starting the unit. Keep children away from the treadmill at all times. Remove the safety key when not in use. 1.2.
  • Page 11 1.5.3 “MODE” BUTTON When the treadmill is not running, press this button to choose countdown modes: “H-1”, “H-2”, “H-3”,“H-1” is the time countdown mode, and “H-2” is the distance countdown mode,“H-3” is the calorie countdown mode; press the “SPEED+/-” or “INCLINE+/-” button to adjust the data. After that, press the “START” button to start this treadmill. 1.5.4 “SPEED +/-”...
  • Page 12 1.6.7 ALL WINDOW DISPLAY DATA RANGE TIME:0:00 – 99.59 (MIN) DISTANCE: 0.00 – 99.9 (KM) CALORIES: 0.0 – 999 (C) SPEED: 0.8-22.0 (KM/H) PULSE: 50 – 200 (BPM) INCLINE: 0 – 15% 1.7 PULSE FUNCTION When the treadmill is running, hold the hand pulse for about 5 seconds, it will display pulse data. The pulse data range is 50-200 times/minute.
  • Page 13 INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE 1.9 MANUAL MODEL OPERATION 1.9.1 Press START key, time count down 5 seconds, then treadmill will start to work with initial speed1km/h. 1.9.2 Press SPEED +/-, you can adjust the speed. 1.9.3 Press INCLINE +/-, you can adjust the incline. 1.9.4 Press STOP, you can stop treadmill at working state.
  • Page 14 Height: 100--220 Weight: 20--150 FAT≤19: Under weight FAT= (20---25): Normal weight FAT= (25---29): Over weight FAT≥30: Obesity 1.12 USER PROGRAM Besides 15 pre-set programs, there are 3 user-defined programs: U1, U2 and U3 Each user program has 10 segments. The user can set the desired speed and incline. Press "PROGRAM" button to choose U1, U2 or U3, press "MODE" button to enter setting condition, then set the time of the first segment.
  • Page 15 FORMULA IS CALCULATED AS BELOW: HRC1 is T.H.R = (220-age) x 60%, HRC2 is T.H.R = (220-age) x 70%, HRC3 is T.H.R = (220-age) x 80%. After finishing the setting of HRC data, user can press “MODE” key to modify the time. When “TIME”...
  • Page 16 1.14 BLUETOOTH MUSIC FUNCTION Bluetooth Music Function: Press the “Bluetooth” key till the display shows Bluetooth icon, turn on the Bluetooth of your device to match with the computer and play the music, user can increase or decrease the volume from the device and also can turn back to last song or jump to next song.
  • Page 17 Getting started guide PREPARE If you are over 35 years old, or have health problems or if this is your first time doing fitness exercise, please consult a doctor or professional before use. Before you exercise, please stand on the side to learn how to operate, such as start, stop and speed adjustments.

  • Page 18: Safety Exercises

    Safety Exercise Please consult a professional staff before you exercise. He can help recommend exercise rate/intensity and time according to your age and health condition. When running, if you feel your chest tightness or any chest pain, irregular heartbeats, short of breath, any dizziness or are unwell, please STOP IMMEDIATELY! Please consult a professional staff before you want to continue to exercise.

  • Page 19: Warm-Up Exercises

    Warm-up Exercise before It is best to do some warm-up exercising. Warm the muscles with easy stretches for 5 to 10 mins to warm-up. Then stop and according to below method to do stretch exercise for 5 times, each foot for 10 seconds or more every time.

  • Page 20: Maintenance Instructions

    Maintenance Instruction Please make sure you pull out the treadmill's power plug before cleaning or maintaining WARNING: the product. General cleaning of the unit will greatly prolong the treadmill's life. CLEANING: Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails.

  • Page 21: Belt Adjustment

    Belt Adjustment Place treadmill on a level surface. Make treadmill run at approximately 6-8 km/h, observe the running belt deviation. f the belt has drifted to the right, unplug the safety lock and power switch, and turn the right adjusting bolt 1/4 clockwise, then insert the power switch and safety lock.

  • Page 22: Exploded Drawing

    EXPLODING DRAWING B69L B69R B50L B50R B16L B16R D109...

  • Page 23: Parts List

    Parts list A. Frame parts Description Description Base frame Filter bracket Left upright Belt guide Right upright Speaker network Handrail bracket Handrail tube Cross bar Shaft Incline frame B. Plastic parts Description Description Console set New cushion B1-1 Overlay Non-slip sticker B1-3 Console panel Rubber pad...
  • Page 24 Rear roller Inductance Front roller Filter Running board Overload protection Motor belt AC motor Power switch Inverter Incline motor Pulse Safety key Single line (brown) 150 Power cable Single branch (blue) 150 Console upper wire Single ground wire Console lower wire Outlet Middle cable Pulse upper line...

  • Page 25: Error Code And Significance

    Error code and significance Error Code Description Solutions Failure 1.Check if computer is connected to inverter with correct wires, check connector, communication check if wire is damaged or unplug and re-connect. between inverter 2.Replace inverter and test. and computer 3.Replace computer and test. 1.
  • Page 26 BODYWORX JT8500 TREADMILL Model No: JT8500 To register your warranty, please go to www.gpisports.com.au DISTRIBUTED EXCLUSIVELY BY 275 Wellington Road Mulgrave, VIC, 3170 Australia...
