- Page 1 User Manual UNO-2272G 電腦 ® Intel Atom™/Celeron Palm- ® Size Automation Computer with 1 x GbE, 2 x mPCIe, VGA/HDMI...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
-
Page 3: Declaration Of Conformity
Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. -
Page 4: Technical Support And Assistance
這是甲類測試產品，在居住的環境中使用時，可能會造成射頻干擾，在這種情況下， 使用者會被要求採取某些適當的對策。 Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –... -
Page 5: Safety Instructions
The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. - Page 6 UNO-2272G User Manual...
-
Page 7: Table Of Contents
Accessories....................3 Chapter Hardware Functionality .......5 Introduction ....................6 Figure 2.1 Front Panel of UNO-2272G-N2AE ......6 Figure 2.2 Rear Panel of UNO-2272G-N2AE ......6 Figure 2.3 Front Panel of UNO-2272G-J2AE ..................6 Figure 2.4 Rear Panel of UNO-2272G-J2AE....... 6 UNO-2272G Interface ................ - Page 8 UNO-2272G User Manual viii...
-
Page 9: Chapter 1 Overview
Chapter Overview This chapter provides an overview of UNO-2272G specifications. Sections include: Introduction Safety precautions Accessories... -
Page 10: Introduction
UNO-2272G includes Intel’s latest Atom/Celeron technology and provide rich interfaces including up to 1 serial port, 1 x GbE LAN, 3 x USB ports and Audio. UNO-2272G supports one VGA or HDMI display depending on the model and also Advantech’s latest iDoor technology. -
Page 11: Accessories
2272G-N2AE) 2x Full-size mPCIe slot, mPCIe2.0(UNO-2272G-J2AE) Display: – 1 x VGA, support 1920 x 1200 @60Hz 24bpp for UNO-2272G-N2AE – 1 x HDMI, support 1920 x 1080 @60Hz 24bpp for UNO-2272G-J2AE Applicable Models: UNO-2272G-N2AE , UNO-2272G-J2AE , UNO2272GN2A1401E-T... - Page 12 UNO2272GN2A1503E-T UNO2272GN2A1601E-T UNO2272GN2A1602E-T UNO-2272G User Manual...
-
Page 13: Chapter 2 Hardware Functionality
Chapter Hardware Functionality This chapter shows how to setup the UNO-2272G’s hardware func- tions, including connecting peripherals, setting switches and indicators. Sections include: Introduction UNO-2272G Interface LAN / Ethernet Connector Power Connector USB Connector RTC Battery Specification ... -
Page 14: Introduction

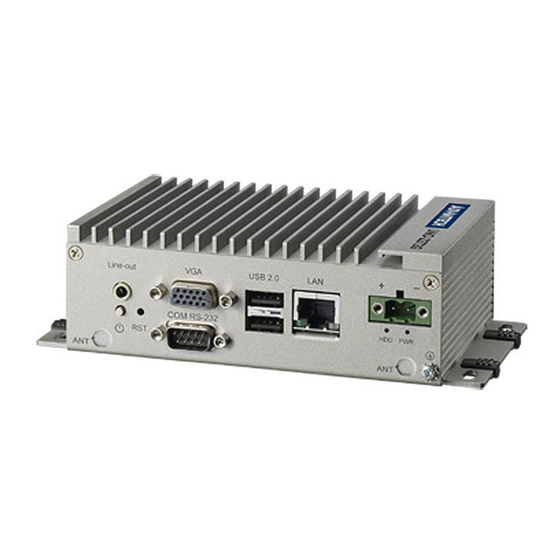

Introduction The following figures show the connectors on UNO-2272G. The following sections give you information about each peripheral. Figure 2.1 Front Panel of UNO-2272G-N2AE Figure 2.2 Rear Panel of UNO-2272G-N2AE Figure 2.3 Front Panel of UNO-2272G-J2AE Figure 2.4 Rear Panel of UNO-2272G-J2AE... -
Page 15: Uno-2272G Interface
For the UNO-2272G-N2AE, there are three [3] USB ports which comply with USB EHCI, Rev. 2.0 compliant. For the UNO-2272G-J2AE, there are three [3] USB ports, two [2] ports comply with USB EHCI, Rev. 2.0 compliant and one [1] port complies with USB EHCI, Rev. 3.0 compliant Refer to Appendix A.5 for its pin assignments. -
Page 16: Rtc Battery Specification
Output Voltage: 3 V Power Button/Power Management Press the “PWR” button to power on or power off the UNO-2272G(ATX type). The UNO-2272G supports the ACPI (Advanced Configuration and Power Interface). Besides power on/off, it support multiple suspend modes, such as Power on Sus- pend (S1), Suspend to RAM (S3), Suspend to Disk (S4). -
Page 17: Pci Express Mini Card Socket
Mini-PCIe built-in SIM card slot module installed to be able to use 3G functions.(For model produced before June 2015) The UNO-2272G-J2AE supports two sockets full size PCI Express mini cards. The CN15 slot is the default defined ONLY for half size mSATA storage. - Page 18 These two interfaces are mainly targeted at supporting iDoor technology/mod- ules for diverse applications such as isolated COM port, Profibus, WLAN GPRS, 3G, mRAM and iDoor Module. Users can install the card easily using the optional kit. UNO-2272G User Manual...
-
Page 19: Chapter 3 Initial Setup
Chapter Initial Setup This chapter introduces how to initialize the UNO-2272G. Sections include: Inserting a mSATA Chassis Grounding Connecting Power Installing a Wireless LAN Card and Antenna... -
Page 20: Inserting A Msata
Screw the two screws on board to fix mSATA. Screw back the bottom cover. Chassis Grounding UNO-2272G provides good EMI protection and a stable grounding base. There is an easy-to-connect chassis grounding point to use. Figure 3.1 Chassis Grounding Connection... -
Page 21: System Settings And Pin Assignments
Appendix System Settings and Pin Assignments... -
Page 22: System I/O Address And Interrupt Assignment
Standard 101/102-Key or Microsoft Natural PS/2Keyboard IRQ2 Interrupt from controller 2 (cascade) IRQ3 Communications Port (COM2) IRQ4 Communications Port (COM1) IRQ6 Available IRQ8 System CMOS/Real-time clock IRQ9 Microsoft ACPI-Compliant System IRQ12 PS/2 Compatible Mouse IRQ13 Numeric data processor IRQ14 Reserved IRQ15 Reserved UNO-2272G User Manual... -
Page 23: Board Connectors And Jumpers
Board Connectors and Jumpers There are several connectors and jumpers on the UNO-2272G board. The following sections tell you how to configure the UNO-2272G hardware setting. Figure A.1 shows the locations of UNO-2272G’s connectors and jumpers. Figure A.1 Connector & Jumper Locations for UNO-2272G-N2AE(front) Table A.2: Connectors and Jumpers... -
Page 24: Rs-232 Standard Serial Port
RS-232 Standard Serial Port Table A.4: RS-232 Serial Port Pin Assignments Pin Name Power Connector (PWR) Table A.5: Power connector pin assignments V+ (24VDC) UNO-2272G User Manual... -
Page 25: Usb Connector
Black Table A.7: USB 3.0 Connector Pin Assignments Signal Name Description VBUS Power USB2.0 differential pair Ground for power return StdA_SSRX- SuperSpeed receiver differential pair StdA_SSRX+ GND_DRIAN Ground for signal return StdA_SSTX- SuperSpeed transmitter differential pair StdA_SSTX+ UNO-2272G User Manual... -
Page 26: Hdmi Display Connector
TMDS Data2 Shield TMDS Data2- TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0- TMDS Clock+ TMDS Clock Shield TMDS Clock- Reserved DDC/CEC/HEC Ground +5 V Power (max 50 mA) Hot Plug Detect UNO-2272G User Manual... - Page 27 UNO-2272G User Manual...
- Page 28 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2015...
