- Page 1 User Manual UNO-2271G 電腦 ® Intel Atom™ Pocket-Size Automation Computer with 2 x GbE, 1 x mPCIe, HDMI, eMMC...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
-
Page 3: Declaration Of Conformity
Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. -
Page 4: Technical Support And Assistance
這是甲類測試產品，在居住的環境中使用時，可能會造成射頻干擾，在這種情況下， 使用者會被要求採取某些適當的對策。 Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –... -
Page 5: Safety Instructions
The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. - Page 6 8. 當您連接設備到電源插座前，請確認電源插座的電壓符合要求。 9. 請將電源線佈置在人們不易絆倒的位置，請勿在電源線上覆蓋任何雜物。 10. 請注意設備上所有的警告標示。 11. 如果長時間不使用設備，請拔除與電源插座的連結，避免設備被超標的電 壓波動損壞。 12. 請勿讓任何液體流入通風口，以免引起火灾或短路。 13. 請勿自行打開設備。為了確保您的安全，請透過經認證的工程師來打開設 備。 14. 如遇下列情况，請由專業人員維修： 電源線或插頭損壞； 設備內部有液體流入； 設備曾暴露在過度潮濕環境中使用； 設備無法正常工作，或您無法透過用戶手冊來正常工作； 設備摔落或損壞； 設備有明顯外觀損； 15. 請勿將設備放置在超出建議溫度範圍的環境，即不要低於 0℃ （32℉）或高 於 50℃ （122℉） ，否則可能會造成設備損壞。 16. 注意：若電池更換不正確，將有爆炸危險。因此，只可以使用製造商推薦 的同一種或者同等型號的電池進行替換。請按照製造商的指示處理舊電池。 17. 根據 IEC 704‐1:1982 規定，操作員所在位置音量不可高於 70 分貝。 18. 限制區域：請勿將設備安裝於限制區域使用。 19. 免責聲明：請安全訓示符合 IEC 704‐1 要求。研華公司對其內容之準確性不 承擔任何法律責任。 UNO-2271G User Manual...
-
Page 7: Table Of Contents
Chapter Hardware Functionality .......5 Introduction ....................6 Figure 2.1 Front Panel of UNO-2271G-E21AE for one stack model which can support extra extension kit UNO-2271G- EKAE ................6 Figure 2.2 Front Panel of UNO-2271G-E22AE for two stack model which can support extra 3 x USB and iDoor module .. 6 Figure 2.3 Front Panel of UNO-2271G-E23AE for two stack model... - Page 8 UNO-2271G User Manual viii...
-
Page 9: Chapter 1 Overview
Chapter Overview This chapter provides an overview of UNO-2271G specifications. Sections include: Introduction Safety precautions Accessories... -
Page 10: Introduction
UNO-2271G supports one HDMI display and also Advantech’s latest iDoor technol- ogy. The UNO-2271G can operate in wide temperatures (from 0 to 50°C). The UNO- 2271G also uses Intel Atom CPUs with great computing power and Built-in Onboard 4G DDR3L RAM for heavy programs. -
Page 11: Accessories
Accessories Please refer below for the accessory list: Pin connector for power wiring (Advantech P/N: 1652002209) Driver DVD Warranty card If anything is missing or damaged, contact your distributor or sales representative immediately. Operating Temperature:0 to 50°C ... - Page 12 UNO-2271G User Manual...
-
Page 13: Chapter 2 Hardware Functionality
Chapter Hardware Functionality This chapter shows how to setup the UNO-2271G’s hardware func- tions, including connecting peripherals, setting switches and indicators. Sections include: Introduction UNO-2271G Interface LAN / Ethernet Connector Power Connector USB Connector RTC Battery Specification ... -
Page 14: Introduction

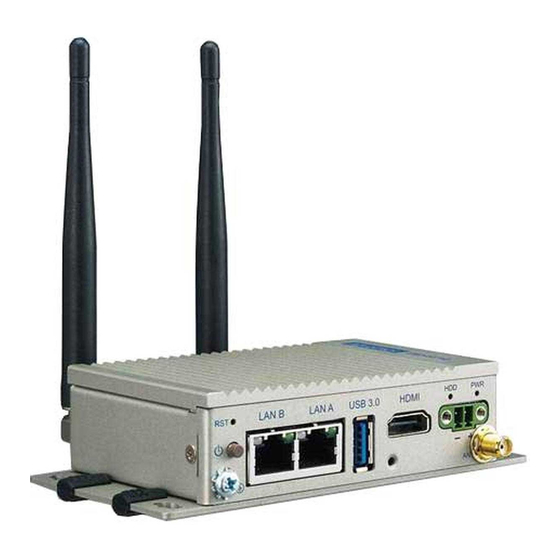

The following figures show the connectors on UNO-2271G. The following sections give you information about each peripheral. Figure 2.1 Front Panel of UNO-2271G-E21AE for one stack model which can support extra extension kit UNO-2271G-EKAE Figure 2.2 Front Panel of UNO-2271G-E22AE for two stack model which can support extra 3 x USB and iDoor module Figure 2.3 Front Panel of UNO-2271G-E23AE for two stack model which can... -
Page 15: Uno-2271G Interface
LAN: Ethernet Connector UNO-2271Gs are equipped with two Gigabit LAN controller. For the UNO-2271G, the controller chip used is an Realtek RTL8111E Ethernet con- troller that is fully compliant with IEEE 802.3u 10/100/1000 Base-T The Ethernet port is a standard RJ-45 jack, and LED indicators are on the front to show its Link (Green LED) and Active (Green LED) status. -
Page 16: Rtc Battery Specification
RTC Battery Specification The UNO-2271G has an RTC Battery to ensure the setting in BIOS and system clock can be kept, even with power disconnected for a short time. Type: BR2032 Output Voltage: 3 V Power Button/Power Management Press the “PWR”... -
Page 17: Chapter 3 Initial Setup
Chapter Initial Setup This chapter introduces how to initialize the UNO-2271G. Sections include: Inserting aM.2 Chassis Grounding Connecting Power Installing a Wireless LAN Card and Antenna... -
Page 18: Chassis Grounding
Chassis Grounding UNO-2271G provides good EMI protection and a stable grounding base. There is an easy-to-connect chassis grounding point to use. mSATA Figure 3.1 Chassis Grounding Connection Connecting Power This product is intended to be supplied by a Listed Power Adapter or DC power source, rated 10-30Vdc, 2A and Tma 50 degree C, if need further assistance, please contact Anvantech for further information. -
Page 19: System Settings And Pin Assignments
Appendix System Settings and Pin Assignments... -
Page 20: System I/O Address And Interrupt Assignment
IRQ15 Reserved Board Connectors and Jumpers There are several connectors and jumpers on the UNO-2271G board. The following sections tell you how to configure the UNO-2271G hardware setting. Figure A.1 shows the locations of UNO-2271G’s connectors and jumpers. Figure A.1 Connector & Jumper Locations for UNO-2271G-N2AE(front) Table A.2: Connectors and Jumpers... -
Page 21: Power Connector (Pwr)
USB Connector Table A.4: USB 2.0 Connector Pin Assignments Signal Name Cable Color DATA- White DATA+ Green Black Table A.5: USB 3.0 Connector Pin Assignments Signal Name Description VBUS Power USB2.0 differential pair Ground for power return UNO-2271G User Manual... -
Page 22: Hdmi Display Connector
TMDS Data0 Shield TMDS Data0- TMDS Clock+ TMDS Clock Shield TMDS Clock- Reserved DDC/CEC/HEC Ground +5 V Power (max 50 mA) Hot Plug Detect COM1/COM2 RS232/422/485 connector 1654000056 D-SUB Conn. 9P 90D(M) DIP 070241MR009S200ZU RS232 RS422 RS485 UNO-2271G User Manual... -
Page 23: Mini Pcie Slot (Minipcie)
* +3.3Vaux was suspend Power , power out to device +3.3V/1.1A * +3.3V was core power * +1.5V was core power, power out to device +1.5V/0.5A UNO-2271G User Manual... -
Page 24: Lan Rj45 Connector
1000BASE-T: In MDI and in MDI-X configuration, MDI[2]+/- corresponds to BI_DC+/- and MDI[3]+/- corre- MDI2- sponds to BI_DD+/-. 100BASE-TX: Unused. MDI3+ 10BASE-T: Unused. MDI3- Right LED Left LED 10Link 100Link 1000 Link Active Orange Green Green UNO-2271G User Manual... -
Page 25: Screw Type And Quantity For Mounting Module
Screw Type and Quantity for Mounting Module Screw: M3*P0.5*6L Head diameter: 5 ~ 5.3 mm Quantity: 4 pcs Screw: M3*P0.5*4L Quantity: 3 pcs UNO-2271G User Manual... - Page 26 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2016...
