Lock self test LED indication

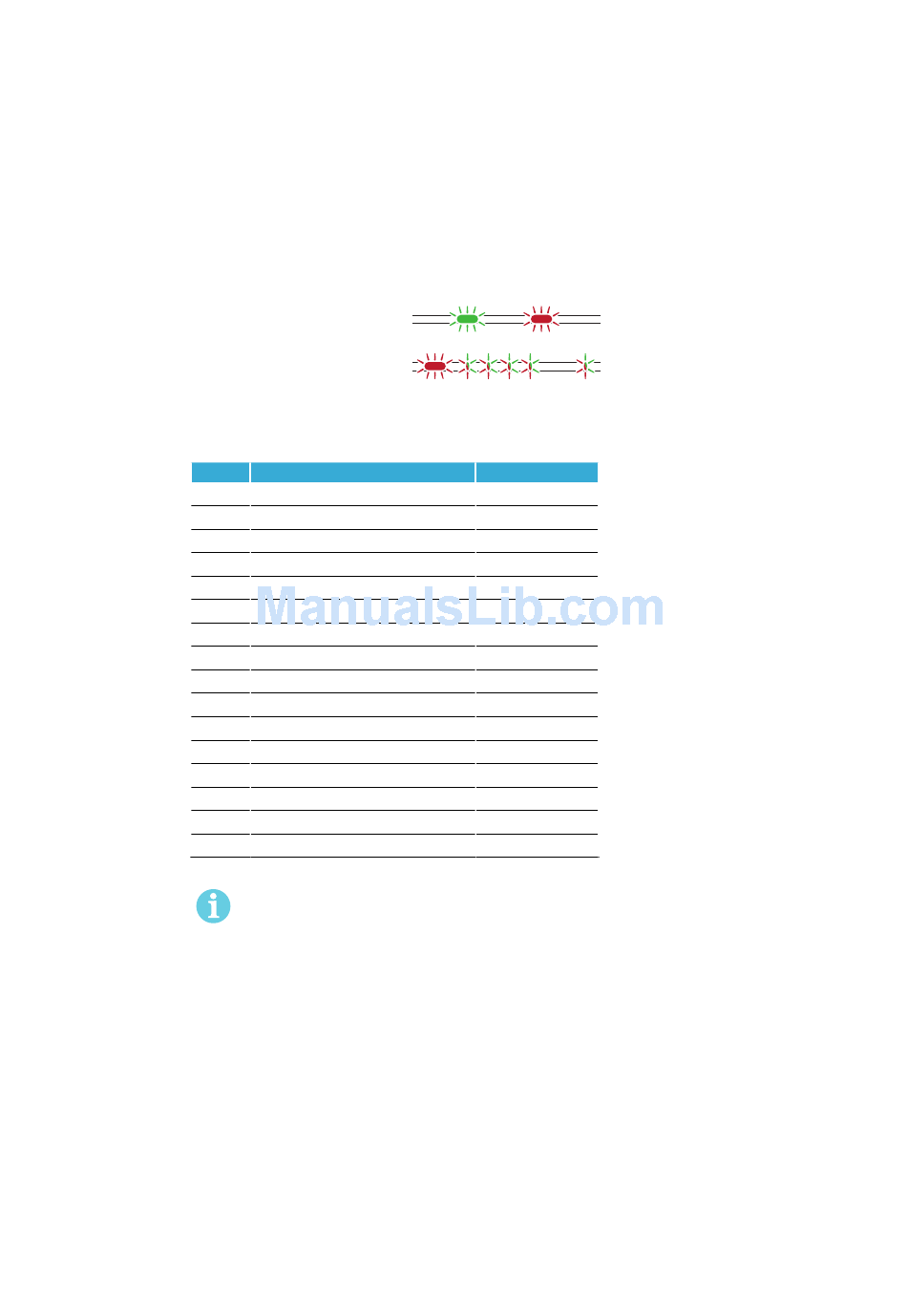

After replacing the battery, a Power on Self Test (POST) is performed. The result is indicated using a
series of red and green LED flashes as is described by the figure below:
POST Successful
Failure during POST
The first flash is always red. If the POST fail, the color of the 16 trailing flashes indicate the status of
each individual test as described by the following table:
Blink Meaning if red
2 Main board firmware corrupt
3 Override list corrupt
4 Production data corrupt
5 Security data corrupt
6 Configuration data corrupt
7 Load Circuit Error
8 Configuration data corrupt 2
9 Secure Area Encryption Key error
10 Secure Area Motor error
11 Secure area communication error
12 Secure area memory corrupt
13 Secure area sensor or motor error
14 Radio modem communication error
15 Radio modem memory corrupt
16 Radio modem configuration error
17 Radio modem RF circuit error
If the battery is not accepted as new after a power on reset, no POST is performed, instead
the 10 quick red flashes used to indicate "Error in lock" are shown.
Aperi Online Quick Installation Guide, Document No: ST-001322-B Date: 11 oktober 2013
®
One red, one green flash
(1 second)
One red flash followed by 16
...
red or green flashes (.5 second)
Code in event log
0x0001
0x0002
0x0004
0x0008
0x0010
0x0020
0x0040
0x0080
0x0100
0x0200
0x0400
0x0800
0x1000
0x2000
0x4000
0x8000
