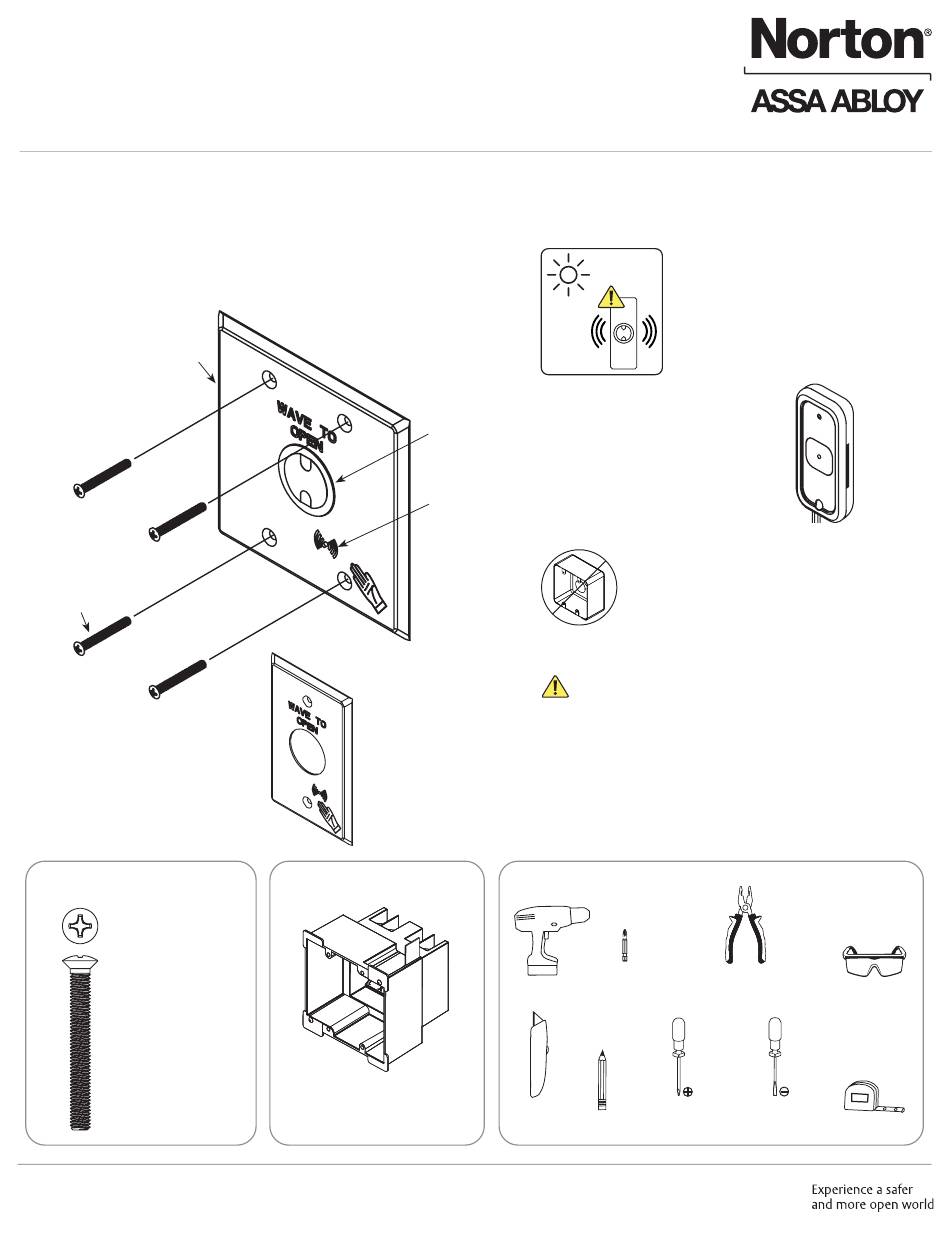

Assa Abloy Norton 700 Installation Instructions

Model 700 Wave to Open Switch
Standard Double or Single Gang
Installation Instructions
Specifications:
Input Voltage: 12V to24VDC
SPDT Contact Rating: 2A @30VAC/VDC
Sensor Detection Range: Up to 4" (101mm)
Operating Temperature: -13° F to 131°F (-25°C to 55°C)
Current Draw: 50mA @12VDC, 65mA @24VDC
Wave to Open Switch
(Double Gang)
M3.5 Screws
Single Gang Plate
Supplied Fasteners
4x
M3.5
Phillips Oval Head
Machine Screw
Depending on
conduit housing,
screws may be
supplied by others.
Copyright © 2017, 2020, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9370-0001-020 Rev 4 11/20
LED
Manual
Override
Button
Supplied By Others
Plastic Conduit Housing/Screws
when using RF transmitter
Double Gang Housing shown
Approved 2020-12-01
Bright light like direct sunlight can
interfere with the Wave To Open signal.
Norton Radio Frequency Transmitter
(P/N 548) is sold separately.
Metal enclosures can reduce signal strength
and cause an intermittent or reduced signal
reception when using a radio frequency
L
T A
M E
transmitter. To ensure proper function, do not
use metal conduit housing.
WARNING
This product can expose you to lead which is known to the
state of California to cause cancer and birth defects or other
reproductive harm. For more information go to
www.P65warnings.ca.gov.
Tools Needed
Phillips
Drive Bit
Drill
Utility
Phillips Head
Knife Pencil Screwdriver
Wire Stripper/
Cutter
Safety Glasses
Flat Head
Tape Measure
Screwdriver
