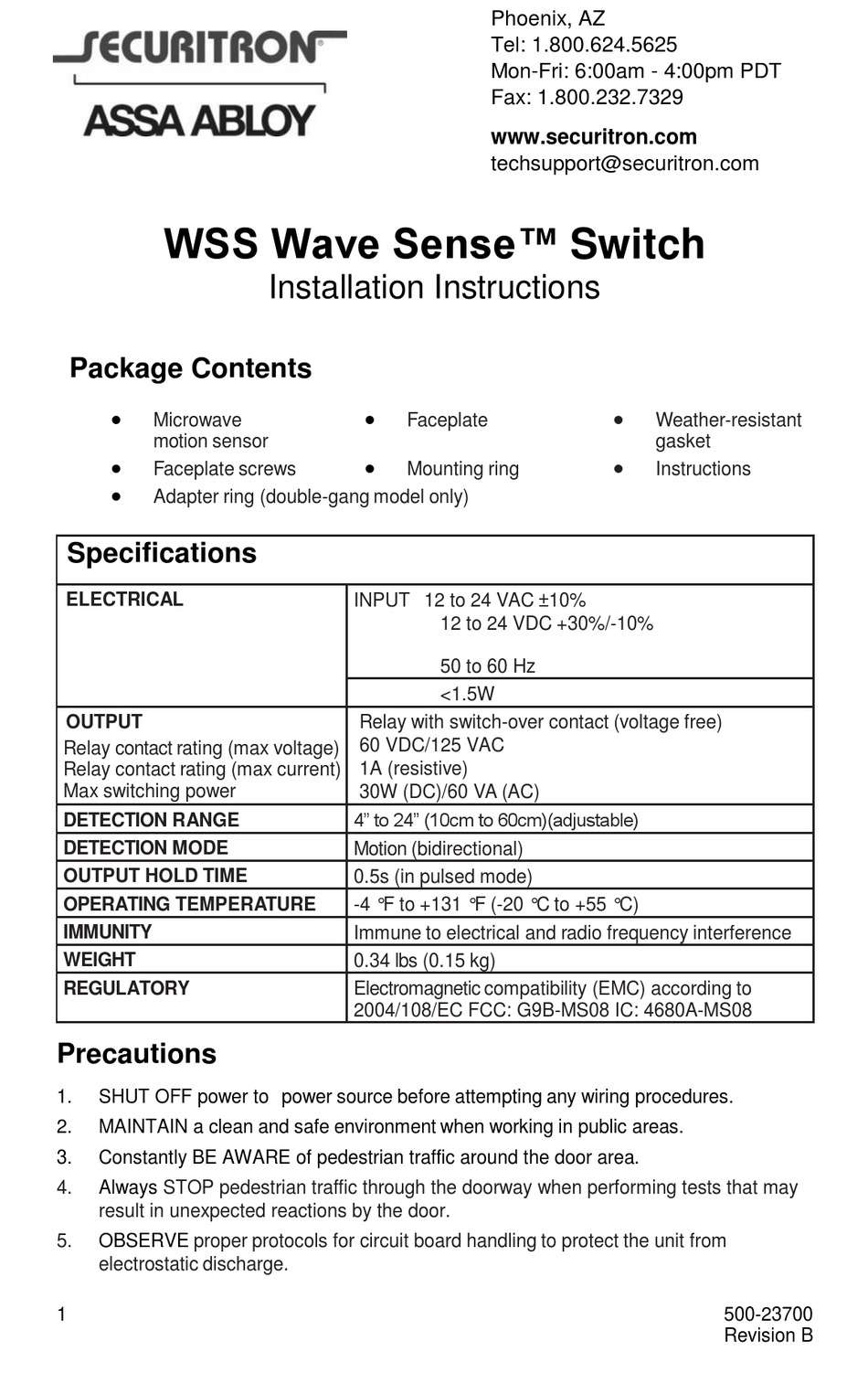

Assa Abloy Securitron WSS Wave Sense Installation Instructions

WSS Wave Sense™ Switch

Package Contents


Microwave
motion sensor

Faceplate screws

Adapter ring (double-gang model only)

Specifications

ELECTRICAL
OUTPUT
Relay contact rating (max voltage)
Relay contact rating (max current)
Max switching power
DETECTION RANGE
DETECTION MODE
OUTPUT HOLD TIME
OPERATING TEMPERATURE
IMMUNITY
WEIGHT
REGULATORY

Precautions

1. SHUT OFF power to power source before attempting any wiring procedures.
2. MAINTAIN a clean and safe environment when working in public areas.
3. Constantly BE AWARE of pedestrian traffic around the door area.
4. Always STOP pedestrian traffic through the doorway when performing tests that may
result in unexpected reactions by the door.
5. OBSERVE proper protocols for circuit board handling to protect the unit from
electrostatic discharge.
1
Installation Instructions

Faceplate

Mounting ring
INPUT 12 to 24 VAC ±10%
Relay with switch-over contact (voltage free)
60 VDC/125 VAC
1A (resistive)
30W (DC)/60 VA (AC)
4" to 24" (10cm to 60cm)(adjustable)
Motion (bidirectional)
0.5s (in pulsed mode)
-4 °F to +131 °F (-20 °C to +55 °C)
Immune to electrical and radio frequency interference
0.34 lbs (0.15 kg)
Electromagnetic compatibility (EMC) according to
2004/108/EC FCC: G9B-MS08 IC: 4680A-MS08
Phoenix, AZ
Tel: 1.800.624.5625
Mon-Fri: 6:00am - 4:00pm PDT
Fax: 1.800.232.7329
www.securitron.com
techsupport@securitron.com
12 to 24 VDC +30%/-10%
50 to 60 Hz
<1.5W

Weather-resistant
gasket

Instructions
500-23700
Revision B
