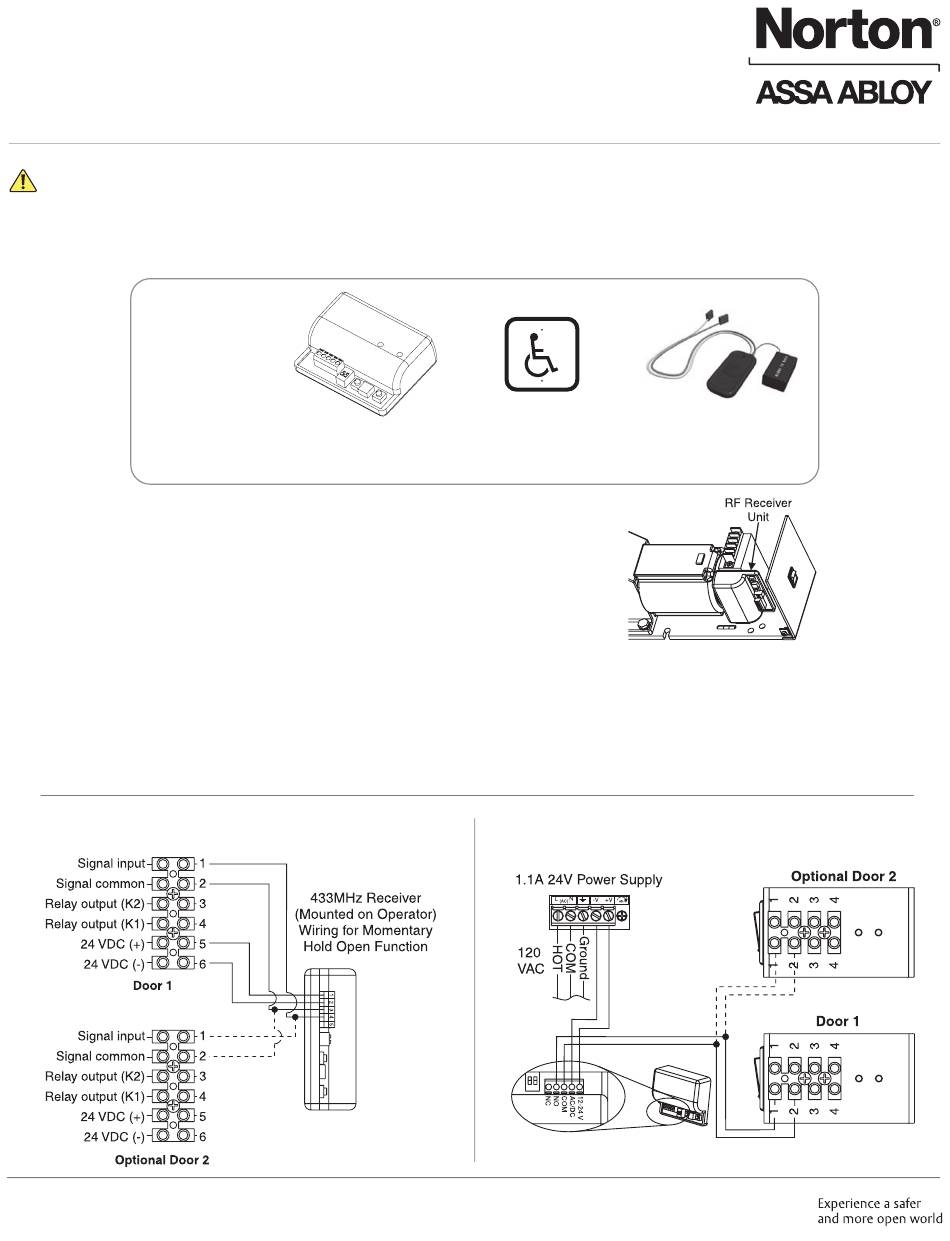

Assa Abloy Norton 564 Wiring Instructions

564/565 Push Button Kit
Wiring Instructions
for 5600, 5700, 6000 and 6300 Power Operators
WARNING
This product can expose you to lead which is known to the state of
California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65warnings.ca.gov.

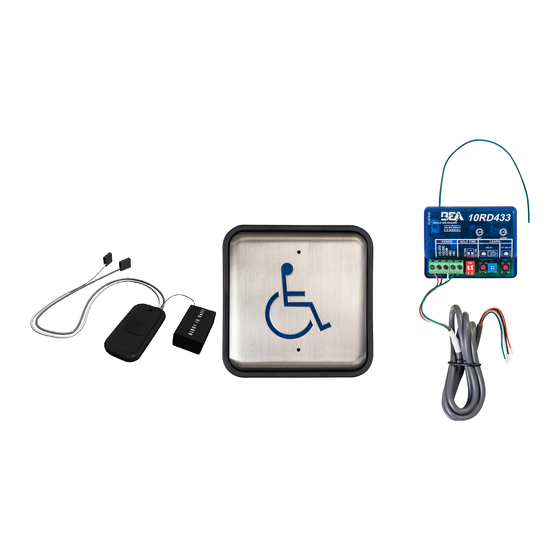

Included in Kit:

Note: User guide
for transmitter and
receiver is included
with components.

Operation:

• Door is normally closed.
• Activating wireless switch or hand held wireless
transmitter will open door.
• Door will close after hold open time delay has elapsed.

NOTE:

1. Power input to Door Operator Unit is at "T1" Power
Input Terminal (not shown) 120VAC 60Hz.
2. Door must be visible by person operating activation
switch(es).
3. Current draw at Power Outputs not to exceed 1.3 amps.

5600 Power Operators:

Copyright © 2020, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9360-0103-020 Rev 1 03/20
539 Receiver ADA1019-1 Push Button
x1 - 564
x1 - 565
Pour la version francaise voir www.nortondoorcontrols.com.
READ AND FOLLOW ALL INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
548 Transmitter
x1 - 564
x2 - 565

Example installation of RF receiver:

• Position supplied hook and loop fastener
onto back of receiver. Remove protective film.
• Press receiver onto inside of end cap or where
space will allow with green wire toward
conduit hole.
• Refer to specific section to wire.

5700 Power Operators:

x1 - 564
x2 - 565
