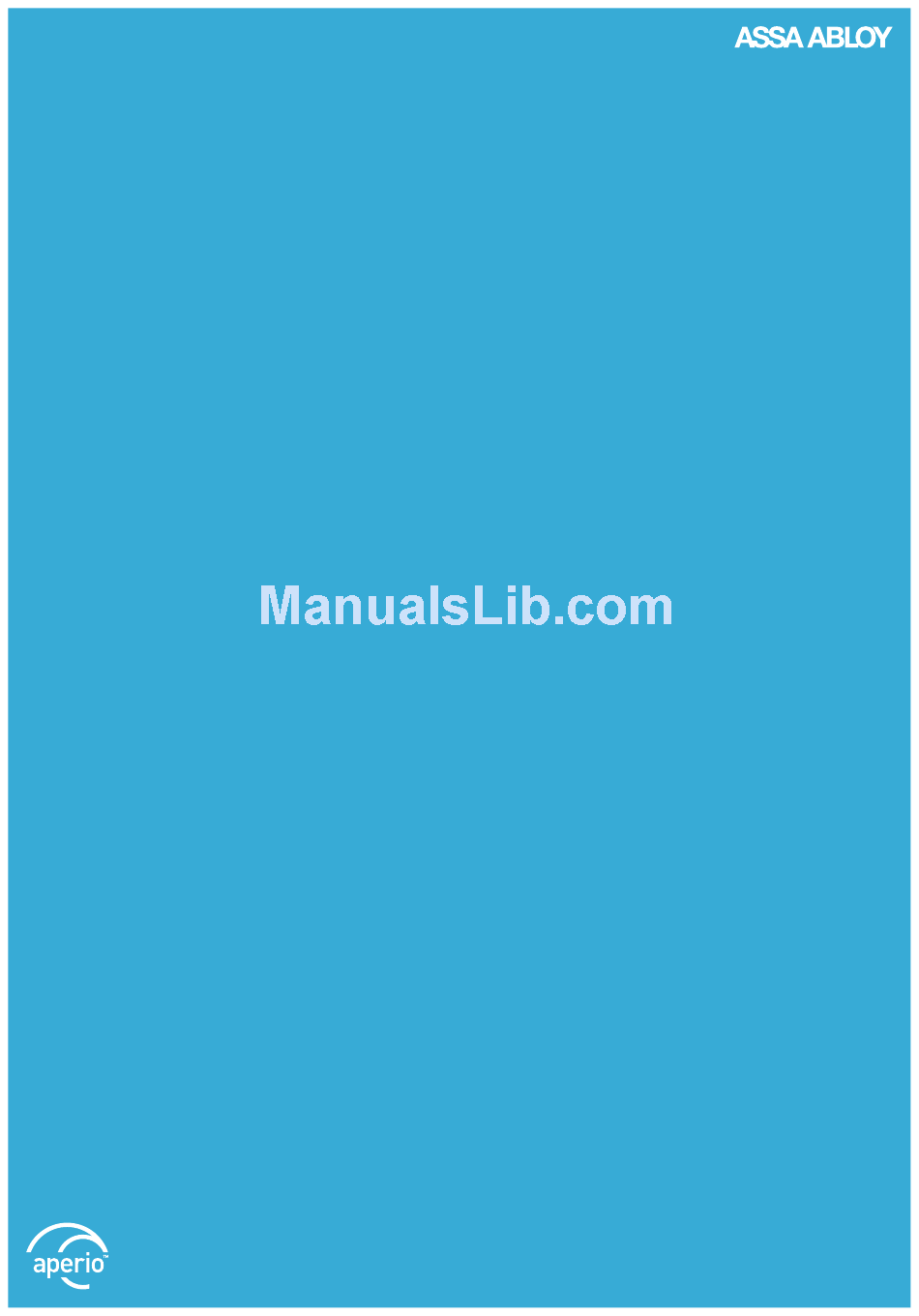

- Page 1 Aperio ® Online Quick Installation Guide Document No: ST-001322-B, Issue date: 11 October 2013 The global leader in door opening solutions...
-
Page 2: Table Of Contents
The Aperio Programming Application ........................4 Regulatory and security information .........................4 Communication hub versions and EAC interface ....................4 3 Quick Installation of Aperio lock and Communication Hub ........... 5 Automatic pairing ................................5 Paring with the Aperio Programming Application....................6 Information of encryption key ..............................6 Checklist for pairing and configuration of locks/sensors and communication hubs............ -
Page 3: Introduction
This manual can be used for AH15/20/30 necessary information for a quick installation of communication hubs. For AH40 communication Aperio Online based products using the Aperio hub, refer to the Aperio Online Programming Online Programming Application. Application Manual, ref [1]. -
Page 4: System Overview
The Aperio system Communication hub versions and EAC interface The Aperio system is used in the following way: The user holds an RFID card in front of the lock. The lock sends card credentials wirelessly to the There are four communication hub types... -
Page 5: Quick Installation Of Aperio Lock And Communication Hub
Automatic pairing will only be made with unpaired locks. Communication hub and locks may be sold pre-paired from factory. If this is the case, the following pairing procedure is not necessary. However, configuration using the Aperio Pro- gramming Application is still needed. -
Page 6: Paring With The Aperio Programming Application
For installation of the Programming Application Proper handling of encryption keys is essential to lock/sensor security! and the USB Radio dongle, refer to the Aperio Online Programming Application manual, ref [1]. It is absolutely necessary to use the customer encryption key by setting all... -
Page 7: Checklist For Pairing And Configuration Of Locks/Sensors And Communication Hubs
∙ ∙ configuration of the radio communication. These and a number of other advanced settings are described in the Aperio Online Programming Application manual, ref [1]. The quick installation process does NOT require that the EAC is connected to the Aperio hardware. Quick installation can be performed on hardware not yet mechanically installed. -
Page 8: Preparation Before Quick Installation
Install the Programming Application and USB Radio dongle drivers on your laptop. Refer to ref [2], ∙ Aperio Online Programming Application manual for instructions. The software and encryption key file is delivered from your local ASSA ABLOY company. Make sure the communication hub is powered (8-24V) and that batteries are installed in the lock. -
Page 9: Step 2 - Scanning For Communication Hubs
Aperio Online ® 6) Enter a password of at least 8 characters for the door installation and confirm it. Click OK. Step 2 - Scanning for Communication hubs Follow these steps to scan for doors: 7) Select Scan-Quick scan to find communication hubs. (Or open an earlier created installation) Result: All communication hubs within reach of the USB Radio device of your computer are displayed in the scan result table. -
Page 10: Step 3 - Pairing Locks/Sensors With Communication Hub
Aperio Online ® 9) Select the communication hub(s) that you want to include in your installation. Click Show details to view detailed information in the installation view. Step 3 - Pairing locks/sensors with communication hub AH30/AH40 version of the communication hub can be paired with a combination of up to 8 locks/ sensors. - Page 11 Aperio Online ® 2) The pairing process starts. Hold the credential at the lock, or engage the magnet for the sensor to pair the hardware with the communication hub. 3) When the lock has stopped blinking you can click Done to see the pairing result.
-
Page 12: Step 4 - Configuring Locks And Communication Hubs Wizard
This procedure describes a configuration example of locks and communication hubs using: Override credential card, secure communication and DIP Switch addressing mode. For other settings and addressing modes, refer to Aperio Online Programming Application manual, ref [1]. Before configuration, check that Update device time during door configuration is activated. Enter ∙... - Page 13 Aperio Online ® 2) On the RFID Configuration page, click Next without any changes. (iCLASS RFID format is also supported by the programming application. However, no settings are necessary.) 3) If advanced mode is activated the Keypad configuration page will appear. Leave without changes by clicking Next.
- Page 14 Aperio Online ® 5) Click OK followed by Next in the Wizard main window. 6) On the Security mode Setting page, click Change to switch to Customer mode in both the lock and communication hub, to obtain secure communication using the Encryption key.
- Page 15 Aperio Online ® 11) On the Device Update page, check that the summary of the configuration tasks that will be sent to the lock is correct. 12) Click Save configuration to facilitate further lock configurations (for other hubs/locks) using the same communication hub.
- Page 16 Aperio Online ® 14) If necessary hold the credential in front of the lock to activate the radio. 15) After successful update, click Close. Using the wizard for a communication hub with only one lock paired, customer mode is set both for the lock and communication hub. For communication hubs with several locks paired a message stating that there is a security mode conflict will appear.
-
Page 17: Step 5 - Apply Saved Configuration On Several Locks
Aperio Online ® Step 5 - Apply saved configuration on several locks If you have more than one lock that will use the same configuration you can apply the recently saved configuration on any lock in your installation. 1) Right click on a lock and select Lock/sensor – Apply configuration – [your configuration] 2) Confirm the update by clicking Confirm. - Page 18 Aperio Online ® 4) After successful update, click Close. 5) Repeat the configuration for all locks paired to the communication hub. 6) Finally activate customer mode for the communication on the right click menu, Communication hub - Switch to customer mode.
-
Page 19: Step 6 - Testing After Configuration
Aperio Online ® Step 6 - Testing after configuration Follow these steps to test that the installation and first configuration of each communication hub and lock has been performed correctly and that the hardware is working: 1) Check that the communication hub LED has a steady green light (if connected to EAC). This indicates that... -
Page 20: Led Indications
4 LED Indications Aperio Online ® Communication Hub LED indications The communication hub has a single LED. It supports an optical scheme with red, green and yellow. The indication scheme is described by the figures below: Communica- Figure 2. 2 sec. -
Page 21: Lock Led Indications
Aperio Online ® Lock LED indications The lock has three LEDs. They support an optical scheme with red, yellow and green. The indication scheme is described by the figures below: Lock normal Figure 5. EAC response Enter PIN Card+PIN access... -
Page 22: Lock Self Test Led Indication
Aperio Online ® Lock self test LED indication After replacing the battery, a Power on Self Test (POST) is performed. The result is indicated using a series of red and green LED flashes as is described by the figure below:... -
Page 23: Troubleshooting
USB radio from the PC. Aperio Hubs are default configured to select the best channel out of three possible, if the selected channel is disturbed a new channel selection will be done automatically. Communication hubs in an Aperio system normally distribute themselves on different channels but a synchronized power up of all Hubs may cause them to initially choose the same channel. -
Page 24: During Normal Operation
∙ ∙ The communication hub The EAC address is not properly Configure the EAC address. Refer to the Aperio LED is flashing red twice = configured in the communication mechanical installation manual. no connection between hub. - Page 28 ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience Contact www.assaabloy.com/aperio Wireless lock technology...
