Model 704 Wave to Open Switch
1-3/4" Wide Jamb Mounting
Installation Instructions
WARNING
This product can expose you to lead which is known to the state of
California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65warnings.ca.gov.
Specifications:
Input Voltage: 12V to24VDC
SPDT Contact Rating: 2A @30VAC/VDC
Sensor Detection Range: Up to 4" (101mm)
Operating Temperature: -13° F to 131°F (-25°C to 55°C)
Current Draw: 50mA @12VDC, 65mA @24VDC
Components
Conduit supplied by others
#8 Screw

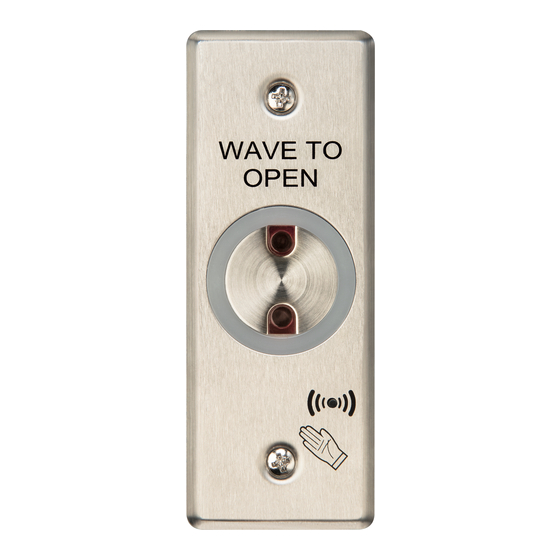

Wave to Open
Switch
M3 Screw
Copyright © 2020, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9370-0002-020 Rev 2 07/20
Supplied Fasteners
Conduit
Housing
M3 x 8.3mm Philips
Flat Head Machine
Approved 2020-07-09
This unit is not supplied with a radio frequency transmitter.
If a transmitter is added, a deeper surface mounted box,
supplied by others, will be needed.
2x 4x
#8 Phillips Round
Head Metal
Screw Drilling Screw
Tools Needed
Safety Glasses
Phillips Head Flat Head
Tape Measure Screwdriver Screwdriver
1/8"
Phillips
Bit Drive Bit
Drill
Center Deburring Wire Stripper/
Pencil
Punch Tool
Cutter
Step
Bit
