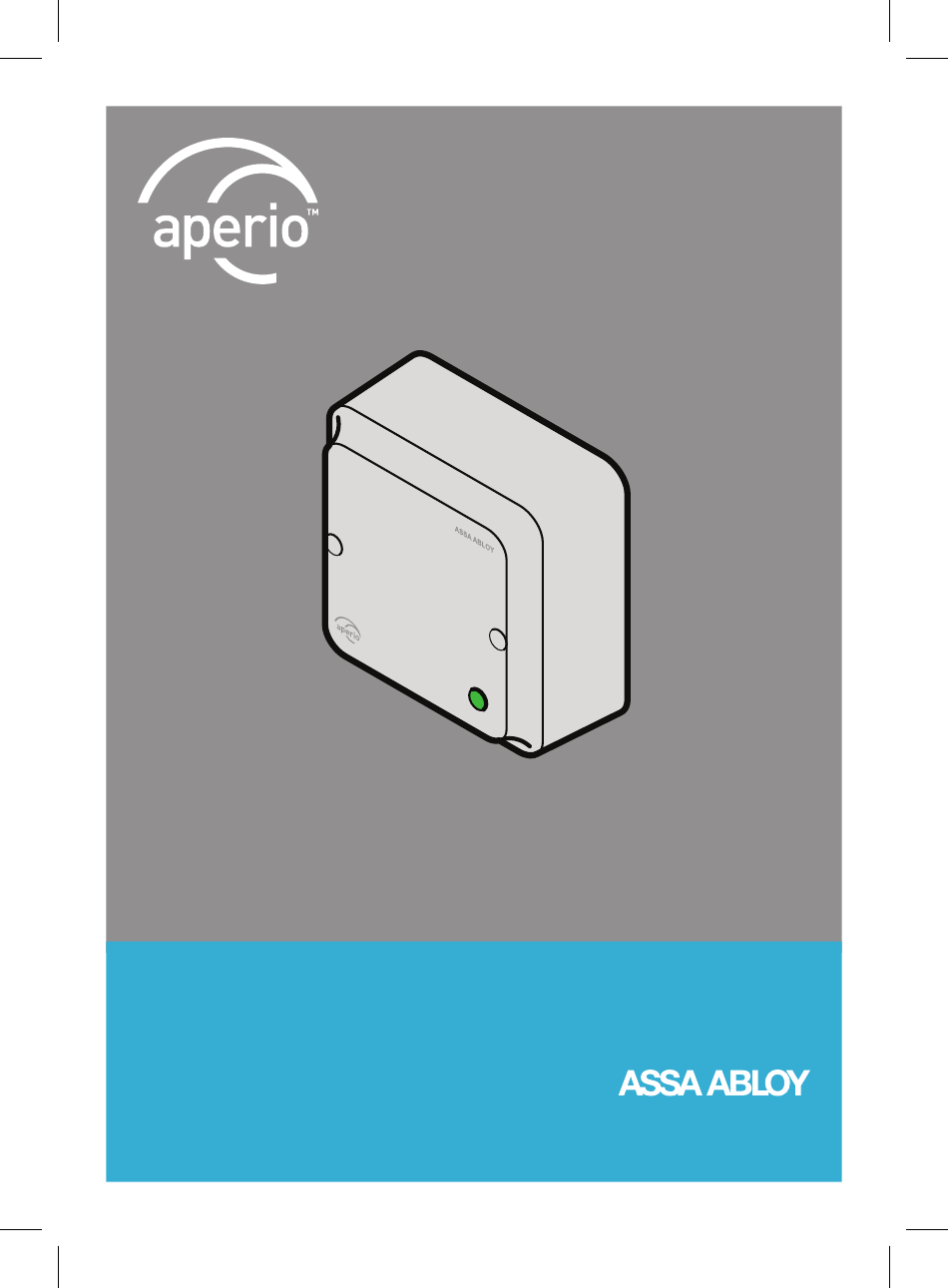

- Page 1 Aperio™ Hub AH20/AH30 Installation Instructions Covers AAWL-260 ASSA ABLOY, the global leader 3 May 2011 in door opening solutions...
-
Page 2: Table Of Contents
AH20/AH30 - Table of Contents AH20/AH30 - FCC and Industry Canada Statements AH20/AH30 - Placement of Communication Hub AH20 (J100) - Connections AH20 (J103) - Connections AH20 - DIP Switch Configuration Table AH30 (J100) - Connections AH30 - DIP Switch Configuration Table AH30 - RS485 Bus Connection AH30 - RS485 Addressing 12-13... -
Page 3: Ah20/Ah30 - Fcc And Industry Canada Statements
AH20/AH30 - FCC and Industry Canada Statements This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Ah20/Ah30 - Placement Of Communication Hub
AH20/AH30 - Placement of Communication Hub < 2 AH20 (Wiegand Hub) - Placement of the Hub, 1 door Note: AH20 can be installed with an Aperio bottom cover or Americas adaptor plate. < 2 AH30 (RS485 Hub) - Placement of the Hub, 1-8 doors Note: Note: AH20/AH30 must be installed into a junction box ex European 2-Gang, Aperio bottom cover or with Americas adaptor plate to junction box. -
Page 5: Ah20 (J100) - Connections
AH20 (J100) - Connections AH20 Connectors (J100) Note: The installation shall comply with national wiring regulations. - Page 6 AH20 (J100) - Connections Communication Hub hardware version AH20 has four Wiegand signals plus power supply. The purpose and connection of these signals are described in the table below. esCription onneCtor Wiegand Data 1 signal. Output from Communication Hub. DATA 1 Used to transmit credentials.
-
Page 7: Ah20 (J103) - Connections
AH20 (J103) - Connections AH20 Connectors (J103) elays esCription Relay 1 Relay max voltage: 30 VDC Relay max current: 1 A Relay 2 resistive load Relay 3 Battery Alarm Output On the AH20 four form C Tamper Alarm Output/ Relay 4 relays are available.The Lock Jammed purpose of the four relays... -
Page 8: Ah20 - Dip Switch Configuration Table
AH20 - DIP Switch Configuration Table witCH abel esCription umber Controls use of LED Red signal for access decision. ON => LED Red is used. OFF => LED Red is ignored. Set to OFF by default. Reserved for future use. Controls addition of parity bits if required. -
Page 9: Ah30 (J100) - Connections
AH30 (J100) - Connections AH30 (J100) Connectors esCription onneCtor RS485 Data A. RS485 Data B. GND = Signal ground. Should be connected to EAC system GND and power supply GND. Power supply input, 8-24 V DC. The power supply shall be a Limited Power Source (LPS) according to EN 60950-1. -
Page 10: Ah30 - Dip Switch Configuration Table
AH30 - DIP Switch Configuration Table witCH abel esCription umber Controls RS485 addressing BIT 0-BIT 4. ON => Address bit set. A0-A4 OFF => Address bit NOT set. See AH30 - RS485 Addressing Reference on page 13. Controls use of RS485 pull down resistor. DOWN ON =>... -
Page 11: Ah30 - Rs485 Bus Connection
AH30 - RS485 Bus Connection Examples of connection of multiple Communication Hubs to a single RS-485 bus of an EAC system: Hub 1 EAC system Termination DIP 6 OFF enabled DIP 7 OFF DIP 7 OFF Hub 2 DIP 6 OFF DIP 7 OFF DIP 7 OFF Hub N... -
Page 12: Ah30 - Rs485 Addressing
AH30 - RS485 Addressing DDress Pairing Active Address examples... - Page 13 AH30 - RS485 Addressing DDress Address examples * = A4 is only supported on AH30 in 1 - 1 mode.
-
Page 14: Ah20/Ah30 - Communication Hub Led Indication
AH20/AH30 - Communication Hub LED Indication The Communication Hub has a single LED that supports an optical scheme with red, green and yellow. The indication scheme is described by the two figures below: Online Green Aperio Lock Green + One Offline Red Flash Green + Two... -
Page 15: Ah20/Ah30 - Technical Data
One reverse polarity SMA external antenna connector. AH20/30 is certified to be used with External Antenna Assa Abloy external antenna AH-ANTENNA-1. If other external antenna is used it must be of same type (dipole) and not have larger antenna gain than 3,9dBi. - Page 16 ASSA ABLOY, the global leader in door opening solutions...
