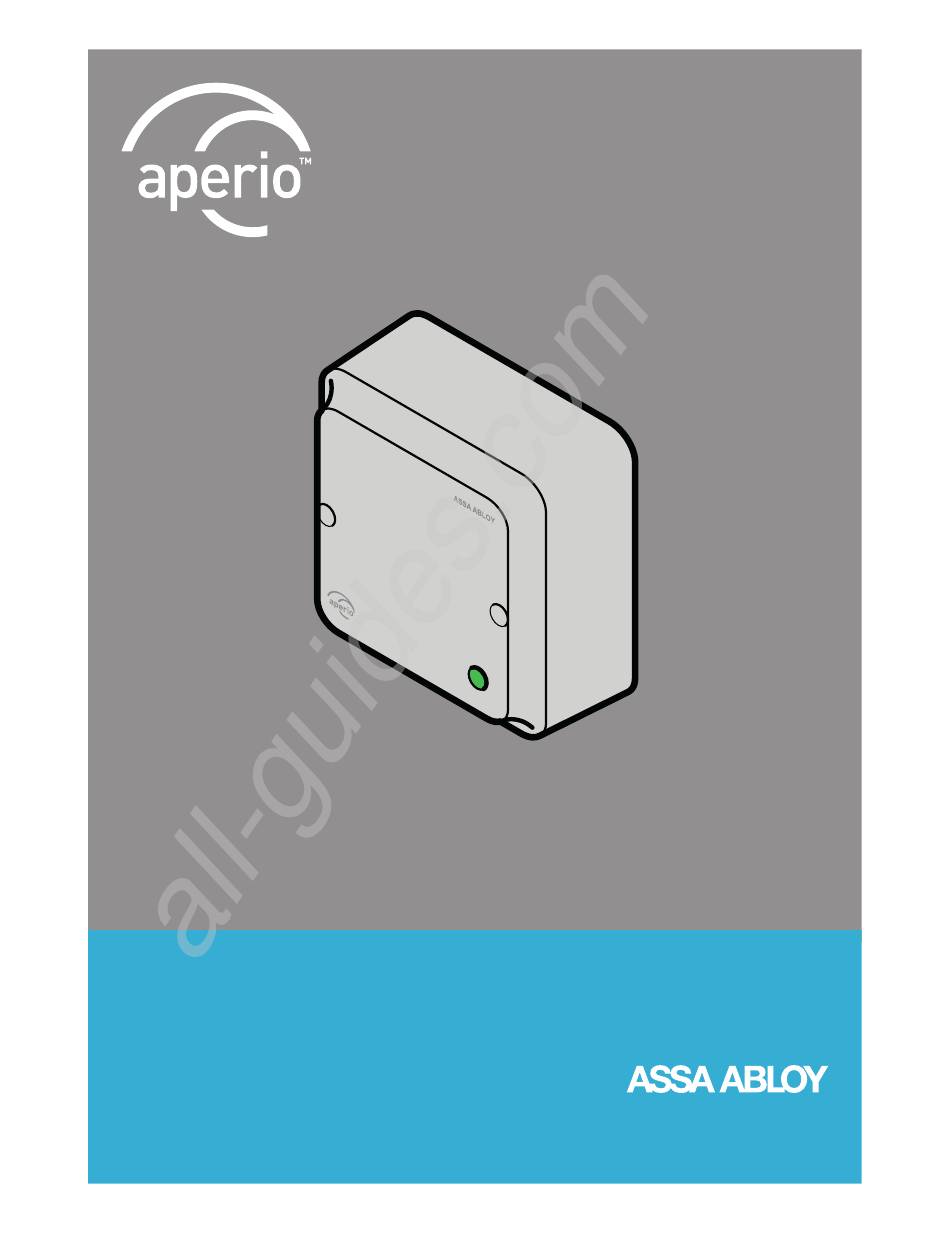

- Page 1 All manuals and user guides at all-guides.com Aperio ® AH40 Installation Instructions ASSA ABLOY, the global leader in door opening solutions...
- Page 2 All manuals and user guides at all-guides.com AH40 - Table of Contents AH40 - FCC and Industry Canada Statements AH40 - Placement of Communication Hub AH40 - Connectors AH40 - Jumpers AH40 - Communication Hub LED Indications AH40 - Technical Data ETL marking Recognized component N 16329...
- Page 3 All manuals and user guides at all-guides.com AH40 - FCC and Industry Canada Statements This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 All manuals and user guides at all-guides.com AH40 - Placement of Communication Hub < 2 Placement of the Hub, 1-8 doors Note: AH40 must be installed into a junction box ex European 2-Gang, Aperio bottom cover or with Americas adaptor plate to junction box.
- Page 5 All manuals and user guides at all-guides.com AH40 - Connectors ANTENNA EXT INT J201 LINK PAIR J321 8-24V onneCtors esCription Ethernet connector. Connection to the Electronic Access Control system through a 10BASE-T / 100BASE-TX Local J201 Area Network. Can also be used for power supply if connected to a IEEE 802.3af compliant Power Sourcing Device (PSE).
- Page 6 All manuals and user guides at all-guides.com AH40 - Jumpers ANTENNA EXT INT J201 LINK PAIR J321 8-24V umpers esCription Select external antenna by connecting the two left pins. ANTENNA Select internal antenna by connecting the two right pins. PAIR Select pairing mode by connecting the two left pins.
- Page 7 All manuals and user guides at all-guides.com AH40 - Communication Hub LED Indications The Communication Hub has a status LED visible through the front cover. It supports optical schemes with red, green and yellow. The indication schemes are described by the figure below: Online Green Aperio...
- Page 8 All manuals and user guides at all-guides.com AH40 - Technical Data Physical Dimensions 82 mm x 82 mm x 37 mm (H x W x T) Power Supply 8-24 VDC or Power over Ethernet (PoE) Power supply The power supply shall be able to deliver minimum 3.5 W.
- Page 9 All manuals and user guides at all-guides.com NOTE...
- Page 10 All manuals and user guides at all-guides.com NOTE...
- Page 11 All manuals and user guides at all-guides.com NOTE...
- Page 12 All manuals and user guides at all-guides.com www.assaabloy.com/aperio ASSA ABLOY, the global leader in door opening solutions...
