User Instructions
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn off all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
2/17

Advertisement

Table of Contents
loading

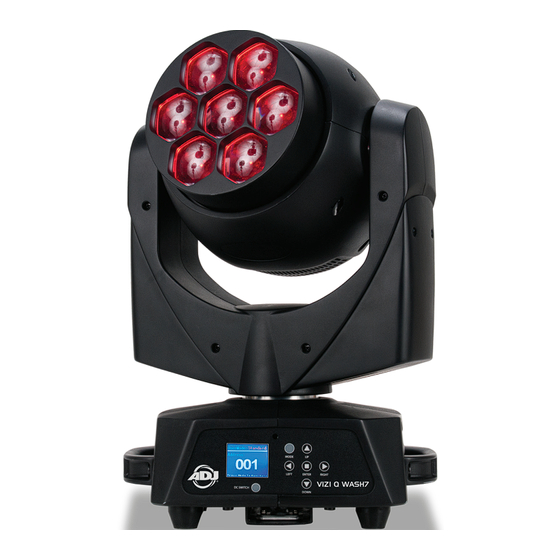

Summary of Contents for ADJ Vizi Q Wash7

  • Page 1 ©2017 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
  • Page 2: Table Of Contents

    Introduction: DMX Set-Up................9-11 The Vizi Q Wash7 is a DMX intelligent, moving head, wash fixture. The Vizi Q Wash7 has 3 DMX channel modes; 17 chan- DMX Control................12 nels, 19 channels, or 23 channels. The fixture has two different oper- DMX Traits................13-21...
  • Page 3: Safety Precautions

    Product Registration be walked on or pinched by items placed upon or against them, The Vizi Q Wash7 carries a two year limited warranty. Please fill out paying particular attention to cords at plugs, convenience recep- the enclosed warranty card to validate your purchase. All returned tacles, and the point where they exit from the appliance.
  • Page 4: Mounting

    (see next page). Never use the carrying handles for secondary attachment. ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 6 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 7...
  • Page 5: Dmx Set-Up

    Data Cable (DMX Cable) Requirements (For DMX and Master/Slave Operation): The Vizi Q Wash7 can be controlled via DMX-512 pro- tocol. The Vizi Q Wash7 can be either a 17, 19, or 23 channel DMX unit. The DMX address is set electronically using the controls on the Screw one clamp each via a M12 screw and nut onto the front panel of the unit.
  • Page 6 120 Ohm 1/4 W) between PIN 2 (DMX-) Figure 4 and PIN 3 (DMX +) of the last fixture. ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 10 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 11...
  • Page 7 ALL RED LED grams tailored to your individual needs. 0% - 100% 1. The Vizi Q Wash7 has 3 DMX channel modes; 17 Channel mode, 0 - 255 ALL GREEN LED 19 Channel mode, and 23 Channel mode. See pages 13-21 for 0% - 100% detailed description of the DMX traits.
  • Page 8 FAST - SLOW 226 - 235 BLACKOUT BY MOVEMENT 236 - 255 NO FUNCTION ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 14 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 15...
  • Page 9 FAST - SLOW 226 - 235 BLACKOUT BY MOVEMENT 236 - 255 NO FUNCTION ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 16 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 17...
  • Page 10 DIMMER FINE 0 - 255 0% - 100% FOCUS 0 - 255 NEAR - FAR ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 18 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 19...
  • Page 11 FAST - SLOW 226 - 235 BLACKOUT BY MOVEMENT 236 - 255 NO FUNCTION ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 20 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 21...
  • Page 12: Color Macro Chart

    ~ Edit Scene 250 Fade Time Secne Time Input By Outside Sce.Input XX~XX video scenes automatically ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 22 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 23...
  • Page 13: System Menu

    Extended Mode - This is 23 Channel Mode. EXAMPLE: If you want the address to be 57, you must first set ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 24 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 25...
  • Page 14 4. Either “Off” or “On” will be displayed, use the LEFT or RIGHT but- ENTER. tons to toggle between. ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 26 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 27...
  • Page 15 5. Press ENTER to confirm your selection or press MODE to exit. 1. Access the main menu, and press the UP or DOWN buttons so ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 28 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 29...
  • Page 16 4. Either “Off” or “On” will be displayed, use the LEFT or RIGHT but- DOWN buttons so that “Function” is highlighted, then press ENTER. ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 30 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 31...
  • Page 17 MODE button to exit. This address must match the address that is set to WiFly TransCeiver ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 33 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 32...
  • Page 18 Current - This will allow you to check units current running time since press ENTER. power has been activated. ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 34 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 35...
  • Page 19 1. Press the MODE button to access the main menu. Press the UP ENTER. or DOWN buttons so that “Information” is highlighted, then press ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 36 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 37...
  • Page 20 4. Press ENTER when you find the function you would like to adjust or press MODE to exit. ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 38 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 39...
  • Page 21: Operation

    The first unit in the chain (master) will use the female XLR 3. Apply power to the ADJ WiFly Transceiver. The fixture must be set up first before you apply power to WiFly Transceiver. connector only - The last unit in the chain will use the male XLR note: If the sync does not work, switch the WiFly power off then on again.
  • Page 22: Photometric Chart

    10° Diameter(m) 0.17 0.37 0.53 0.73 0.90 69° Diameter(m) 1.38 2.78 4.18 5.58 6.98 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 42 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 43...
  • Page 23: Dimmer Curve Chart

    Tapping on the microphone, quiet or high pitched sounds may Standard not activate the unit. Stage Architectural Theatre ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 44 ADJ Products, LLC - www.adj.com - Vizi Q Wash7 Instruction Manual Page 45...
  • Page 24: Warranty

    This warranty is void if the serial number has been altered or removed; if the product is modified in any Fuse: manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior duty Cycle: None written authorization was issued to purchaser by ADJ Products, LLC;...
