Summary of Contents for ADJ VIZI CMY 16RX

  • Page 1 VIZI CMY 16RX User Instructions...

  • Page 2: Table Of Contents

    Lamp and Fuse Replacement ................34 Cleaning ......................35 Changing the Gobo and Troubleshooting ............36 Specifications ..................... 37 Warranty ......................38 Optional Accessories ..................39     ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 2...
  • Page 3 To avoid power consumption in idle mode, disconnect all electrical equipment from power when not in use. Thank you!     ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 3...

  • Page 4: Introduction

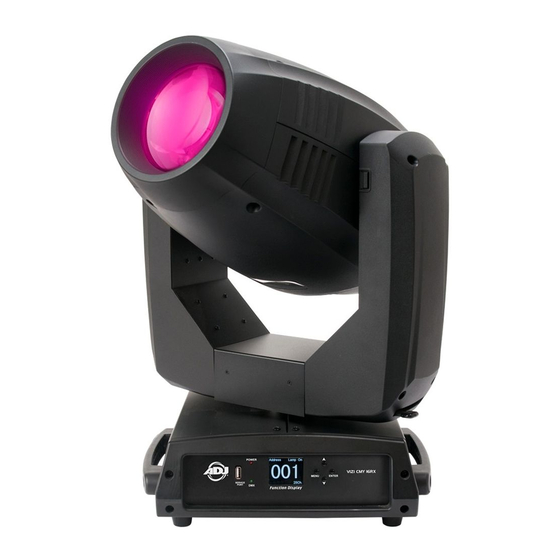

    VIZI CMY 16RX Introduction Overview: The Vizi CMY 16RX is a DMX intelligent, moving head fixture. The Vizi CMY 16RX is a 23/25-channel DMX unit. This fixture is a DMX controlled unit. For best results use fog or special effects smoke to enhance the beams projections. During the initial start-up or use of this product a light smoke or smell may arise from the unit.

  • Page 5: Safety Precautions

    B. The appliance has been exposed to rain or water. C. The appliance does not appear to operate normally or exhibits a marked change in performance.       ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 5...

  • Page 6: Features And General Instructions

    Product Registration   The Vizi CMY 16RX carries a one year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight prepaid and accompany a return authorization (R.A.) number.
  • Page 7 ADJ Products, LLC. During operation the housing may become extremely hot. Avoid touching the unit with bare hands while in use. ADJ will not accept any liability for any resulting damages caused by the non-observance. VIZI CMY 16RX...

  • Page 8: Mounting

    (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails (see next page). Never use the carrying handles for secondary attachment. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 8...
  • Page 9 Insert the end in the carabineer and tighten the safety screw. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 9...

  • Page 10: Base Layout (Front And Rear Panels)

    6. Fuse (T-10A): Protect the unit from damage of over current 7. Power: To connect to the mains supply. 8. Power Switch: Turns On/Off the power. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 10...

  • Page 11: Dmx Setup

    XLR connector on either end of the cable. Also remember that DMX cable must be daisy chained and cannot be split. Figure 1 ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 11...

  • Page 12: Line Termination

    Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior. Figure 4 DMX512 IN 3-PIN XLR ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 12...

  • Page 13: Xlr Conversion

    A DMX controller allows you to create unique programs tailored to your individual needs. The Vizi CMY 16RX has a 2 DMX channel modes (23 and 25 channels). See pages 16-22 for detailed description of the DMX traits. To control your fixture in DMX mode, follow the set-up procedures on pages 14, 23-25 as well as the set-up specifications that are included with your DMX controller.

  • Page 14: Control By Universal Dmx Controller

    3 pin XLR: Pin 1: GND, Pin 2: Negative signal (‐), Pin 3: Positive signal (+) • 5 pin XLR: Pin 1: GND, Pin 2: Negative signal (‐), Pin 3: Positive signal (+), • Pin4, Pin5 not used. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 14...

  • Page 15: Gobo And Color Wheels

    Gobo and Color Wheels Static Gobo Wheel Rotating Gobo Wheel DANGER! Before installing or changing the gobo wheel, make sure the device has been switched off. Color Wheel ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 15...

  • Page 16: Dmx Mode Values And Traits

    018‐020 Gobo 6 021‐023 Gobo 7 024‐026 Gobo 8 027‐029 Gobo 9 030‐032 Gobo 10 033‐035 Gobo 11 036‐038 Gobo 12 039‐041 Gobo 13 042‐044 Gobo 14 ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 16...
  • Page 17 Gobo7 Shaking Slow To Fast 118‐122 Gobo8 Shaking Slow To Fast 123‐127 Gobo9 Shaking Slow To Fast 128‐189 Clockwise Rotation Fast to Slow 190‐193 Stop 194‐255 Counter‐Clockwise Rotation Slow To Fast ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 17...
  • Page 18 Blackout While Color Move Disable 110 – 119 Blackout While Gobo Move Enable 120 – 129 Blackout While Gobo Move Disable 130 – 139 Lamp On 140 – 149 Reset XY ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 18...
  • Page 19 Gobo 1 006 ‐ 008 Gobo 2 009 ‐ 011 Gobo 3 012 ‐ 014 Gobo 4 015 ‐ 017 Gobo 5 018 ‐ 020 Gobo 6 ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 19...
  • Page 20 Gobo1 Shaking Slow To Fast 088 ‐ 092 Gobo2 Shaking Slow To Fast 093 ‐ 097 Gobo3 Shaking Slow To Fast 098 ‐ 102 Gobo4 Shaking Slow To Fast ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 20...
  • Page 21 000 – 255 0% - 100% Focus Fine 000 – 255 0% - 100% Zoom 000 – 255 0% – 100% Focus Fine 000 – 255 0% – 100% ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 21...
  • Page 22 Reset Effect 160 – 199 No Function 200 – 209 Reset All 210 – 230 No Function 231 – 239 Lamp Off 240 – 255 No Function ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 22...

  • Page 23: System Menu

    Fixture Hour Use Light Hour Use Temperature   Fixture Information   USB Upgrade File Fan State Firmware Version Pan/Tilt Reset Functions Effect   Factory Restore Special Functions ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 23...
  • Page 24 BLACKOUT - If the DMX signal is lost or interrupted, the unit will • automatically go into stand by mode. Press the MENU button to return to the main menu. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 24...
  • Page 25 “YES” will activate feedback, “NO” will deactivate the function. 4. Press ENTER to confirm your selection or press the MENU button to return to the main menu. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 25...
  • Page 26 3. Use the UP or DOWN buttons to adjust the intensity between1-10. 1 is the lowest intensity, 10 the brightest. 4. Press ENTER to confirm your selection or press the MENU button to return to the main menu. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 26...
  • Page 27 ENTER. The lamp time will now be cleared. 3. To leave this function select “Exit” and press ENTER, or press the MENU button to return to the main menu. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 27...
  • Page 28 2. Press the UP or DOWN buttons until “All” is displayed, and press ENTER. 3. Use the UP or DOWN buttons to switch between “No” or “Yes”. To reset all of the motors, select “Yes” and press ENTER. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 28...
  • Page 29 3. To reset the fixture to factory settings, use the UP or DOWN buttons to “Yes” and press ENTER. If you do not wish to reset to factory settings, highlight “No” and press ENTER. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 29...
  • Page 30 “Pan” is displayed, press ENTER. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to confirm. Press the MENU button for one second to exit. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 30...
  • Page 31 “Color” is displayed, press ENTER. 2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to confirm. Press the MENU button for one second to exit. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 31...
  • Page 32 “RPrism 2 ” is displayed, press ENTER. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to confirm. Press the MENU button for one second to exit. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 32...

  • Page 33: Error Information

    Fail”, “Frost Reset Fail”, “Flat Reset Fail”, “Focus Reset Fail” or “Zoom Reset Fail”. These may appear when turning on or resetting the unit. If some parts such as the PC Board are damaged. Please contact ADJ customer support. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 33...

  • Page 34: Lamp And Fuse Replacement

    DO NOT UNSCREW THE SCREWS ABOVE AND BELOW THE MAIN SCREWS! Pull the lamp door out and rotate to the side as the diagram shows. You will not have access to the lamp. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 34...

  • Page 35: Cleaning

    Clean the internal optics with glass cleaner and a soft cloth every 30-60 days. Always be sure to dry all parts completely before plugging the unit back in. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 35...

  • Page 36: Changing The Gobo And Troubleshooting

    Occasionally lamps become loose during shipping, be sure the lamp is push in to its socket all the way. Be sure the fuse holder is completely and properly seated. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 36...

  • Page 37: Specifications

    52lbs / 23.2 kg Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 37...
  • Page 38 The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.

  • Page 39: Optional Accessories

    Accu-Cable 50-ft, 5-pin male to female DMX cable AC5PDMX50 DMX Terminator Kit (Sku: DMX T-PACK) DRCVIZI Road Case 10A GMA Single Fuse (Sku: DRCVIZI) (Sku: Z-FUSE/GMA-10A) Additional parts and accessories available at www.adj.com ADJ Products, LLC Ÿ ww.adj.com Ÿ VIZI CMY 16RX User Instructions Page 39...
