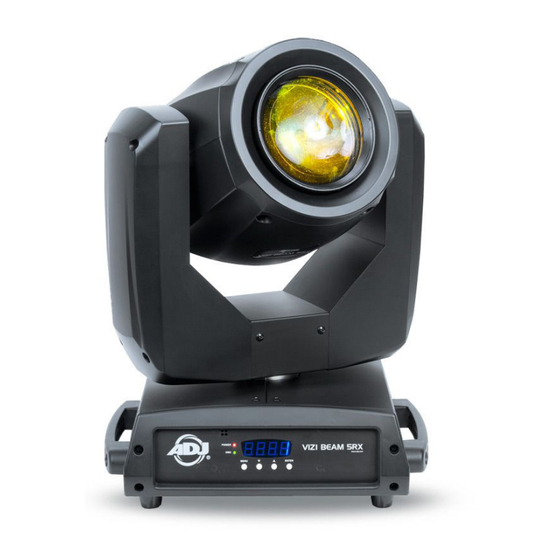

ADJ VIZI BEAM 5RX User Manual

Hide thumbs Also See for VIZI BEAM 5RX:
Table of Contents

Advertisement

Quick Links

Download this manual
VIZI BEAM 5RX
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIZI BEAM 5RX and is the answer not in the manual?

Questions and answers

Related Manuals for ADJ VIZI BEAM 5RX

Summary of Contents for ADJ VIZI BEAM 5RX

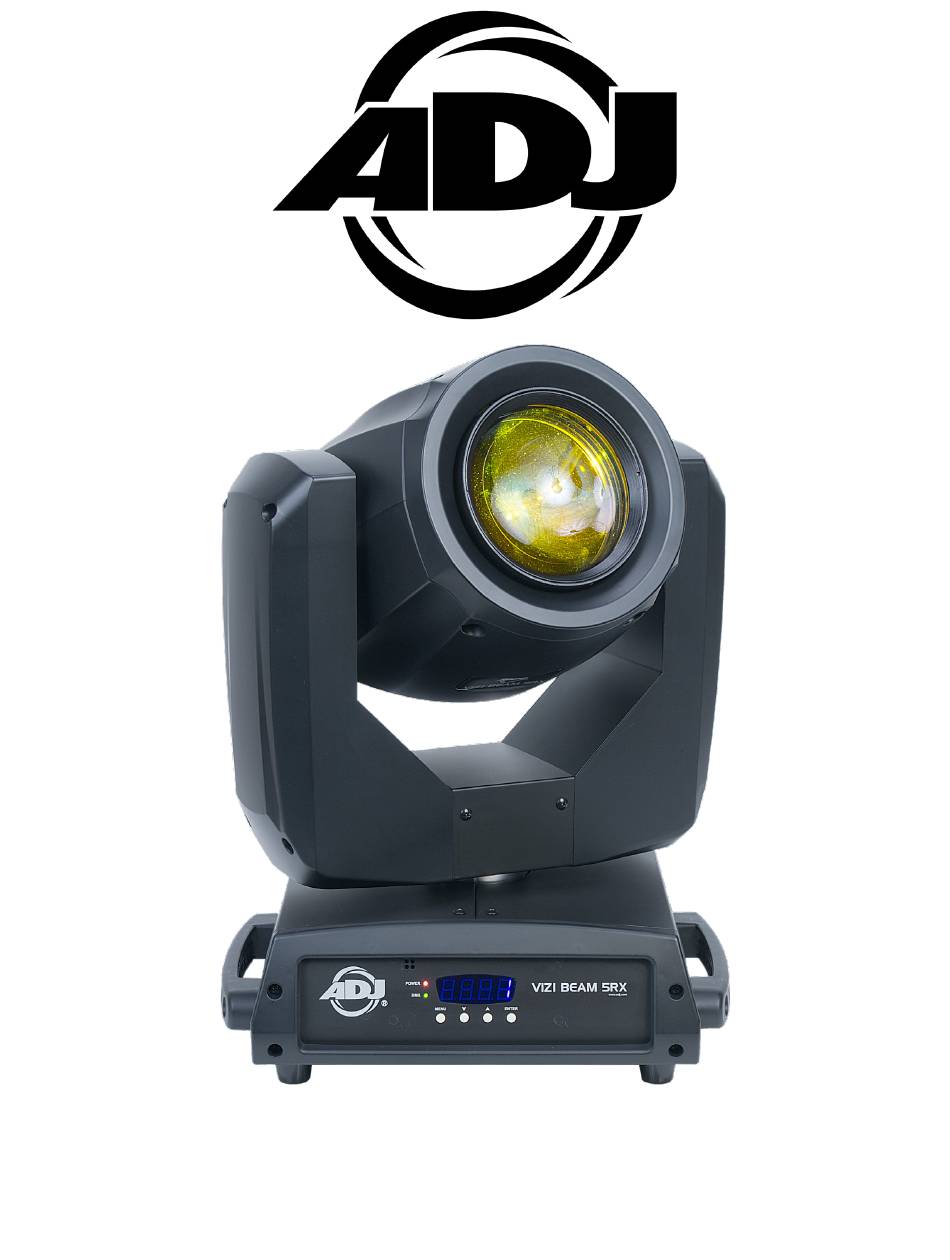

  • Page 1 VIZI BEAM 5RX User Guide...
  • Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: Table Of Contents

    C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Discharge Lamp Safety Guidelines Maintenance Guidelines Overview Installation Instructions Lamp Replacement Setup System Menu DMX Control Offset Menu Photometric Chart DMX Channel Functions and Values Specifications Please see Important Discharge Lamp Warning section for lamp instructions!

  • Page 4: General Information

    Please do NOT discard the outer shipping carton in the trash. Please recycle whenever possible. CUSTOMER SUPPORT: Contact ADJ Service for any product related service and support needs. Also forums.adj.com visit with questions, comments or suggestions.

  • Page 5: Limited Warranty (Usa Only)

    ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual.

  • Page 6: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ is not responsible for injury and/ or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 LEDs. This issue is not specific only to ADJ lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.

  • Page 8: Discharge Lamp Safety Guidelines

    VERY IMPORTANT: This notice pertains to your personal safety as well as the preservation of the fixture. The Philips® Platinum 5R Discharge lamp has a maximum lifetime of 3000 hours. ADJ strongly recommends conducting periodic, regular checks of the lamp running time. When the lamp approaches the 3000 hour mark, it is strongly recommended to replace the lamp.

  • Page 9: Maintenance Guidelines

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

  • Page 10: Overview

    O V E R V I E W Power Switch 3-Pin DMX In POWER AND DMX SIGNAL Power Cable In 3-Pin DMX Out INPUT LEDs Fuse: 250V/10A LCD Display...

  • Page 11: Installation Instructions

    I N S TA L L AT I O N I N S T R U C T I O N S DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO! Fixture MUST be installed following all local, national, and country commercial electrical and construction codes and regulations.
  • Page 12 FIXTURE WILL NOT DROP IF THE CLAMP FAILS. The Vizi Beam 5RX is fully operational in two different mounting positions: hanging upside-down from a ceiling or set on a flat level surface. To avoid internal damage to the unit, never mount the unit on its side, as illustrated above.

  • Page 13: Lamp Replacement

    L A M P R E P L A C E M E N T Caution: Always replace with the lamp with the exact same type, unless otherwise specified by an authorized ADJ® service technician. Replacing it with anything other than the specified part can damage your unit and will void your manufactures warranty.
  • Page 14 L A M P R E P L A C E M E N T 1. Use a screwdriver to unlock and remove the moving-head cover panel using a screwdriver. 2. Ensure the moving head is horizontal as shown below, and remove the lamp cooling fan at the rear of the head.
  • Page 15 L A M P R E P L A C E M E N T 3. Lift the lamp out of its socket as show, and disconnect it. 4. Connect the replacement lamp.
  • Page 16 L A M P R E P L A C E M E N T 5. Place the new lamp into the lamp socket. 6. Adjust the lamp using a slotted screwdriver until it’s centered. 7. Reinstall the fan, then replace and secure the head covers.
  • Page 17 Data Cable (DMX Cable) Requirements (For Standard DMX Operation or Primary/Secondary Operation): The Vizi Beam 5RX can be controlled via DMX-512 protocol. The Vizi Beam 5RX can be either a 16 or 19 channel DMX unit. The DMX address is set electronically using the controls on the side panel of the unit.

  • Page 18: Setup

    XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.

  • Page 19: System Menu

    SYSTEM MENU When making adjustments press ENTER to confirm your setup then press and hold the MENU button for at least 3 seconds. To exit without making any adjustments press the MENU button. The display will lock after 30 seconds. Press the MENU button for 3 seconds to unlock.
  • Page 20 S Y S T E M M E N U ADDR - DMX Address Setting. 1. Press the either the MENU, UP, or DOWN buttons until “ADDR” is displayed, then press ENTER. 2. The current address will now be displayed and flashing. Press the UP or DOWN buttons to find your desired address.

  • Page 21: Dmx Control

    1. The Vizi Beam 5RX has 2 DMX channel modes, 16 channel mode and 19 channel mode. 2. To control your fixture in DMX mode, follow the setup procedures on pages 16-17, as well as the setup specifications that are included with your DMX controller.

  • Page 22: Offset Menu

    O F F S E T M E N U NOTE: ONLY QUALIFIED TECHNICIANS SHOULD PERFORM THIS FUNCTION This function allows small adjustments to be made to the multiple fixture settings to compensate for movement misalignment, and/or when a sensor has been knocked slightly out of position. Improper use of this function can result in undesired operation of this fixture compared to others being used at the same time.
  • Page 23 O F F S E T M E N U OPAN - Adjustment of the pan home position. 1. Press the ENTER button for at least 3 seconds, then press the UP or DOWN buttons so that “oPAn” is displayed, and press ENTER. 2.

  • Page 24: Photometric Chart

    P H O T O M E T R I C C H A R T...

  • Page 25: Dmx Channel Functions And Values

    DMX CHANNELS / VALUES / FUNCTIONS Features subject to change without notice *Rotation direction (Clockwise/Counter-Clockwise) and control of effects depends on head orientation and Pan/Tilt settings* MODE / CHANNEL VALUE FUNCTION Basic (16) Extended (19) 0-255 Pan Movement Pan Fine 0-255 Tilt Movement 0-255...
  • Page 26 DMX CHANNELS / VALUES / FUNCTIONS Features subject to change without notice *Rotation direction (Clockwise/Counter-Clockwise) and control of effects depends on head orientation and Pan/Tilt settings* MODE / CHANNEL VALUE FUNCTION Basic (16) Extended (19) Gobos Open Gobo 1 Gobo 2 10-12 Gobo 3 13-15...
  • Page 27 DMX CHANNELS / VALUES / FUNCTIONS Features subject to change without notice *Rotation direction (Clockwise/Counter-Clockwise) and control of effects depends on head orientation and Pan/Tilt settings* MODE / CHANNEL VALUE FUNCTION Basic (16) Extended (19) Prism Open 8-127 Prism 128-132 Prism Rotation Effect 1 133-137 Prism Rotation Effect 2...
  • Page 28 DMX CHANNELS / VALUES / FUNCTIONS Features subject to change without notice *Rotation direction (Clockwise/Counter-Clockwise) and control of effects depends on head orientation and Pan/Tilt settings* MODE / CHANNEL VALUE FUNCTION Basic (16) Extended (19) Prism Rotation 0-127 Index Rotation 128-190 Clockwise Rotation Fast - Slow 191-192...
  • Page 29 DMX CHANNELS / VALUES / FUNCTIONS Features subject to change without notice *Rotation direction (Clockwise/Counter-Clockwise) and control of effects depends on head orientation and Pan/Tilt settings* MODE / CHANNEL VALUE FUNCTION Basic (16) Extended (19) 0-255 Pan/Tilt Macro Speed Fast - Slow Pan/Tilt Movement Speed Fast - Slow Color Time 0-254...

  • Page 30: Specifications

    S P E C I F I C AT I O N S • 2 DMX Channel Modes: 16 or 19 DMX channels • Gobo scroll mode • LED DMX 4-Button menu system • 5-degree beam angle • Auto X-Y repositioning •...
  • Page 31 D I M E N S I O N D R A W I N G S Dimensions not to scale...
  • Page 32 FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RADIO FREQUENCY INTERFERENCE WARNINGS &...
