Wiring The Line Power - GE DigitalFlow XMT868i Startup Manual

Chapter 1. Installation
1.7 Making Electrical Connections (cont.)
Option Card Connections
Label

1.7.1 Wiring the Line Power

The Model XMT868i may be ordered for operation with power inputs of 100-120 VAC, 220-240 VAC, or 12-28 VDC.
The label on the side of the electronics enclosure lists the meter's required line voltage and power rating. Be sure to
connect the meter only to the specified line voltage.
Note: For compliance with the European Union's Low Voltage Directive, this unit requires an external power
disconnect device such as a switch or circuit breaker. The disconnect device must be marked as such, clearly
visible, directly accessible, and located within 1.8 m (6 ft) of the unit.
Note: Only use a Class 2 Rated Power supply for line power connection to a DC instrument.
Refer to Figure 10 on page 23 to locate terminal block
WARNING!
line voltage may damage the unit. It may also result in hazardous voltages at the flowcell and
associated piping as well as within the electronics enclosure.
6
Set Screw
Inside View

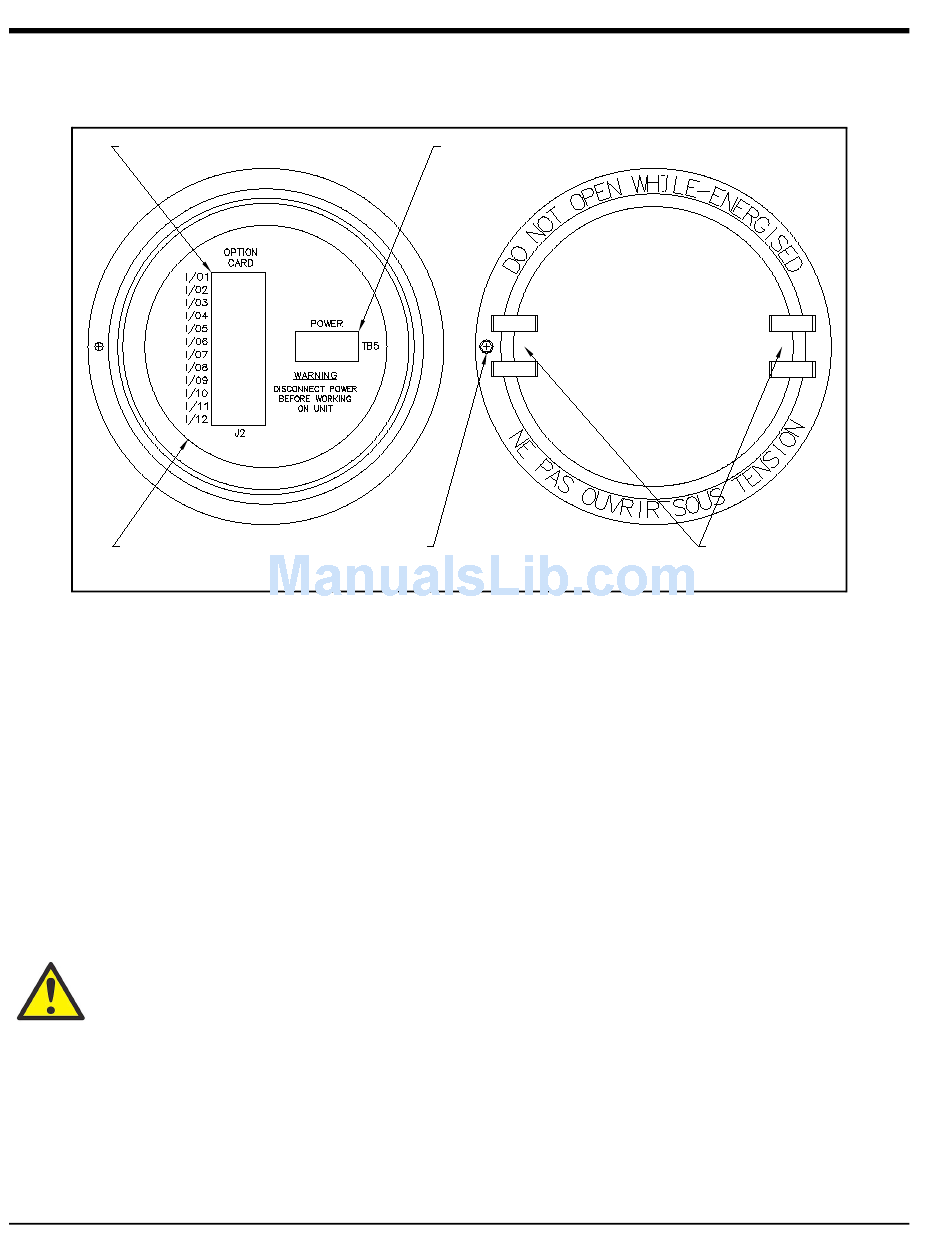

Figure 3: Rear Cover with Connection Labels
Improper connection of the line power leads or connecting the meter to the incorrect
Power Connections
Outside View
and connect the line power as follows:
TB5
Slots
