Generator Paralleling Controller, GPC-3 -
Generator Protection Unit, GPU-3/GPU-3 Hydro -
Paralleling and Protection Unit, PPU
DEIF A/S · Frisenborgvej 33 · DK-7800 Skive · Tel.: +45 9614 9614 · Fax: +45 9614 9615 · info@deif.com · www.deif.com
OPERATOR'S MANUAL
● Display and push-button functions
● Alarm handling
● Log list
Document no.: 4189340579D
SW version: 3.0X.X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPC-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deif GPC-3

Summary of Contents for Deif GPC-3

  • Page 1 ● Log list DEIF A/S · Frisenborgvej 33 · DK-7800 Skive · Tel.: +45 9614 9614 · Fax: +45 9614 9615 · info@deif.com · www.deif.com isenborgvej 33 · DK-7800 Skive · Tel.: +45 9614 9614 · Fax: +45 9614 9615 · info@deif.com · www.deif.com Document no.: 4189340579D...

  • Page 2: Table Of Contents

    4.1. Alarm handling.............................23 4.2. Log list..............................23 5. Service menu 5.1. Purpose of the service menu........................26 5.2. Entry window............................26 6. Parameter setup 6.1. Procedures for setup..........................28 6.2. Finding the selected parameter......................28 6.3. Parameter descriptions........................28 6.4. Setup..............................29 DEIF A/S Page 2 of 29...

  • Page 3: General Information

    1.1.2 Legal information and disclaimer DEIF takes no responsibility for installation or operation of the generator set. If there is any doubt about how to install or operate the engine/generator controlled by the Multi-line 2 unit, the company responsible for the installation or the operation of the set must be contacted.

  • Page 4: About The Operator's Manual

    1.2.3 Contents and overall structure This document is divided into chapters, and in order to make the structure simple and easy to use, each chapter will begin from the top of a new page. DEIF A/S Page 4 of 29...

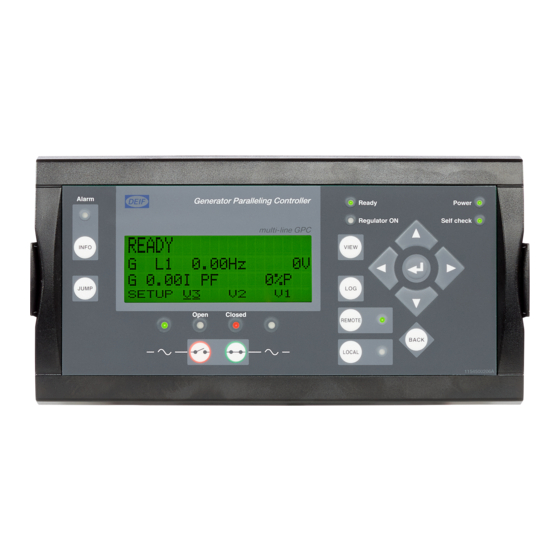

  • Page 5: Display Unit

    JUMP Open Closed REMOTE BACK LOCAL GPC – options M4 and Y1 Alarm Generator Paralleling Controller Ready Power Self check Regulator on multi-line GPC INFO VIEW JUMP Open Closed START REMOTE BACK STOP LOCAL DEIF A/S Page 5 of 29...
  • Page 6 ML-2 operators manual 4189340579 UK Display unit GPC – option Y11 DEIF A/S Page 6 of 29...

  • Page 7: Gpu

    GPU INFO VIEW JUMP Open Closed REMOTE BACK LOCAL GPU – options M4 and Y7 Alarm Generator Protection Unit Ready Power Self check multi-line GPU INFO VIEW JUMP START REMOTE BACK LOCAL STOP DEIF A/S Page 7 of 29...

  • Page 8: Gpu Hydro

    GPU Hydro INFO VIEW JUMP BACK GPU Hydro – options G2 and Y5 Alarm Generator Protection Unit Ready Power Regulator on Self check multi-line GPU Hydro INFO VIEW JUMP Open Closed REMOTE BACK LOCAL DEIF A/S Page 8 of 29...

  • Page 9: Ppu

    PPU INFO VIEW JUMP Open Closed START REMOTE BACK LOCAL STOP PPU – option Y11 Alarm Protection and Paralleling Unit Ready Power Regulator on Self check multi-line PPU INFO VIEW JUMP Open Closed BACK DEIF A/S Page 9 of 29...

  • Page 10: Display Push-Buttons And Leds

    Activates the stop sequence (only active in LOCAL mode) including cooling down. When the STOP push-button is pressed during cooling down, the cooling down time is interrupted immedi- ately and the ext. stop timer starts running. DEIF A/S Page 10 of 29...

  • Page 11: Led Functions

    LED green when local mode is active. LED off when remote or SWBD mode is active. Power: LED green indicates that the auxiliary supply is switched on. Self check: LED green indicates that the unit is OK. DEIF A/S Page 11 of 29...

  • Page 12: Lamp Test And Dimmer Functions

    The illumination intensity of the backlight and the LEDs of each display panel is adjustable by using the JUMP push-button. This adjustment is done by means of the push-buttons on the display, and the level of the adjustment will be saved in the display internal memory by pressing the ENTER push-button. DEIF A/S Page 12 of 29...

  • Page 13: Aop-2 Lamp Test And Dimmer Function

    If no further action is taken within three seconds, the AOP-2 will turn back to normal indication. To activate the dimmer function, the push-button must be pressed several times or continuously to reach the desired light intensity. DEIF A/S Page 13 of 29...

  • Page 14: Menu Systems And Structure

    It can always be reached by pressing the BACK push-button three times. The event and alarm list will appear at power up, if an alarm is present. Paralleling and Protection Unit multi-line PPU DG BLOCKED FOR START G L1 0.00Hz G 0.001 PF SETUP DEIF A/S Page 14 of 29...

  • Page 15: View Menu

    The V3 display changes with the running mode: The first display line indicates the status of the unit. The second and third display lines display power consumption in kW or percentage. This is changed by pressing the push-button. DEIF A/S Page 15 of 29...

  • Page 16: Setup Menu

    Fourth display line: (Daily use) Entry selection for the setup menu Press SELECT to select the underscored menu (Setup menu) Sub-functions for the individual parameters, for example limit DEIF A/S Page 16 of 29...
  • Page 17 BACK G 439 440 440V Increase no. Enter passw. 1999 First entry Decrease no. ENTER Increase setting G 439 440 440V 1001 G -P> Decrease setting -50.0 -5.0 0.0% Moves the cursor RESET SAVE DEIF A/S Page 17 of 29...

  • Page 18: Display Texts

    DG NOT RUNNING The generator is not running (option M4 only) GB IS CLOSED The generator breaker is closed GB IS OPEN The generator breaker is open WRONG PASSWORD Wrong password has been entered DEIF A/S Page 18 of 29...

  • Page 19: Status Texts

    Extended stop time after the running signal has disap- peared TOO SLOW 00<---------- Generator running too slow during synchronising ----------> 00 TOO FAST Generator running too fast during synchronising SWBD CONTROL SWBD control input activated DEIF A/S Page 19 of 29...

  • Page 20: Unit Operation Modes And Password

    Factory setting Access Customer Service Master Customer 2000 Service 2001 Master 2002 A parameter cannot be entered with a password that is ranking too low, but the settings can be displayed without password entry. DEIF A/S Page 20 of 29...
  • Page 21 Each parameter can be protected by a specific password level by means of the PC utility software. Enter the parameter to be configured and select the correct password level. The password level can be found in the column “Level” in the parameter view. DEIF A/S Page 21 of 29...
  • Page 22 The factory passwords must be changed, if the operator of the genset is not allowed to change the parameters. It is not possible to change the password at a higher level than the password entered. DEIF A/S Page 22 of 29...

  • Page 23: Alarm Handling And Log List

    A battery test is for example test OK or test failed. The logging of data is divided into three different groups: ● Event log containing 150 loggings ● Alarm log containing 30 loggings ● Battery test log containing 52 loggings DEIF A/S Page 23 of 29...
  • Page 24 Paralleling and Protection Unit multi-line PPU 400V Ack. alarm 2010-01-02 18:54:28.8 INFO FIRST LAST The specific alarm or event is shown in the second line, and the time stamp is shown in the third line. DEIF A/S Page 24 of 29...
  • Page 25 The first event in the list will be displayed, if the cursor is placed below FIRST and SELECT is pressed. The last event in the list will be displayed, if the cursor is placed below LAST and SELECT is pressed. push-buttons are used for navigating in the list. DEIF A/S Page 25 of 29...

  • Page 26: Service Menu

    Shows the alarm timer and the remaining time. The indicated remaining time is the minimum remaining time. The timer will count down when the set point has been exceeded. Paralleling and Protection Unit multi-line PPU 400V 1000 -P> Remaining time 5.0s UP DOWN DEIF A/S Page 26 of 29...
  • Page 27 Shows the status of the digital outputs. Paralleling and Protection Unit multi-line PPU 400V Horn Output = UP DOWN MISC (miscellaneous) Shows miscellaneous messages. Paralleling and Protection Unit multi-line PPU 400V M-Logic enabled Various = UP DOWN DEIF A/S Page 27 of 29...

  • Page 28: Parameter Setup

    Due to the character of the parameters there may be small differences between the individual tables. The first column indicates the menu number in the display. The second column indicates the name of the setting. DEIF A/S Page 28 of 29...

  • Page 29: Setup

    Enter password to change the set point. Step 6: Use the push-buttons to increase/decrease the set point setting. Step 7: Move the “underscore” to save and press SEL; the new set point setting has now been saved. DEIF A/S Page 29 of 29...
