Display modes
132
When an ASI transport stream is being monitored (WFM2300 Option ASI only),
the Video Session display shows whether or not the signal is locked.

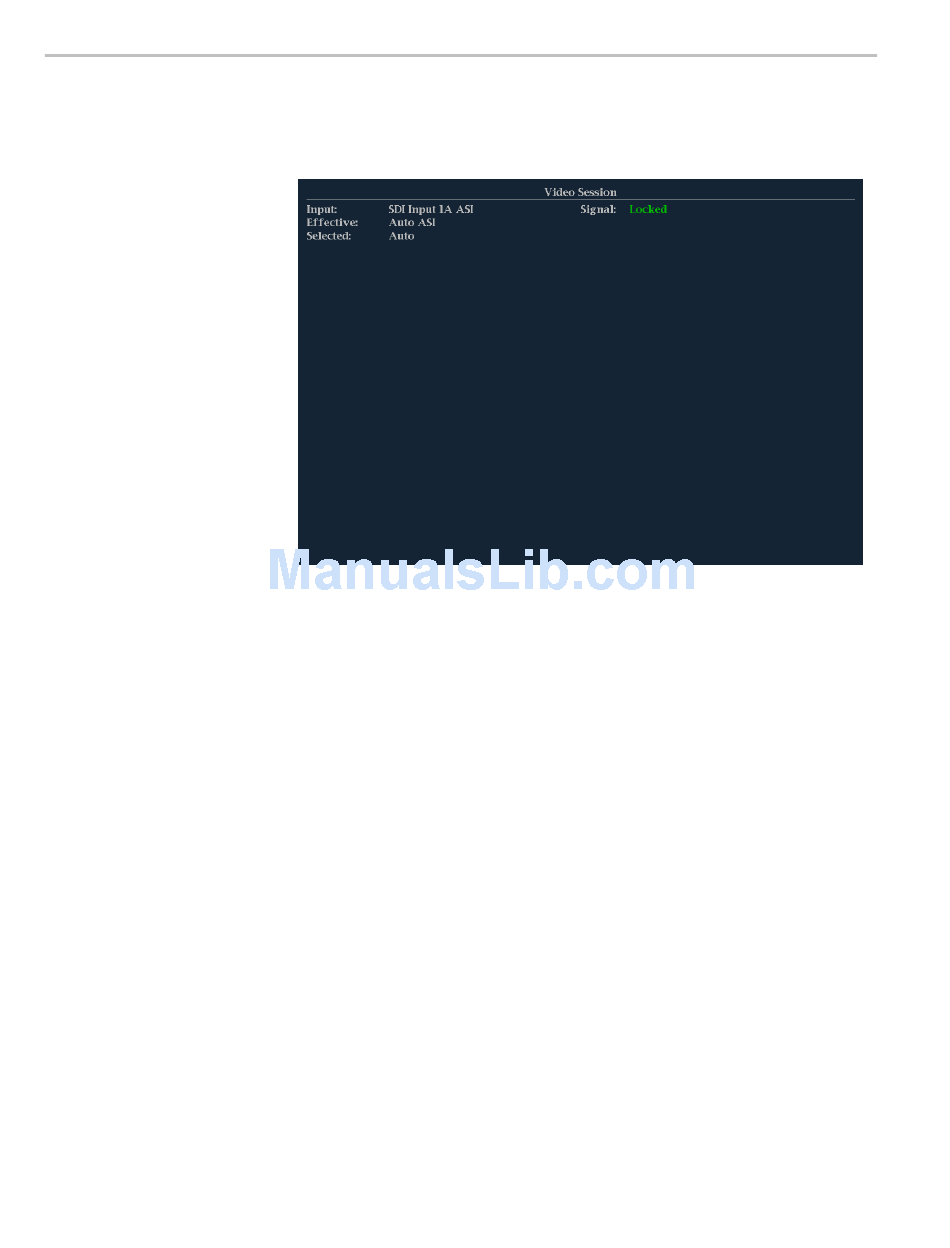

Figure 46: Video Session display of an ASI transport stream (WFM2300 Option ASI only)
WFM2300 and WFM2200A Waveform Monitors User Manual
