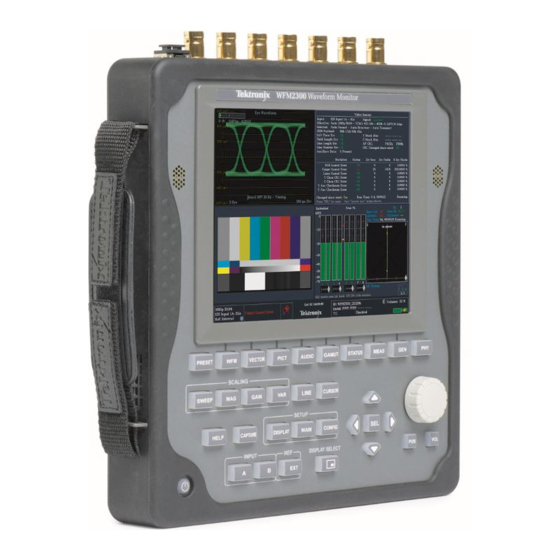

Tektronix WFM2200A Instructions Manual

Multiformat multistandart portable waveform monitor
Hide thumbs Also See for WFM2200A:

Advertisement

Quick Links

Download this manual See also: User Manual
WFM2300 and WFM2200A
xx
Multiformat, Multistandard Portable Waveform Monitors
Declassification and Security
ZZZ
Instructions
www.tektronix.com
*P077086900*
077-0869-00

Advertisement

loading
Need help?

Need help?

Do you have a question about the WFM2200A and is the answer not in the manual?

Questions and answers

Related Manuals for Tektronix WFM2200A

Summary of Contents for Tektronix WFM2200A

  • Page 1 WFM2300 and WFM2200A Multiformat, Multistandard Portable Waveform Monitors Declassification and Security Instructions www.tektronix.com *P077086900* 077-0869-00...
  • Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.

  • Page 3: Table Of Contents

    Table of Contents General safety summary ..................Service safety summary.................... Preface ......................Clear and sanitize procedures ..................Memory devices ....................Data export devices.................... Troubleshooting..................... How to clear or sanitize a nonfunctional instrument............WFM2300 and WFM2200A Declassification and Security Instructions...
  • Page 4 Table of Contents WFM2300 and WFM2200A Declassification and Security Instructions...

  • Page 5: General Safety Summary

    Recharge battery pack properly. Recharge the battery pack only for the recommended charge cycle at the recommended temperature. Use proper battery charger. Use only the WFM2200A or WFM2300 waveform monitor or the WFM200BC external battery charger to charge the WFM200BA battery pack.
  • Page 6 DANGER indicates an injury hazard immediately accessible as you read the marking. WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. The following symbol(s) may appear on the product: WFM2300 and WFM2200A Declassification and Security Instructions...

  • Page 7: Service Safety Summary

    Use care when servicing with power on. Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. To avoid electric shock, do not touch exposed connections. WFM2300 and WFM2200A Declassification and Security Instructions...

  • Page 8: Preface

    WFM2300 (Options 3G and DATA) Related documents The following table lists the documentation that is available for the products and shows where you can find it: in a printed manual or on the Tektronix Web site. Table i: Product documentation Item...
  • Page 9 Provides safety, operating, and recycling information Pack Instructions for the Lithium-Ion battery pack. at www.tektronix.com/manuals WFM200BC External Battery Provides safety and operating information for the Printed manual and also available Charger Instructions optional, external battery charger. at www.tektronix.com/manuals WFM2300 and WFM2200A Declassification and Security Instructions...
  • Page 10 Scrub. This is equivalent to sanitize. User-modifiable. The user can write to the memory device during normal instrument operation, using the instrument interface or remote control. Volatile memory. Data is lost when the instrument is powered off. viii WFM2300 and WFM2200A Declassification and Security Instructions...

  • Page 11: Clear And Sanitize Procedures

    Directly – Describes how data is modified. It means that the user can modify the data. Indirectly – Describes how data is modified. It means that the instrument system resources modify the data and that the user cannot modify the data. WFM2300 and WFM2200A Declassification and Security Instructions...
  • Page 12 User Written by Indirectly FPGA None Remove 256 MB Buffer data microprocessor board, U5 the power for DSY system source FPGA from the instrument for at least 20 seconds During normal instrument operation. WFM2300 and WFM2200A Declassification and Security Instructions...
  • Page 13 Procedure instrument (See page 4.) state PLD, Glue Control None Indirectly Programmed Main board, None Reload the logic by software system after software per software the loading upgrade instructions During normal instrument operation. WFM2300 and WFM2200A Declassification and Security Instructions...
  • Page 14 “000.000.000.000” for the IP address. 4. Repeat Step 3 for the Subnet Mask, Gateway Address, and SNMP Trap Address 1 through SNMP Trap Address 4. 5. Press the CONFIG button to exit the configuration menu. WFM2300 and WFM2200A Declassification and Security Instructions...

  • Page 15: Data Export Devices

    3. Press the CONFIG button to exit the configuration menu. Enable Ethernet and SNMP To enable Web and SNMP access, perform the Disable Web and SNMP Procedure above, but select On to enable each protocol. access procedure WFM2300 and WFM2200A Declassification and Security Instructions...
  • Page 16 Clear and sanitize procedures WFM2300 and WFM2200A Declassification and Security Instructions...

  • Page 17: Troubleshooting

    How to clear or sanitize a nonfunctional instrument To sanitize a nonfunctional instrument, you must remove the Main board and return the instrument to Tektronix for the installation of a new Main board. Required equipment You will need the following equipment to remove the Main board from the...
  • Page 18 8. Place the instrument face down on your work surface, and then lift the rear chassis off of the instrument. CAUTION. To prevent damage to the front panel knob, do not put excessive weight on the instrument while it is face down during the disassembly process. WFM2300 and WFM2200A Declassification and Security Instructions...
  • Page 19 Troubleshooting 9. Remove the four screws securing the heat spreader, and then lift the heat spreader out of the instrument. WFM2300 and WFM2200A Declassification and Security Instructions...
  • Page 20 Main board. Although the connector is on the bottom side of the FPGA board, you can see the rows of soldered connector pins on the top side of the board. WFM2300 and WFM2200A Declassification and Security Instructions...
  • Page 21 To protect the circuit board from damage, place the FPGA board in an anti-static bag after you remove the board. The FPGA board will not be able to be reinstalled after the Main board is removed. WFM2300 and WFM2200A Declassification and Security Instructions...
  • Page 22 Troubleshooting 12. Disconnect the fan cables. 13. Remove the six screws securing the fan bracket assembly, and then lift the fan bracket assembly from the instrument chassis. WFM2300 and WFM2200A Declassification and Security Instructions...
  • Page 23 15. Remove the four standoffs and five screws securing the Main board, and then lift the Main board from the instrument chassis. 16. As necessary for your installation, safely store or destroy the Main board. WFM2300 and WFM2200A Declassification and Security Instructions...
  • Page 24 Package the remaining loose components in separate bags to prevent damage during shipment. 4. If possible, ship the instrument to Tektronix using the original packaging. The bags containing the loose components should fit into the top tray of the original packaging.
