Note: All cabling and wire must be UL Listed and/or Recognized wire suitable for their application.
6. Connect structured cables from port marked [OUT] on NetWay to PoE compliant camera/edge
devices (Fig. 1a, pg. 3, Fig. 5, pg. 5).
Note: For UL294 applications, the products are to be tested as part of a complete Access Control System and in
accordance with UL Listed Access Control Devices.
Note: All interconnected devices must be UL Listed.
7. Upon completion of wiring set illuminated master power disconnect circuit breaker to the RESET (ON)
position (Fig. 1d, pg. 3).
8. Port status LEDs on the NetWay will initialize when PoE devices are connected as follows:
- LED will illuminate when devices are IEEE 802.3af compliant.
- LED will blink once and illuminate when devices are IEEE 802.3at compliant (PoE+).
Port Status
All Ports Off
Port Off
Port On
Class 4 detection Port
Non-compliant Device
Port Overload Fault
4 Port Overload Grouped
8 Port Overload Grouped

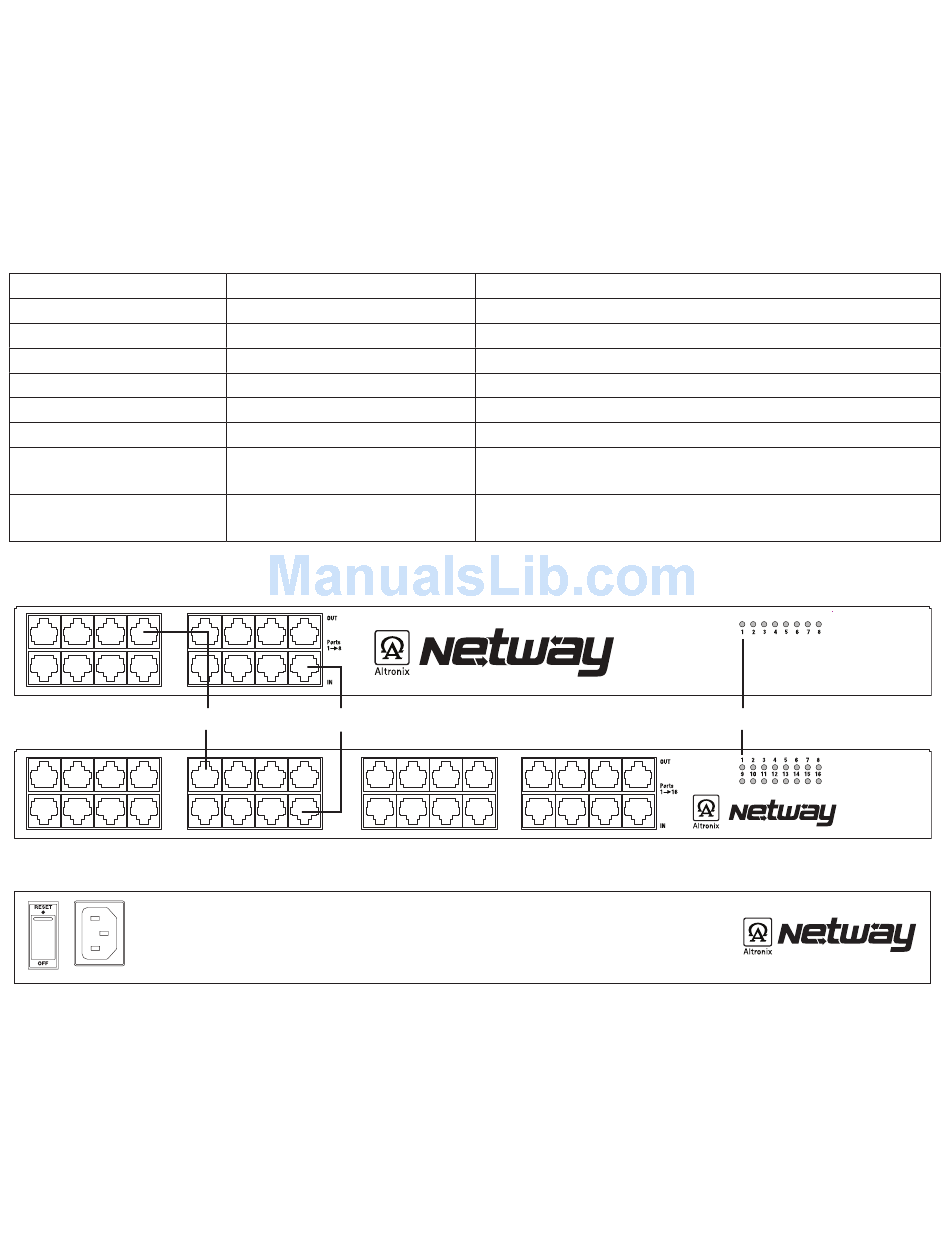

Fig. 1
NetWay8 - Front Panel
NetWay16 - Front Panel
NetWay8 & NetWay16 - Rear Panel
AC POWER
1e
1d
1a OUT 1-8 (NetWay8), OUT 1-16 (NetWay16): Structured cable to PoE compliant cameras/edge devices.
1b IN 1-8 (NetWay8), IN 1-16 (NetWay16): Structured cable to ethernet switch or video server.
1c LED(s) 1-8 (NetWay8), 1-16 (NetWay16): Port status LEDs.
1d Illuminated master power disconnect circuit breaker (switch):
• OFF position Circuit breaker tripped Switch not illuminated.
• RESET (ON) position Switch illuminated.
1e IEC 320 Connector: 115VAC 60Hz (grounded line cord included).
NetWay8/NetWay16
Port Status and LED Flash Codes:
Flash Codes
Sequential LED Port Scan
OFF
ON
Blinks 2 times
2Hz
5Hz
5Hz
5Hz
1a 1b
Description
No devices connected
LED OFF
LED ON
Enables power to PoE devices.
Will prevent port from turning on.
Will prevent port from turning on.
4 LEDs
Will prevent ports from turning on.
LED's 1-8 Power Supply Overload for ports 1-8.
LED's 9-16 Power Supply Overload for ports 9-16.
1c
- 3 -
