9. Partner group only: Connect the interconnect cables to the interconnect cards as
shown in
FIGURE 6-5
Make sure you connect the cables to the correct interconnect card connectors exactly
as shown in the figure. This cable connection determines the master and alternate
master relationship. Tighten the retaining screws.
The remaining connectors are reserved for expansion units.
Alternate master
controller unit
Master controller unit

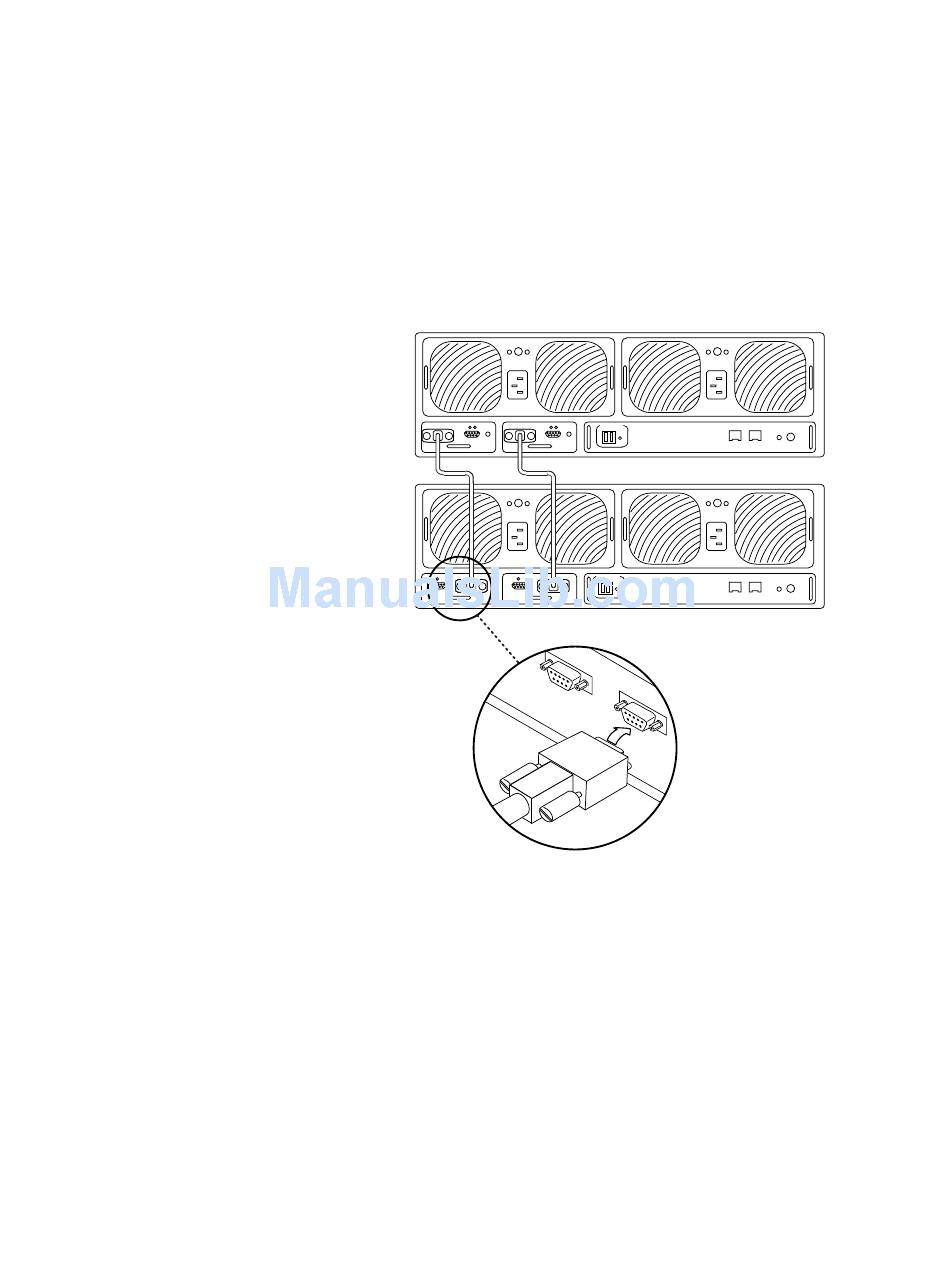

Connecting the Interconnect Cables
FIGURE 6-5
.
Chapter 6 Array Installation 69
